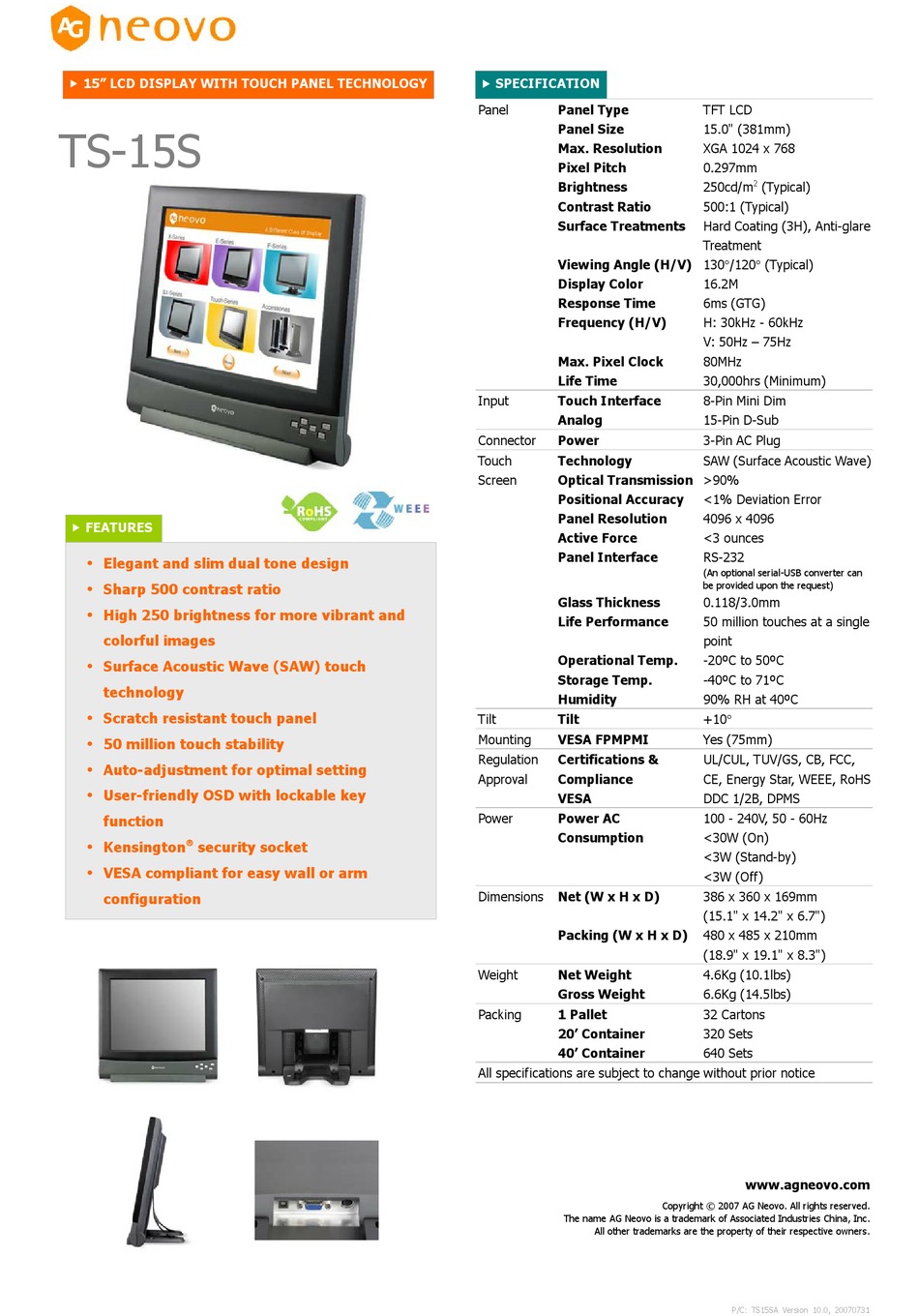

AG Neovo Neovo Touch Series TS-15S Specification Sheet

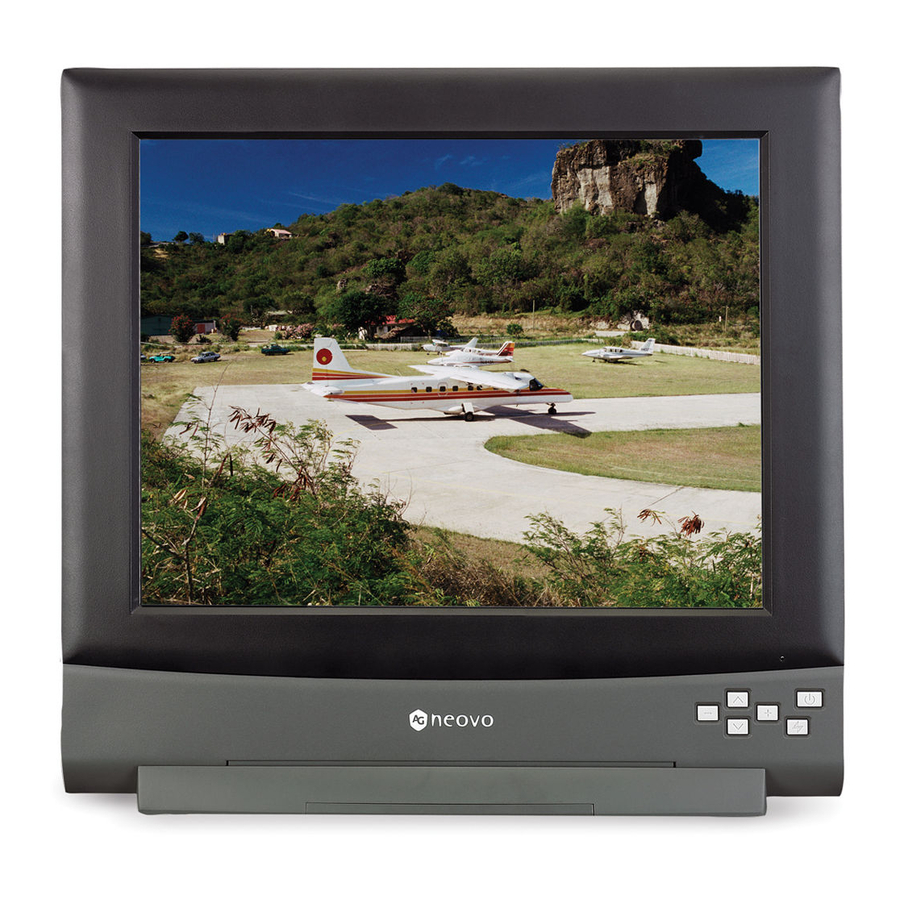

15" LCD DISPLAY WITH TOUCH PANEL TECHNOLOGY
TS-15S
FEATURES
Elegant and slim dual tone design
Sharp 500 contrast ratio
High 250 brightness for more vibrant and
colorful images
Surface Acoustic Wave (SAW) touch
technology
Scratch resistant touch panel
50 million touch stability
Auto-adjustment for optimal setting
User-friendly OSD with lockable key
function

Kensington security socket
VESA compliant for easy wall or arm
configuration
SPECIFICATION
Panel Panel Type
Panel Size
Max. Resolution
Pixel Pitch
Brightness
Contrast Ratio
Surface Treatments
Viewing Angle (H/V) 130°/120° (Typical)
Display Color
Response Time
Frequency (H/V)
Max. Pixel Clock
Life Time
Input Touch Interface
Analog
Connector Power
Touch Technology
Screen Optical Transmission >90%
Positional Accuracy
Panel Resolution
Active Force
Panel Interface
Glass Thickness
Life Performance
Operational Temp.
Storage Temp.
Humidity
Tilt Tilt
Mounting VESA FPMPMI
Regulation Certifications &
Approval Compliance
VESA
Power Power AC
Consumption
Dimensions Net (W x H x D)
Packing (W x H x D)
Weight Net Weight
Gross Weight
Packing 1 Pallet
20' Container
40' Container
All specifications are subject to change without prior notice
The name AG Neovo is a trademark of Associated Industries China, Inc.
All other trademarks are the property of their respective owners.
TFT LCD
15.0" (381mm)
XGA 1024 x 768
0.297mm
250cd/m 2 (Typical)
500:1 (Typical)
Hard Coating (3H), Anti-glare
Treatment
16.2M
6ms (GTG)
H: 30kHz - 60kHz
V: 50Hz – 75Hz
80MHz
30,000hrs (Minimum)
8-Pin Mini Dim
15-Pin D-Sub
3-Pin AC Plug
SAW (Surface Acoustic Wave)
<1% Deviation Error
4096 x 4096
<3 ounces
RS-232
(An optional serial-USB converter can
be provided upon the request)
0.118/3.0mm
50 million touches at a single
point
-20ºC to 50ºC
-40ºC to 71ºC
90% RH at 40ºC
+10°
Yes (75mm)
UL/CUL, TUV/GS, CB, FCC,
CE, Energy Star, WEEE, RoHS
DDC 1/2B, DPMS
100 - 240V, 50 - 60Hz
<30W (On)
<3W (Stand-by)
<3W (Off)
386 x 360 x 169mm
(15.1" x 14.2" x 6.7")
480 x 485 x 210mm
(18.9" x 19.1" x 8.3")
4.6Kg (10.1lbs)
6.6Kg (14.5lbs)
32 Cartons
320 Sets
640 Sets
www.agneovo.com
Copyright © 2007 AG Neovo. All rights reserved.
P/C: TS15SA Version 10.0, 20070731
