WELCOME to the Hergóm family.
We thank you for the trust you have placed in us by

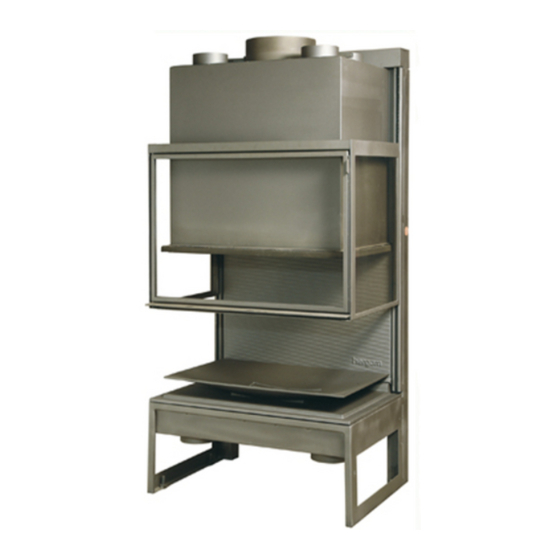

choosing our Hergóm mod. HV-2007 fireplace which in terms
of technology and design represents an important advance
from standard wood burning fireplaces.
We are certain that your new fireplace will bring you a
great deal of pleasure, which is the biggest incentive for our
team.
Owning a Hergóm mod. HV-2007 is a demonstration of an
exceptional sense of quality.
Please read the entire manual. Its purpose is to
familiarise you with your stove, explaining the instructions for
installing, using and maintaining it, which will be very useful.
Keep the manual and refer to it when needed. If after reading
this manual you need any additional clarification, please do
not hesitate to contact your supplier or call the factory
directly.
IMPORTANT NOTICE: if your cooker is not properly
installed it will not give the excellent service it was designed
for. Read all of the instructions and entrust the work to a
specialist
Industrias Hergóm, S.A. is not responsible for the
damages caused by alterations to its products, unless authorised
in writing, or for the damages caused by defective installation.
It also reserves the right to modify its products without prior
notice.
Industrias Hergóm, S.A, of Soto de la Marina, Cantabria, Spain,
offers a TWO YEAR guarantee for its appliances.
The geographical area covered by this guarantee only includes
the countries in which Industrias Hergóm, S.A. has an affiliated
company or official importer distributing its products and in
which EC Directive 1999/44/EC is enforceable.
The guarantee is valid from the day of purchase of the appliance
indicated on the receipt for the guarantee and only covers wear
and tear or faults caused by manufacturing defects.
14

Advertisement

Table of Contents
loading

Summary of Contents for hergom HV-2007

  • Page 1 We are certain that your new fireplace will bring you a great deal of pleasure, which is the biggest incentive for our team. Owning a Hergóm mod. HV-2007 is a demonstration of an exceptional sense of quality. Please read the entire manual. Its purpose is to familiarise you with your stove, explaining the instructions for installing, using and maintaining it, which will be very useful.
  • Page 2: Specifications

    • The four air outlets allow tubes to be connected in order to direct the natural convection of hot air to the room in which the HV-2007 is installed through the hood of the fireplace or by means of the fan which is provided as an accessory,...
  • Page 3: Installation

    II.- INSTALLATION How the FIREPLACE is installed will be integral to its safety and good working order. It is very important that the fireplace is properly installed. A safe installation of the FIREPLACE and the chimney can be difficult and it is advisable to entrust the work to a professional.
  • Page 4 Liveliness of the fire. The hotter the fire, the stronger the draught. Cracks in the chimney, a badly sealed or dirty door, entry of air at tube joints, another device connected to the chimney etc. can cause inadequate draughts. 2.1.2. Formation of creosote and cleaning. When wood is burned slowly, tars and other organic vapours can accumulate in the flue which when combined with the atmospheric humidity form the creosote.
  • Page 5 2.1.4. Some rules. Below are some rules to follow when building the chimney. Use resistant and incombustible materials. Do not use fibre cement. Choose a route which is as vertical and straight as possible and do not connect several appliances to the same chimney. Ensure that the flue does not come out into an area near buildings;...
  • Page 6 It is very important for the joints between tubes to be well sealed in order to close off potential cracks that would allow air to enter. To ensure the chimney is airtight proceed as follows: - Cover the outlet on the roof. - Place paper and damp straw in the lower part of the chimney and ignite.
  • Page 7 Clean the chimney at least once a year. The most effective cleaning method for the chimney ducts is using appropriate chimney brushes. There are chemical products which help to postpone the need for cleaning with brushes. The brushes must be as close as possible in size to the diameter of the chimney. The joints between the tubes making up the chimney, in the event of being simple metal tubes, must be sealed with fireproof filler.
  • Page 8 IV.- ACCESSORIES INDUSTRIAS HERGOM, SA supplies casings of stone and marble as especially prefabricated accessories for this model, and a motor fan for forced convection. VERSION ‘A’ VERSION ‘B’...
  • Page 9: Cleaning And Maintenance

    V.- PRESERVATION PRODUCTS INDUSTRIAS Hergóm, S.A. places at your disposal a number of products for preserving your fireplace: - Anti-soot: a powerful catalyst which favours the elimination of unburned waste. - Firelighter cubes: an essential product for lighting the fire quickly and cleanly.
  • Page 10: Forced Convection

    VIII.- SAFETY There are certain risks which must be taken into account when starting to use your solid fuel burning FIREPLACE, whatever the model. These risks can be minimised by following the instructions and recommendations provided in this manual. Below we provide a number of rules and recommendations, but above all we advise you to use common sense: 1.
  • Page 11: Technical Information

    IX.- TECHNICAL INFORMATION Recommended Fireplace measurements (mm) Weight Draught Power Chimney measurements height Sheet steel Brickwork (metres) Height Width length (Kg) (m.c.a.) (Kcal/h) tube tube 1500 8000 250x250 5-6*...
