HITACHI
COLOR MONITOR
USER MANUAL

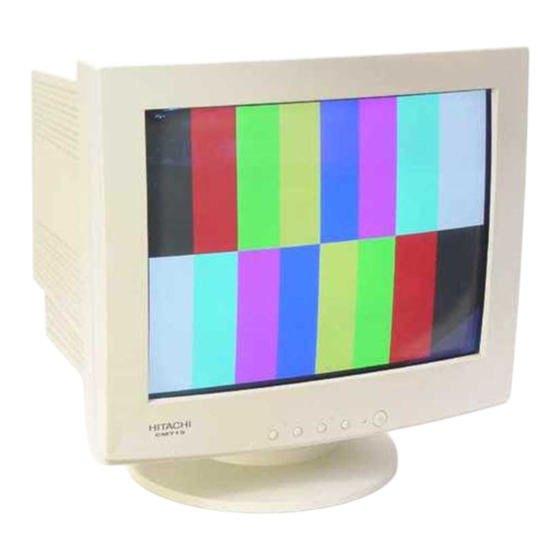

CM715U
MANUAL D'UTILISATION
READ THE INSTRUCTIONS INSIDE CAREFULLY.
KEEP THIS USER MANUAL FOR FUTURE REFERENCE.
For future reference, record the serial number of your color monitor.
SERIAL NO.
The serial number is located on the rear of the monitor.
(R)
This monitor is E
compliant when used with a
S
NERGY
TAR
computer equipped with VESA DPMS.
(R)
The E
S
emblem does not represent EPA endorsement
NERGY
TAR
of any product or service.
(R)
As an E
Partner, Hitachi, Ltd. has determined that this
S
NERGY
TAR
product meets the E
S
guidelines for energy efficiency.
NERGY
TAR®
Advertisement
Table of Contents
Related Manuals for Hitachi CM715U
Summary of Contents for Hitachi CM715U
- Page 1 VESA DPMS. The E emblem does not represent EPA endorsement NERGY of any product or service. As an E Partner, Hitachi, Ltd. has determined that this NERGY product meets the E guidelines for energy efficiency. NERGY TAR®...
-
Page 2: Table Of Contents
Table of Contents Introduction ..............2 Features Package Overview Cautions ..............3 FCC Statement Warning ..........5 For the Customers in the UK ......... 7 For USA Customers Only Limited Warranty....8 For Canadian Customers Only Warranty Policy ....9 Installation..............1 0 User Controls ............11 OSD Function Description...........12 OSD Icon Summary .......... -
Page 3: Introduction
INTRODUCTION Congratulations on your purchase of this high performance 19" monitor. Using state-of-the-art electronics, this monitor can support a resolution 1600 x 1200. The on-screen display allows you to customize the settings to suit your individual needs. Features 19-inch monitor with a large, 350 x 260 mm viewable screen for comfortable viewing. -
Page 4: Cautions
CAUTIONS NEVER REMOVE THE REAR COVER ! The rear cover MUST be removed only by authorized service personnel. This color monitor contains high voltage components. THE RECEPTACLE SHOULD BE CLOSE TO THE MONITOR AND EASILY ACCESSIBLE ! INSTALL THE UNIT IN A SUITABLE ENVIRONMENT ! DO NOT expose this monitor to rain or moisture to prevent electric shock or fire hazard. - Page 5 CAUTION for 200 - 240V operation only This equipment relies on the protective devices in the building installation for short-circuit and over- current protection. Refer to the following table for the suitable number and location of the protective devices which should be provided in the building installation. Informative examples of protective devices in single - phase equipment or sub - assemblies Protection...
-
Page 6: Fcc Statement Warning
CAUTIONS (Continued) FCC Statement Warning WARNING : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 7 For the Customers in CANADA NOTICE : This Class B digital apparatus complies with Canadian ICES-003.
-
Page 8: For The Customers In The Uk
CAUTIONS (Continued) For the Customers in the UK THIS PRODUCT IS SUPPLIED WITH A TWO PIN MAINS PLUG FOR USE IN MAINLAND EUROPE. FOR THE UK PLEASE REFER TO THE NOTES ON THIS PAGE. IMPORTANT FOR UNITED KINGDOM WORDING FOR CLASS EQUIPMENT INSTRUCTION BOOKS AND LABELS The mains lead on this equipment is supplied with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. -
Page 9: For Usa Customers Only Limited Warranty
For USA Customers only Limited Warranty Nissei Sangyo America, Ltd. Warrants this Hitachi color monitor or be free from defects in mate- rial and workmanship for 36-month from the date you purchased it from your authorized Nissei Sangyo America dealer. In the event of a defect during this 36-month period, Nissei Sangyo America will, at its option, repair or replace the monitor at no charge except as set forth below. -
Page 10: For Canadian Customers Only Warranty Policy
Company is authorized to change, modify, or extend its terms in any manner whatsoever. Hitachi (HSC) Canada Inc. shall not be responsible for any damages or loss of any kind attrib- uted to the product rendered defective during usage, or attributed to incompatibility problems of any linked equipment including software. -
Page 11: Installation
INSTALLATION 1. Connect the monitor signal cable to the 15-pin mini D-sub (VGA) on the computer. 2. Connect the power cord to the power connector on the back panel of the monitor, then plug the other end into an appropriately grounded electrical outlet that is easily accessible and close to the monitor. -
Page 12: User Controls
USER CONTROLS Power button Power LED Indicator LED Color State Turns monitor on and off. Green Yellow Sleep Select button & Adjustments For adjusting the display For selecting OSD parameters in the selected functions. function. -
Page 13: Osd Function Description
OSD FUNCTION DESCRIPTION Press any button to display the OSD Menu. To select function, press the button. To adjust function, press the button. To exit the OSD menu, select the Exit icon, then press the button once. -
Page 14: Osd Icon Summary
OSD ICON SUMMARY Icon Function Function Description Brightness Adjusts display brightness Contrast Adjusts display contrast H. Size Increases and decreases screen width H. Position Shifts display image right or left V. Size Increases and decrease screen height V. Position Shifts display image up or down Pin Balance Adjusts the curve of the entire image left or right Pincushion... -
Page 15: Specifications
SPECIFICATION Screen Size 19" CRT Horizontal dot pitch 0.22 mm Horizontal mask pitch 0.21 mm Surface Non-glare Viewable Image Area (mm) 350 x 260 Input Signal Video Sync. RGB Analog 0.7Vp-p / 75 Ohm a. Separate H/V, TTL (+/-) b. Composite H+V, TTL (+/-) Sanning Frequency Horizontal (KHz) 30 - 95... -
Page 16: Troubleshooting
TROUBLESHOOTING The following are solutions to common installation problems. If the symptom remains after trying the suggested solutions, please contact HITACHI technical support or refer to www.hitachidisplays.com for additional service and support information. Problem: Power LED is not lit when monitor is powered on. - Page 17 Pre-Sales Support : 1- 800- 441- 4832 Technical Support : 1- 800- 536- 6721 World Wide Web Home page : http://www.hitachidisplays.com In Canada : 1 - 800 - HITACHI or 905 - 821 - 4545 World Wide Web Home page : http://www.hitachi.ca All Rights...
