Summary of Contents for Horizon Hobby E-Flite EFL8850

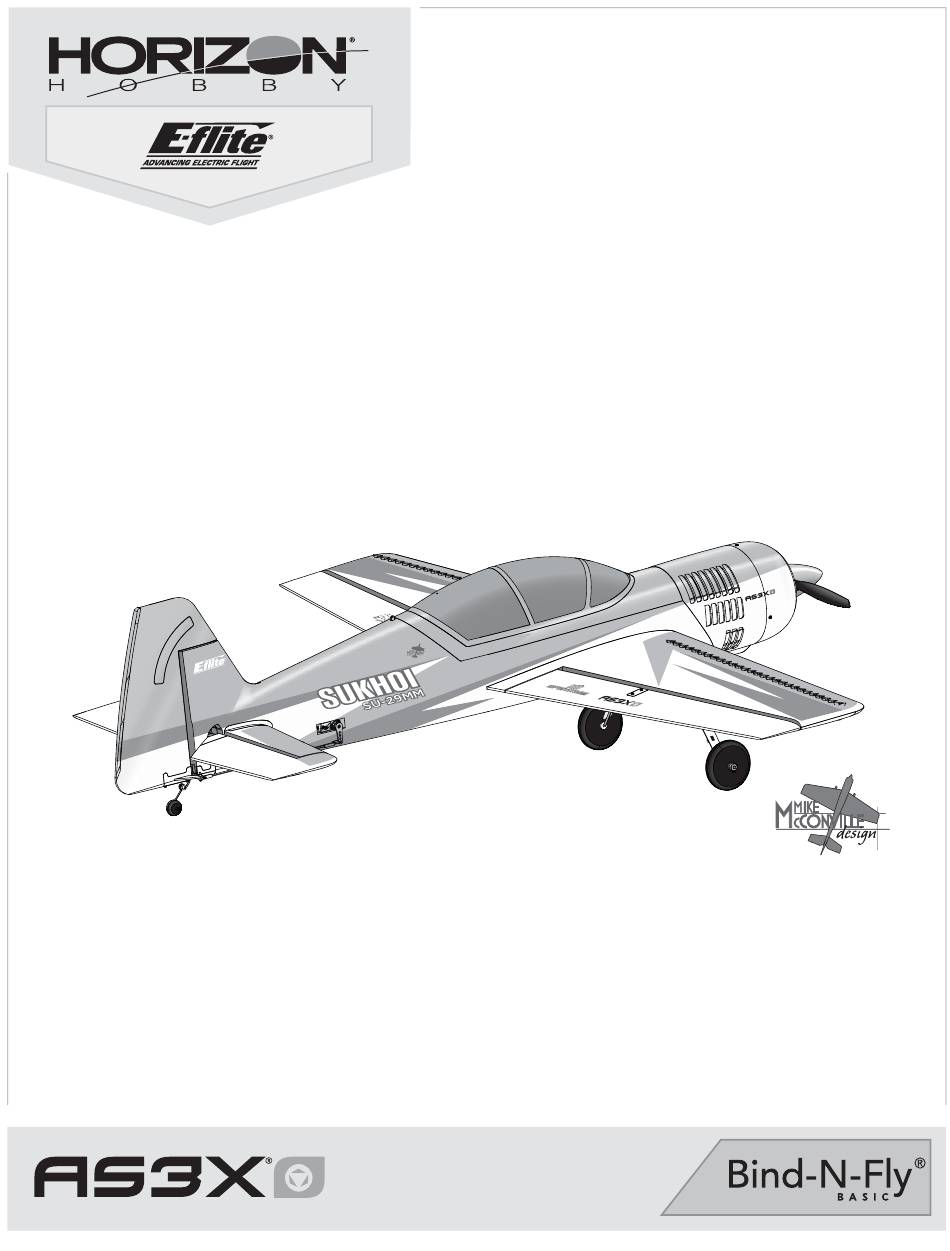

- Page 1 Sukhoi SU-29MM (Gen 2) Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni...
- Page 2 Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warn- ings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
-
Page 3: Table Of Contents
Box Contents Quick Start Information Panic Choose to fl y your aircraft with the Panic Feature feature ON or OFF and bind accordingly. Using the If you choose to fl y with the Panic Panic feature ON, you will need to follow the transmitter setup section of this manual. -
Page 4: Transmitter And Receiver Binding / Switching On And Off Panic Recovery Feature
Transmitter and Receiver Binding / Switching ON and OFF Panic Recovery Feature ™ This product requires an approved Spektrum DSM2 ® /DSMX ® compatible Switching ON Panic Feature Binding Sequence transmitter. Visit www.bindnfl y.com for a complete list of approved transmitters. The aircraft has an optional panic feature, which can be switched ON or OFF easily by binding in a specifi... -
Page 5: Transmitter Setup
Transmitter Setup If you intend on using the Panic Recovery feature, it is important to follow this Computerized Transmitter Setup transmitter setup chart to assign your transmitter switches correctly to operate (DX6i, DX6, DX7, DX7S, DX8, DX8G2, DX9, DX10t, DX18 and DX20) the Panic Recovery feature. -
Page 6: Model Assembly
Model Assembly Landing Gear Installation 1. Install the landing gear strut (A) as shown. 2. Install the U-cover (B) on the fuselage. 3. Install the fairings (C) on the strut. 4. Secure the landing gear assembly by using 4 screws (D). Tip: Carefully support the aircraft while installing or removing screws. - Page 7 Model Assembly Continued Horizontal Tail Installation 1. Slide the horizontal tail tube (A) into the hole in the rear of the fuselage. 2. Install the left and right horizontal tails (B) onto the fuselage as shown. Ensure the control horn faces down. 3.
-
Page 8: Control Horn And Servo Arm Settings
Control Horn and Servo Arm Settings The table to the right shows the factory settings for the control horns and servo Arms arms. Fly the aircraft at factory settings before making changes. NOTICE: If control throws are changed from the factory settings, the AR636 gain values may need to be adjusted. -
Page 9: Center Of Gravity (Cg)
Center of Gravity (CG) The CG location is 82mm back from the leading edge of the wing at the root. For fi rst fl ights, install the recommended fl ight battery all the way forward. Secure the battery with the strap as shown. Aircraft CG and weight is based on an E-fl... -
Page 10: As3X Control Direction Test
AS3X Control Direction Test This test ensures that the AS3X ® control system is functioning Aircraft AS3X Reaction properly. movement Assemble the aircraft and bind your transmitter to the receiver before performing this test. 1. Raise the throttle just above 25%, then lower the throttle to activate AS3X technology. -
Page 11: Flying Tips And Repairs
Flying Tips and Repairs Consult local laws and ordinances before choosing a fl ying location. at the same time. When the aircraft touches down, reduce back pressure on the elevator stick to prevent the plane from becoming airborne again. Range Check your Radio System Keep the throttle on until the aircraft is ready to fl... -
Page 12: Motor Service
Motor Service CAUTION: Always disconnect the fl ight battery from the aircraft before Assembly removing the propeller. Assemble in reverse order. Disassembly 1. Remove the screw (A) and spinner (B) from the collet (C). • Correctly align and connect the motor wire colors with the ESC wires. 2. -
Page 13: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Throttle not at idle and/or throttle trim too high Reset controls with throttle stick and throttle trim at lowest setting Aircraft will not re- Throttle servo travel is lower than 100% Make sure throttle servo travel is 100% or greater spond to throttle but responds to other Throttle channel is reversed... -
Page 14: Ama National Model Aircraft Safety Code
AMA National Model Aircraft Safety Code Effective January 1, 2014 A. GENERAL B. RADIO CONTROL A model aircraft is a non-human-carrying aircraft capable of sustained fl ight 1. All pilots shall avoid fl ying directly over unprotected people, vessels, in the atmosphere. It may not exceed limitations of this code and is intended vehicles or structures and shall avoid endangerment of life and property exclusively for sport, recreation, education and/or competition. -
Page 15: Limited Warranty
Product, (iv) attempted service by copy of your original sales receipt must be included for warranty consideration. anyone other than a Horizon Hobby authorized service center, (v) Product not Be sure your name, address, and RMA number are clearly written on the purchased from an authorized Horizon dealer, or (vi) Product not compliant outside of the shipping carton. -
Page 16: Contact Information
Compliance Information for the European Union EFL Sukhoi SU-29MM BNF Basic (EFL8850) EU Compliance Statement: Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provi- sions of the R&TTE and EMC Directive. -
Page 17: Replacement Parts
Replacement Parts • Ersatzteile • Pièces de rechange • Pezzi di ricambio Part # | Nummer Description Beschreibung Description Descrizione Numéro | Codice SU-29MM (Gen 2) - Planche de EFL8802 Decal Set: SU-29MM (Gen 2) Dekorbogen: SU-29MM (Gen 2) Set adesivi: SU-29MM (Gen 2) décoration EFL8808 Spinner: SU-29MM (Gen 2) - Page 18 E-fl ite, AS3X, DSM, DSM2, DSMX, the DSMX logo, Bind-N-Fly, SAFE, Z-Foam, ModelMatch, Dynamite, EC3, Prophet and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
