LED Group ROBUS R8EMLED Instructions

Specification:
Installation:
1. Please note the requirement to dispose of Waste Electrical & Electronic Equipment separately from household waste (WEEE
marked with crossed out wheelie bin symbol).
2. Please consider your role in contributing to re-use and recycling by returning this product at end of life to a collection centre
for waste electrical equipment or a Civic Amenity site, or to a retail outlet from which you are purchasing a replacement.
3. This equipment may contain substances that are hazardous to health and the environment if disposed of carelessly. It is
important that it is separated from normal household waste and recycled in the WEEE chain
4. The "crossed out wheelie bin symbol" on a product indicates this equipment must not be disposed of in normal household
waste, but should be disposed of according to local WEEE regulations
The Installation must be carried out by an electrician
LED Group
Western Retail Park
Nangor Road
Dublin 12
Ireland
Issue 1 281212
R8EMLED

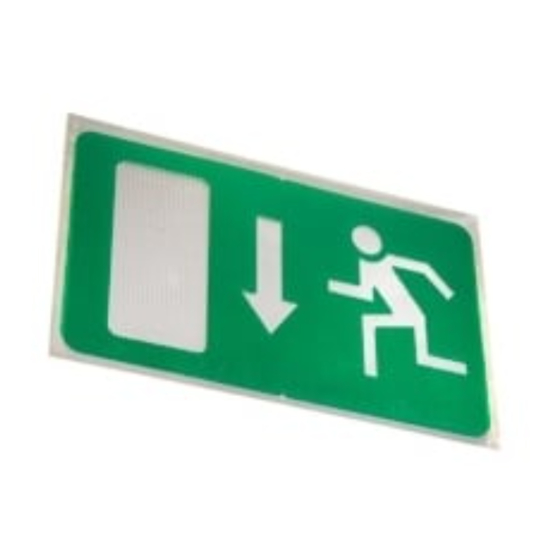

LED Maintained Eixt Box,IP20,White
Please read instructions before commencing installation and
retain for future reference.
Model No.
Operating mode
Lamp
Dimensions
Weight
Insulation
Supply voltage
Discharge Duration
Battery
Battery Life
Operating ambient temperature
Case materials
Connection:
Suitable for mounting on a normally flammable surface
Green LED indicator indicates battery charging mode
Safety and performance in accordance with EN55015, EN61547,EN60598-1,
EN60598-2-22 , EN61000-3-2, EN61000-3-3
Suitable for Indoor use, wall mounted
! Electrical products can cause death or injury, or damage to property. If in any doubt about
the installation or use of this product, consult a competent electrician.
1. Ensure mains supply is switched off before commencing installation.
2. Remove front panel and metal panel on the side from the body.
3. Mark appropriate fixing points on wall; check that fixings will not impinge on
concealed cables of pipes before drilling holes.
4. Introduce supply cable. ( Normally, the emergency fitting must be
powered from the lighting circuit feed)
5. Fix luminaire to the wall/ceiling using suitable screws.
6. Write installation date on battery and connect battery
7. Connect wires from unswitched supply to terminals on gear tray, brown to L,Blue to N
and green/yellow to earth (Non Maintained)； In the maintained emergency unit: for
LEDs always on , link terminal "Ls" to terminal "L",install control switch between Ls
and L.
Note: if both "Ls" terminal not connected, fitting works as non-maintained.
8. Refit appropriate panel.
9. Switch on supply: In the non-maintained unit the green LED should come on indicating
correct battery charge has started. The LEDs only lights if the mains supply fails.
In the maintained unit, the green LED will come on indicating correct battery charge
has started and the LEDs will lights (if switched live on). When supply to the
unswitched live is lost, battery will operate LEDs in emergency mode.
Information for the Product user
Tel: +353 1 7099000
Fax: +353 1 7099060
Email: info@led.ie
Website: www.led.ie
R8EMLED-01
maintained and non-maintained
12X0.15watt White LED Strip
(L)390mm x (H)190mm x (D)60mm
1.4kg
Class I, Must be earthed
220-240V~ 50/60Hz
>3 hours after minimum 24Hr charge
3.6V x 1.8Ah Ni-Cd cells
up to 4 years normal use
5°C ~ +25°C
Iron/ PC sign panel
Screw terminals
ISO 9001:2008
Q UAL IT Y ASSU RE D CO MPANY
Page 1
