LED Group Robus R8MTS Instructions

Specification:

Installation:

1. Please note the requirement to dispose of Waste Electrical & Electronic Equipment separately from household waste (WEEE
marked with crossed out wheelie bin symbol).
2. Please consider your role in contributing to re-use and recycling by returning this product at end of life to a collection centre
for waste electrical equipment or a Civic Amenity site, or to a retail outlet from which you are purchasing a replacement.
3. This equipment may contain substances that are hazardous to health and the environment if disposed of carelessly. It is
important that it is separated from normal household waste and recycled in the WEEE chain
4. The "crossed out wheelie bin symbol" on a product indicates this equipment must not be disposed of in normal household
waste, but should be disposed of according to local WEEE regulations
The Installation must be carried out by an electrician
LED Group
Western Retail Park
Nangor Road
Dublin 12
Ireland
Issue 1 080713

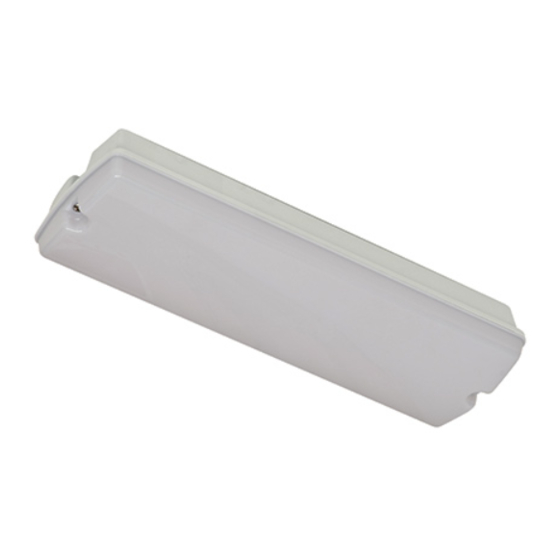

IP65 Maintained 8W BULKHEAD WITH
TEST SWITCH
R8MTS
Please read instructions before commencing installation and
retain for future reference.
Model No
Operating mode
Lamp
Dimensions
Weight
Safety classification
Supply voltage
Discharge duration
Battery
Battery life
Operating ambient temperature
Case material
Diffuser material
Ingress protection
Connection
Suitable for mounting on a normally flammable surface
Green LED indicator indicates battery charging mode
Safety and performance in accordance with EN60598-1,EN60598-2-22
EN55015,EN61000-3-2,EN61000-3-3,EN61547
Suitable for indoor or outdoor use, wall or ceiling mounted
! Electrical products can cause death or injury, or damage to property. If in any doubt about
the installation or use of this product, consult a competent electrician.
1 Ensure mains supply is switched off before commencing installation.
2.Remove the front diffuser from the body by removing the 2 fixing screws.
3.Release the metal gear tray by unscrewing the screw and easing the plastic clips away from the
metal tray, lift the metal tray away from the base.
4.Knock out the intended cable entry hole suitable for your installation;Fit cable gland(if
weatherproofing necessary)
5. Mark appropriate fixing points on wall or ceiling; check that fixings will not impinge on concealed
cables of pipes before drilling holes.
6. Fix luminaire to the wall/ceiling using suitable screws.
7. Write installation date on battery and connect battery
8. Connect wires from unswitched supply to terminals on gear tray, brown to L,Blue to N and
green/yellow to earth (Non Maintained)； In the maintained emergency unit: for lamp always on ,
link terminal "L1" to terminal "L". Lamp controlled by switch connect switched live wire to terminal
L1 and permanent live to L
Note: if "L1" terminal not connected, fitting works as non-maintained.
9. Reassemble gear tray, the tube and the diffuser.
10. Switch on suppy: the green led should come on indicating conrrect battery charge has
started. In the non-maintained unit, the lamp only lights if the mains supply fails; In the
maintained unit,the lamp will light(if switched live on),when the mains supply fails,battery
will operate lamp emergency mode.
Information for the Product user
Tel: +353 1 7099000
Fax: +353 1 7099060
Email: info@led.ie
Website: www.led.ie
R8MTS
maintained non-maintained
T5 8W fluorescent
(L)345mmX(W)107mmX(H)77mm
0.9kg
Class I, Must be earthed
220-240V~ 50/60HZ
>3 hours after minimum 24Hr charge
3.6V 1.8Ah Ni-Cd cells
up to 4 years normal use
o o
0 C~+25 C
Polycarbonate
Polycarbonate
IP65
Screw terminals
ISO 9001:2008
Q UAL IT Y ASSU RE D CO MPANY
