LED Group ROBUS R2WLEDNMEAU-01 Quick Start Manual

Speci cation:
Dimensions:
1. Please note the requirement to dispose of Waste Electrical & Electronic Equipment separately from household waste
(WEEE marked with crossed out wheelie bin symbol).
2. Please consider your role in contributing to re-use and recycling by returning this product at end of life to a collection
centre for waste electrical equipment or a Civic Amenity site, or to a retail outlet from which you are purchasing a
replacement.
3. This equipment may contain substances that are hazardous to health and the environment if disposed of carelessly.
It is important that it is separated from normal household waste and recycled in the WEEE chain
4. The "crossed out wheelie bin symbol" on a product indicates this equipment must not be disposed of in normal household
waste, but should be disposed of according to local WEEE regulations
The Installation must be carried out by an electrician
LED Group
Western Retail Park
Nangor Road
Dublin 12
Ireland
Issue 1 130913

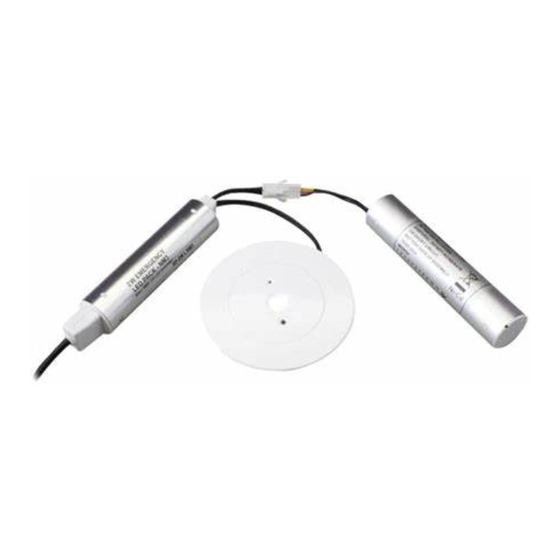

2W LED NON MAINTAINED
RECESSED EMERGENCY LIGHT
R2WLEDNMEAU-01
Please read instruction before commencing installation and
retain for future reference.
Model No.
Supply Voltage:
Power Consumption :
Lumen Output :
Colour Temperature:
CRI:
Beam angle :
Operating temp Range :
Battery
Discharge Duration
Safety Classification:
IP Rating:
Overall Diameter:
Depth:
Weight:
Warranty:
Installation:
Suitable for mounting on a normally flammable surface
Complete with flex and plug
Complies with EN60598-1;EN60598-2-22;EN55015;EN61000-3-2;
EN61000-3-3;EN61547
Cutout 75-110mm
Information for the Product user
Tel: +353 1 7099000
Fax: +353 1 7099060
Email: info@led.ie
Website: www.led.ie
R2WLEDNMEAU-01
220-240V~50/60Hz
2W
190lm
6000-7000K
75
120
o
0°C ~ +40°C
3.6V/3.0Ah Ni-Cd
>3 hours after minimum 24Hr charge
Class I, Must be earthed
20
130mm
65mm
0.7Kg
2 year
Recessed
65mm
Ø130mm Ø85mm
Cutout 75mm
ISO 9001:2008
Q UAL IT Y ASSU RE D CO MPANY
Page 1
