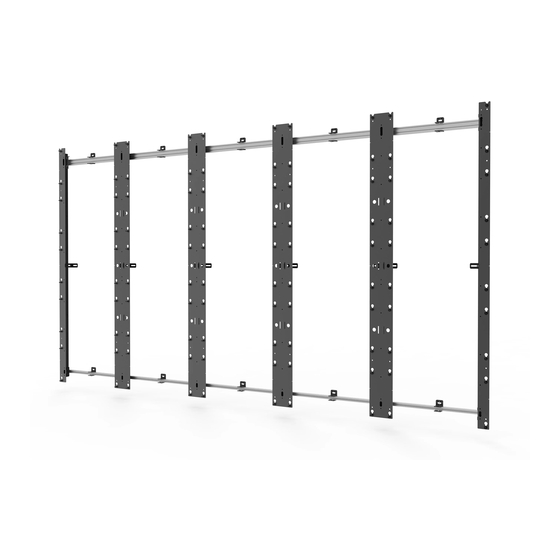

- Page 1 DS-LEDA27 Series For Absen Acclaim *Actual configuration may vary ENG Installation video for reference only. Read and follow instruction manual for full installation. 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 2 WARNING ENG - This product is designed to be installed on plywood walls. Hardware is included for plywood installation. This product is designed to be installed on flat, unobstructed, vertical walls. Do not install on curved or angled walls. Before installing make sure the supporting surface will support the combined load of the equipment and hardware.
-
Page 3: Parts List
Parts (Before beginning, make sure you have all parts shown below). Parts List left column right column inside vertical top vertical bottom vertical Description column kit spacer spacer outside vertical column kit A1 left column A2 right column spacer kit B1 top vertical spacer B2 bottom vertical spacer (not used) B3 horizontal spacer... - Page 4 Optional: If connecting two top horizontal extrusions, first remove inner hook-on brackets. Remove and save hardware. Use extrusion connectors to connect top horizontal 2.5mm extrusions. H (8) F (4) 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 5 Replace one hook-on bracket in between connected extrusions. Use saved hardware. Optional: If connecting two bottom horizontal extrusions, first remove inner hook-on brackets Remove and save hardware. 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 6 Use extrusion connectors to connect bottom 2.5mm horizontal extrusions. F (3) H (6) Replace one hook-on bracket in between connected extrusions. Use saved hardware. 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 7 WARNING ENG - When installing Peerless wall mounts on a wood stud wall covered with plywood, verify that the wood studs are a minimum of 2" x 4" nominal size and plywood is a minimum Grade BC, 1/2" (13 mm) thick. Plywood may be covered by gypsum board (drywall) up to 5/8"...
- Page 8 7/8"(22mm) minimum for mounting clearance Level top horizontal extrusion and mark mounting holes on plywood (must be minimum Grade BC, 1/2" (13mm) thick.) 3.94" (100mm) display tile 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 9 1.75" (44mm) 5/32" 5/32" (4mm) (4mm) Drill mounting holes into supporting surface (1.75" (44mm) minimum depth required). Level extrusion. Install using wood screws provided. 3/8" (10mm) I (7) Maximum 80 in. • lb (9 N.M.). 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 10 Edges must be flush. Secure vertical spacers to the wall flush with the horizontal extrusion. 3/8" (10mm) B1 (2) 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 11 Use third vertical spacer to align bottom horizontal extrusion flush with vertical spacer, then mark mounting holes on plywood (must be minimum Grade BC, 1/2" (13mm) thick.) Edges must be flush. 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 12 1.75" (44mm) 5/32" 5/32" (4mm) (4mm) Drill mounting holes into supporting surface (1.75" (44mm) minimum depth required). Use third vertical spacer to align bottom horizontal extrusion flush with vertical spacer, then install using wood screws 3/8" provided. (10mm) I (7) Maximum 80 in.
- Page 13 Remove vertical spacer. 3/8" (10mm) B1 (2) 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 14 Hook on and secure outer vertical columns. "L" and "R" markings designate left and right Tighten hardware. column. J (8) 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 15 Hook on and secure all inside vertical columns. Tighten hardware. J (16) C (4) 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 16 Loosen hardware on vertical columns. 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 17 Plumb and level outer columns, then tighten hardware. Tighten hardware on four corner wall plates. Tighten. Tighten. 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 18 Tie a string between top slots on outer columns in order to level the depth of each vertical column. Loosen, adjust, tighten. Optional leveling for bowed walls Loosen. Insert. Tighten. 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 19 Tie a string between bottom slots on outer columns in order to level the depth of each vertical column. Loosen, adjust, tighten. Optional leveling for bowed walls Loosen. Insert. Tighten. 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 20 Tighten or loosen to adjust height. With the string still attached, level the height of each column. 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 21 Adjust inner columns to fit horizontal spacers. Tighen column hardware after spacing. Start from the left column. 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 22 Continue adjusting inner columns to fit horizontal spacers until all are level. Tighen column hardware after spacing. B3 (2) 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 23 Remove all spacers. B3 (2) 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 24 Optional: For shallow depth installations, flip wall bracket orientation as shown. 2.60" 2.25" (66mm) (57mm) 3.05" 2.65" (77mm) (67mm) 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 25 Level L brackets and mark mounting holes on plywood (must be minimum Grade BC, 1/2" (13mm) thick.) 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 26 1.75" (44mm) 5/32" 5/32" (4mm) (4mm) Drill mounting holes into supporting surface (1.75" (44mm) minimum depth required). Level L brackets. Install using wood screws provided. 3/8" (10mm) Maximum 80 in. • lb (9 N.M.). I (10) 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 27 Tie a string between center slots on outer column in order to level the depth of each vertical column. 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 28 Adjust depth, then remove string. Loosen, adjust, tighten. 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 29 ENG Attach display, tighten connecting hardware, and run cables one at a time starting from the bottom left. 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 30 2018-05-15 #:146-9026-9 (2020-08-20)
- Page 31 ENG To remove, start from the top right. 2018-05-15 #:146-9026-9 (2020-08-20)
