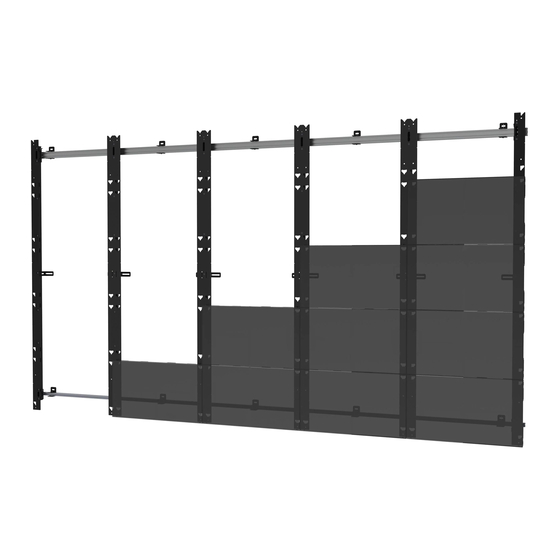

DS-LEDLSCB Series
For LG LSCB
*Actual configuration may vary
ENG Installation video for reference only.
Read and follow instruction manual for full installation.
1
2021-03-31
#:146-9063-1

Advertisement

loading

Summary of Contents for peerless-AV DS-LEDLSCB Series

  • Page 1 DS-LEDLSCB Series For LG LSCB *Actual configuration may vary ENG Installation video for reference only. Read and follow instruction manual for full installation. 2021-03-31 #:146-9063-1...
  • Page 2 WARNING ENG - This product is designed to be installed on plywood walls. Hardware is included for plywood installation. This product is designed to be installed on flat, unobstructed, vertical walls. Do not install on curved or angled walls. Before installing make sure the supporting surface will support the combined load of the equipment and hardware.
  • Page 3: Parts List

    Parts (Before beginning, make sure you have all parts shown below). Refer to parts list included with your model. Parts List Description A left column B right column C inside column D top left horizontal asy E top right horizontal asy F bottom left horizontal asy G bottom right horizontal asy H vertical spacer...
  • Page 4 vertical M5 x 8mm horizontal spacer spacer M5 square nut 3mm allen wrench #14 x 1.75" wood screw two-tip T-handle wall plate connector M5 x 5mm shim plate set screw 2.5mm allen wrench 2021-03-31 #:146-9063-1...
  • Page 5 This page intentionally left blank. 2021-03-31 #:146-9063-1...
  • Page 6 Optional: If connecting two top horizontal extrusions, first remove inner hook-on brackets. Remove and save hardware. Use extrusion connectors to connect top horizontal extrusions. N (8) M (4) 2021-03-31 #:146-9063-1...
  • Page 7 Replace one hook-on bracket in between connected extrusions. Use saved hardware. 568mm 568mm Loosen. Tighten. Adjust. Afloje. Apriete. Ajuste. Desserrez. Puis serrez. Réglez. Lösen. Anziehen. Einstellen. 2021-03-31 #:146-9063-1...
  • Page 8 Optional: If connecting two bottom horizontal extrusions, first remove inner hook-on brackets Remove and save hardware. Use extrusion connectors to connect bottom horizontal extrusions. M (3) N (6) 2021-03-31 #:146-9063-1...
  • Page 9 Replace one hook-on bracket in between connected extrusions. Use saved hardware. 568mm 568mm Loosen. Adjust. Tighten. Afloje. Ajuste. Apriete. Desserrez. Réglez. Puis serrez. Lösen. Einstellen. Anziehen. 2021-03-31 #:146-9063-1...
  • Page 10 WARNING ENG - When installing Peerless wall mounts on a wood stud wall covered with plywood, verify that the wood studs are a minimum of 2" x 4" nominal size and plywood is a minimum Grade BC, 1/2" (13 mm) thick. Plywood may be covered by gypsum board (drywall) up to 5/8"...
  • Page 11 7/8"(22mm) minimum Use a laser level to keep mounting holes for mounting clearance level. 3.0" (76mm) display tile 2021-03-31 #:146-9063-1...
  • Page 12 Level top horizontal extrusion and mark mounting holes on plywood (must be minimum Grade BC, 1/2" (13mm) thick.) 2021-03-31 #:146-9063-1...
  • Page 13 1.75" (44mm) 5/32" 5/32" (4mm) (4mm) Drill mounting holes into supporting surface (1.75" (44mm) minimum depth required). Level extrusion. Install using wood screws provided. 3/8" (10mm) Maximum 80 in. • lb (9 N.M.). 2021-03-31 #:146-9063-1...
  • Page 14 Edges must be flush. Secure vertical spacers to the wall flush with the horizontal extrusion. 3/8" (10mm) 2021-03-31 #:146-9063-1...
  • Page 15 Use third vertical spacer to align bottom horizontal extrusion flush with vertical spacer, then mark mounting holes on plywood (must be minimum Grade BC, 1/2" (13mm) thick.) Edges must be flush. 2021-03-31 #:146-9063-1...
  • Page 16 1.75" (44mm) 5/32" 5/32" (4mm) (4mm) Drill mounting holes into supporting surface (1.75" (44mm) minimum depth required). Use third vertical spacer to align bottom horizontal extrusion flush with vertical spacer, then install using wood screws 3/8" provided. (10mm) Maximum 80 in. • lb (9 N.M.). 2021-03-31 #:146-9063-1...
  • Page 17 Remove vertical spacers. 3/8" (10mm) 2021-03-31 #:146-9063-1...
  • Page 18 Hook on and secure outer columns. Tighten hardware. 2021-03-31 #:146-9063-1...
  • Page 19 Hook on and secure all inside columns. Tighten hardware. 2021-03-31 #:146-9063-1...
  • Page 20 Loosen hardware on columns. 2021-03-31 #:146-9063-1...
  • Page 21 Plumb and level outer columns, then tighten hardware. Tighten hardware on four corner wall plates. Tighten. Tighten. 2021-03-31 #:146-9063-1...
  • Page 22 Tie a string between top slots on outer columns in order to level the depth of each. Loosen, adjust, tighten. Optional leveling for bowed walls Loosen. Insert. Tighten. 2021-03-31 #:146-9063-1...
  • Page 23 Tie a string between bottom slots on outer columns in order to level the depth of each. Loosen, adjust, tighten. Optional leveling for bowed walls Loosen. Insert. Tighten. 2021-03-31 #:146-9063-1...
  • Page 24 Tighten or loosen to adjust height. With the string still attached, level the height of each column. 2021-03-31 #:146-9063-1...
  • Page 25 Adjust inner columns to fit horizontal spacers. Tighten column hardware after spacing. Start from the left column. 2021-03-31 #:146-9063-1...
  • Page 26 Continue adjusting inner columns to fit horizontal spacers until all are level. Tighten column hardware after spacing. 2021-03-31 #:146-9063-1...
  • Page 27 Remove all spacers. 2021-03-31 #:146-9063-1...
  • Page 28 Optional: Flip wall bracket for additional depth as shown. 2.15" 2.63" (55mm) (67mm) 2.42" 2.90" (62mm) (74mm) 2021-03-31 #:146-9063-1...
  • Page 29 Level L brackets and mark mounting holes on plywood (must be minimum Grade BC, 1/2" (13mm) thick.) 1.75" (44mm) 5/32" 5/32" (4mm) (4mm) Drill mounting holes into supporting surface (1.75" (44mm) minimum depth required). 2021-03-31 #:146-9063-1...
  • Page 30 Level L brackets. Install using wood screws provided. 3/8" (10mm) Maximum 80 in. • lb (9 N.M.). 2021-03-31 #:146-9063-1...
  • Page 31 Tie a string between center slots on outer columns in order to level the depth of each. 2021-03-31 #:146-9063-1...
  • Page 32 Adjust depth, then remove string. Loosen, adjust, tighten. 2021-03-31 #:146-9063-1...
  • Page 33 ENG Attach display, tighten connecting hardware, and run cables one at a time starting from the bottom left. 2021-03-31 #:146-9063-1...
  • Page 34 2021-03-31 #:146-9063-1...
  • Page 35 ENG To remove, start from the top right. 2021-03-31 #:146-9063-1...
  • Page 36 Garantia TÜR Garanti̇ Garanzia Záruka www.peerless-av.com/warranty Peerless-AV Peerless-AV Europe Peerless-AV América Latina 2300 White Oak Circle Unit 3 Watford Interchange, Av. de las Industrias 413 Aurora, IL 60502 Colonial Way, Watford, Herts, Parque Industrial Escobedo Email: tech@peerlessmounts.com WD24 4WP, United Kingdom General Escobedo N.L., México 66062...
