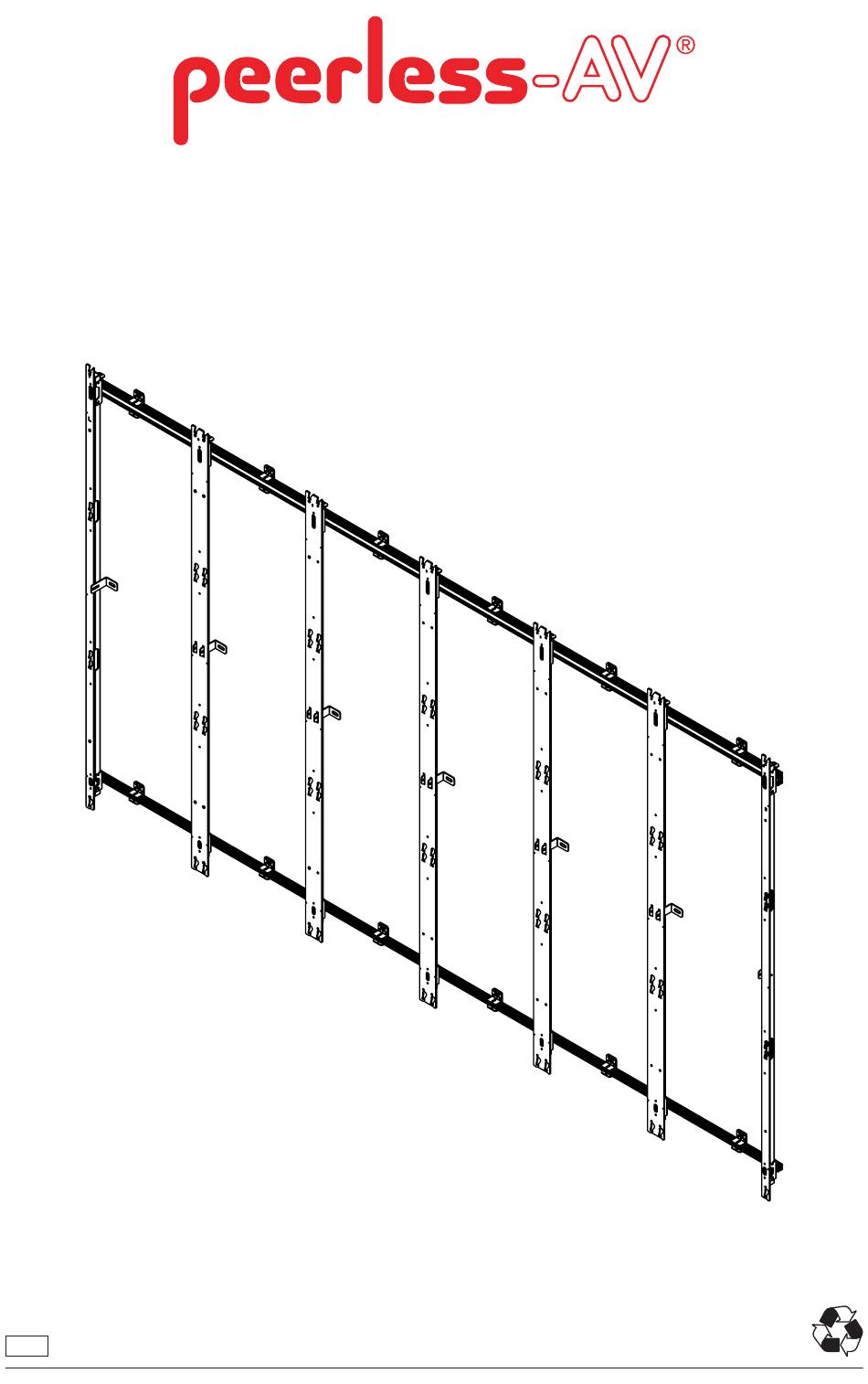

DS-LEDIF Series
For Samsung IF015H, IF020H, IF025H
ENG
*Actual configuration may vary
1
2018-03-14
#:146-9020-4
(2019-05-16)

Advertisement

loading

Related Manuals for peerless-AV DS-LEDIF Series

Summary of Contents for peerless-AV DS-LEDIF Series

  • Page 1 DS-LEDIF Series For Samsung IF015H, IF020H, IF025H *Actual configuration may vary 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 2 WARNING ENG - This product is designed to be installed on plywood walls. Hardware is included for plywood installation. Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail. Never exceed the Maximum Load Capacity.
  • Page 3 This page intentionally left blank. 2018-03-14 #:146-9020-4 (2019-05-16)

  • Page 4: Parts List

    Parts (Before beginning, make sure you have all parts shown below). Parts List Description A left column Refer to parts list included for your specific model. B right column C inside vertical column D top horizontal asy E bottom horizontal asy F top vertical spacer G horizontal spacer H M5 x 8mm socket screw...
  • Page 5 top vertical bottom vertical M5 x 8mm horizontal spacer spacer spacer #14 x 2.5" wood screw M5 square nut 3mm allen wrench two-tip T-handle wall plate connector M5 x 5mm shim plate set screw 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 6 Refer to layout drawing included for your specific model. 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 7 Optional: If connecting two top horizontal extrusions, first remove inner hook-on brackets. M5 x 16mm Remove and save hardware. Use extrusion connectors to connect top horizontal extrusions. N (8) M (4) 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 8 Replace one hook-on bracket in between connected extrusions. H (2) Use saved hardware. Optional: If connecting two bottom horizontal extrusions, first remove inner hook-on brackets Remove and save hardware. 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 9 Use extrusion connectors to connect bottom horizontal extrusions. M (3) N (6) Replace one hook-on bracket in between connected extrusions. Use saved hardware. 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 10 WARNING ENG - When installing Peerless wall mounts on a wood stud wall covered with plywood, verify that the wood studs are a minimum of 2" x 4" nominal size and plywood is a minimum Grade BC, 1/2" (13 mm) thick. Plywood may be covered by gypsum board (drywall) up to 5/8"...
  • Page 11 Use a laser level to keep mounting holes level. 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 12 2.5" (64mm) 5/32" 5/32" (4mm) (4mm) Drill mounting holes into supporting surface (2.5" (64mm) minimum depth required). Level extrusion. Install using wood screws provided. 3/8" (10mm) I (6) Maximum 80 in. • lb (9 N.M.). 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 13 Edges must be flush. Secure vertical spacers to the wall flush with the horizontal extrusion. 3/8" (10mm) 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 14 Use third vertical spacer to align bottom horizontal extrusion flush with vertical spacer, then mark mounting holes on plywood (must be minimum Grade BC, 1/2" (13mm) thick.) Edges must be flush. 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 15 2.5" (64mm) 5/32" 5/32" (4mm) (4mm) Drill mounting holes into supporting surface (2.5" (64mm) minimum depth required). Use third vertical spacer to align bottom horizontal extrusion flush with vertical spacer, then install using wood screws 3/8" provided. (10mm) I (6) Maximum 80 in.
  • Page 16 Refer to layout drawing included for your specific model. 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 17 Edges must be flush. For larger configurations only; Secure vertical spacer to the wall flush with the horizontal extrusion. 3/8" (10mm) I (2) 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 18 Use third vertical spacer to align bottom horizontal extrusion flush with vertical spacer, then mark mounting holes on plywood (must be minimum Grade BC, 1/2" (13mm) thick.) Edges must be flush. 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 19 2.5" (64mm) 5/32" 5/32" (4mm) (4mm) Drill mounting holes into supporting surface (2.5" (64mm) minimum depth required). Use third vertical spacer to align bottom horizontal extrusion flush with vertical spacer, then install using wood screws 3/8" provided. (10mm) I (6) Maximum 80 in.
  • Page 20 Remove vertical spacers. 3/8" (10mm) F (2) O (2) 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 21 Loosen, adjust, tighten. 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 22 Hook on and secure outer vertical columns. "L" and "R" markings designate left and right Tighten hardware. column. H (8) 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 23 Hook on and secure all inside vertical columns. Tighten hardware. H (20) C (5) 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 24 Loosen hardware on vertical columns. 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 25 Plumb and level outer columns, then tighten hardware. Tighten hardware on four corner wall plates Tighten. Tighten. 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 26 Tie a string between top slots on outer columns in order to level the depth of each vertical column. Loosen, adjust, tighten. Optional leveling for bowed walls Loosen. Insert. Tighten. 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 27 Tie a string between bottom slots on outer columns in order to level the depth of each vertical column. Loosen, adjust, tighten. Optional leveling for bowed walls Loosen. Insert. Tighten. 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 28 Tighten or loosen to adjust height. With the string still attached, level the height of each column 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 29 Adjust inner columns to fit horizontal spacers. Tighten column hardware after spacing. Start from the left column. 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 30 Continue adjusting inner columns to fit horizontal spacers until all are level. Tighten column hardware after spacing 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 31 Remove all spacers. 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 32 Level L brackets and mark mounting holes on plywood (must be minimum Grade BC, 1/2" (13mm) thick.) 2.5" (64mm) 5/32" 5/32" (4mm) (4mm) Drill mounting holes into supporting surface (2.5" (64mm) minimum depth required). 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 33 Level L brackets. Install using wood screws provided. 3/8" (10mm) Maximum 80 in. • lb (9 N.M.). I (12) 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 34 Tie a string between center slots on outer column in order to level the depth of each vertical column. 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 35 Adjust depth, then remove string. Loosen, adjust, tighten. 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 36 10-1 ENG Attach display, tighten connecting hardware, and run cables one at a time starting from the bottom left. 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 37 10-2 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 38 ENG To remove, start from the top right. 2018-03-14 #:146-9020-4 (2019-05-16)
  • Page 39 This page intentionally left blank. 2018-03-14 #:146-9020-4 (2019-05-16)

  • Page 40: Limited Five-Year Warranty

    (from date of the original installation of the product). At its option, Peerless-AV will repair or replace, or refund the purchase price of, any product which fails to conform with this warranty.
