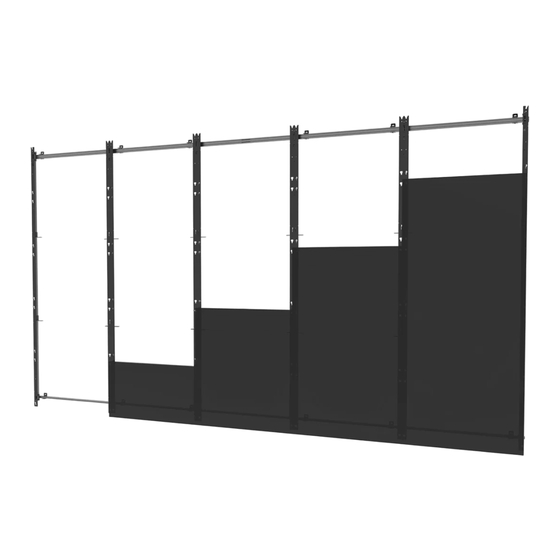

- Page 1 DS-LEDIER Series *Actual configuration may vary ENG Installation video for reference only. Read and follow instruction manual for full installation. 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 2 WARNING ENG - This product is designed to be installed on plywood walls. Hardware is included for plywood installation. This product is designed to be installed on flat, unobstructed, vertical walls. Do not install on curved or angled walls. Before installing make sure the supporting surface will support the combined load of the equipment and hardware.
- Page 3 Tools Needed for Assembly. ENG To properly tighten screws: Tighten until screw head makes contact, then tighten another 1/2 turn. Do not overtighten screws. 5/32" (4mm) +1/2 3/8" (10mm) 2.5mm 2020-07-01 #:146-9053-3 (2021-01-06)
-
Page 4: Parts List
Parts (Before beginning, make sure you have all parts shown below). Refer to parts list included with your model. Parts List left column right column inside column vertical spacer Description A left column B right column C inside column D vertical spacer E horizontal spacer F top left horizontal asy G top right horizontal asy... - Page 5 top left horizontal asy top right horizontal asy bottom left horizontal asy bottom right horizontal asy 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 6 Optional: If connecting two top horizontal extrusions, first remove inner hook-on brackets. Remove and save hardware. Use extrusion connectors to connect top horizontal 2.5mm extrusions. J (4) M (8) 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 7 Replace one hook-on bracket in between connected extrusions. Use saved hardware. Optional: If connecting two bottom horizontal extrusions, first remove inner hook-on brackets Remove and save hardware. 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 8 Use extrusion connectors to connect bottom 2.5mm horizontal extrusions. J (3) M (6) Replace one hook-on bracket in between connected extrusions. Use saved hardware. 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 9 This page intentionally left blank. 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 10 WARNING ENG - When installing Peerless wall mounts on a wood stud wall covered with plywood, verify that the wood studs are a minimum of 2" x 4" nominal size and plywood is a minimum Grade BC, 1/2" (13 mm) thick. Plywood may be covered by gypsum board (drywall) up to 5/8"...
- Page 11 Level top horizontal extrusion and mark mounting holes on plywood (must be minimum Grade BC, 1/2" (13mm) thick.) 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 12 1.75" (44mm) 5/32" 5/32" (4mm) (4mm) Drill mounting holes into supporting surface (1.75" (44mm) minimum depth required). Level extrusion. Install using wood screws provided. 3/8" (10mm) Maximum 80 in. • lb (9 N.M.). 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 13 Edges must be flush. Secure vertical spacers to the wall flush with the horizontal extrusion. 3/8" (10mm) 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 14 Use third vertical spacer to align bottom horizontal extrusion flush with vertical spacer, then mark mounting holes on plywood (must be minimum Grade BC, 1/2" (13mm) thick.) Edges must be flush. 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 15 1.75" (44mm) 5/32" 5/32" (4mm) (4mm) Drill mounting holes into supporting surface (1.75" (44mm) minimum depth required). Use third vertical spacer to align bottom horizontal extrusion flush with vertical spacer, then install using wood screws 3/8" provided. (10mm) Maximum 80 in. • lb (9 N.M.). 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 16 3-10 Remove vertical spacer. 3/8" (10mm) 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 17 Hook on and secure outer vertical columns. "L" and "R" markings designate left and right Tighten hardware. column. 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 18 Hook on and secure all inside vertical columns. Tighten hardware. 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 19 Loosen hardware on vertical columns. 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 20 Plumb and level outer columns, then tighten hardware. Tighten hardware on four corner wall plates. Tighten. Tighten. 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 21 Tie a string between top slots on outer columns in order to level the depth of each vertical column. Loosen, adjust, tighten. Optional leveling for bowed walls Loosen. Insert. Tighten. 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 22 Tie a string between bottom slots on outer columns in order to level the depth of each vertical column. Loosen, adjust, tighten. Optional leveling for bowed walls Loosen. Insert. Tighten. 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 23 Tighten or loosen to adjust height. With the string still attached, level the height of each column 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 24 Adjust inner columns to fit horizontal spacers. Tighen column hardware after spacing. Start from the left column. 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 25 Continue adjusting inner columns to fit horizontal spacers until all are level. Tighen column hardware after spacing 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 26 Remove all spacers. 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 27 Optional: For shallow depth installations, flip wall bracket orientation as shown. 2.98" 2.60" (75mm) (66mm) 3.27" 2.89" (83mm) (73mm) 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 28 Level L brackets and mark mounting holes on plywood (must be minimum Grade BC, 1/2" (13mm) thick.) 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 29 1.75" (44mm) 5/32" 5/32" (4mm) (4mm) Drill mounting holes into supporting surface (1.75" (44mm) minimum depth required). Level L brackets. Install using wood screws provided. 3/8" (10mm) Maximum 80 in. • lb (9 N.M.). 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 30 Tie a string between center slots on outer column in order to level the depth of each vertical column. 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 31 Adjust depth, then remove string. Loosen, adjust, tighten. 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 32 ENG Display not included. 1/8" (3mm) 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 33 ENG Attach display, tighten connecting hardware, and run cables one at a time starting from the bottom left. 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 34 2020-07-01 #:146-9053-3 (2021-01-06)
- Page 35 ENG To remove, start from the top right. 2020-07-01 #:146-9053-3 (2021-01-06)
