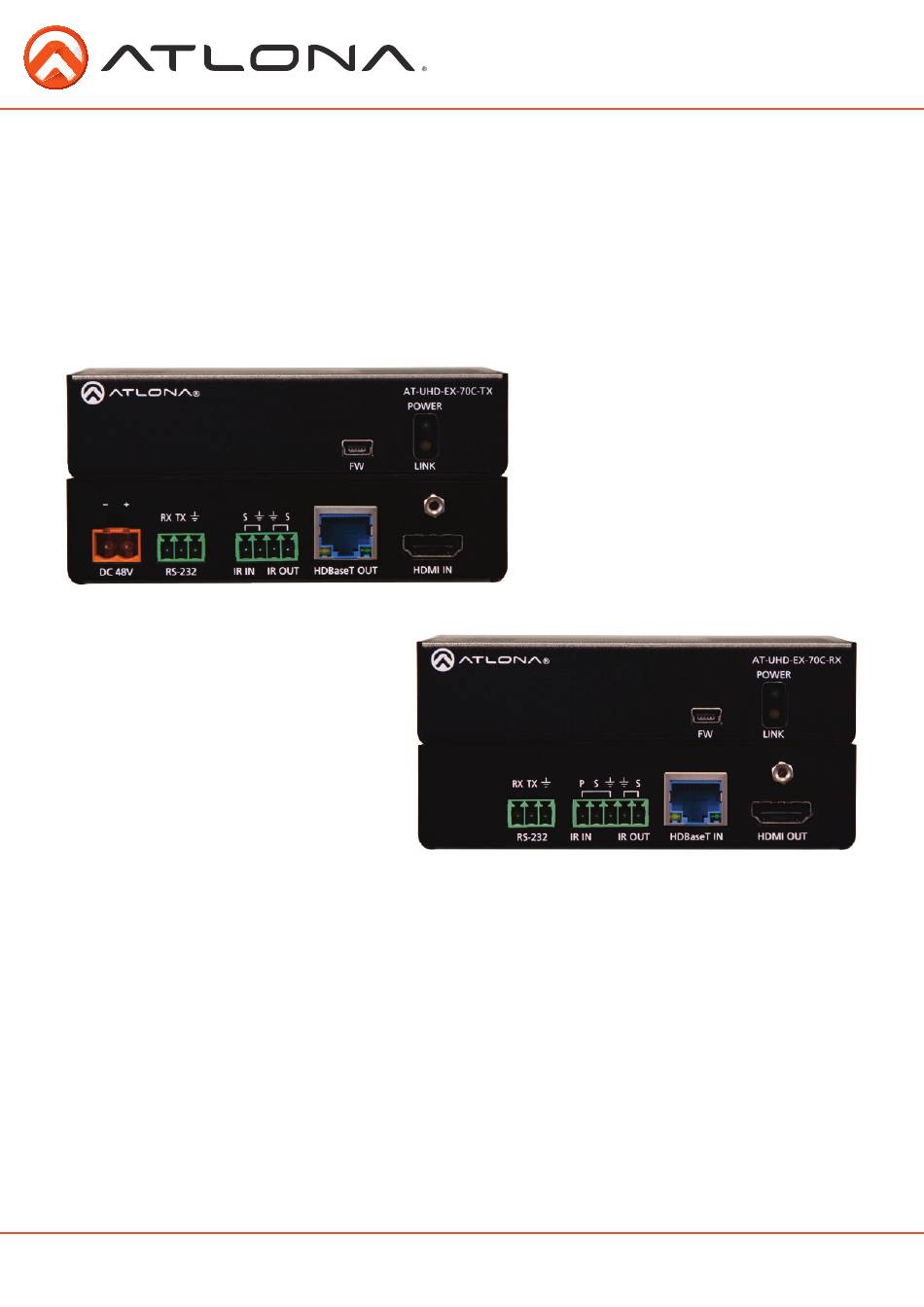

- Page 1 4K/UHD HDMI Over HDBaseT TX/RX with Control and PoE AT-UHD-EX-70C-KIT & AT-UHD-EX-70C-RX Please check http://www.atlona. com/UHD-EX-70C-KIT.html or http:// www.atlona.com/UHD-EX-70C-RX for the most recent firmware update or manual. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
Rear Panel ................... 6 7. Captive Screw Connectors ................... 7 8. Connection Diagram ................... 8-9 9. Specifications ................... 10 10. Safety Information ................... 11 11. Warranty ................... 12-13 12. Atlona Product Registration ................... 13 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
(70m) video needs. Package Contents • 1 x AT-UHD-EX-70C-TX • 1 x AT-UHD-EX-70C-RX • 1 x 48V DC desk top power supply • 1 x IEC C13 power cable • 5 x Female captive screw connector (2 pin (x1): power, 3 pin (x2): RS-232, and 5 pin (x2): IR) •... -
Page 4: Category Cable
Using the wrong size of connectors may result in interference causing loss of signal. Important! “EZ RJ45 connectors” are not recommended with HDBaseT extenders. Doing so may result in stray EMI/RFI signals to be picked up and interfere with audio and video transmission. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Panel Descriptions

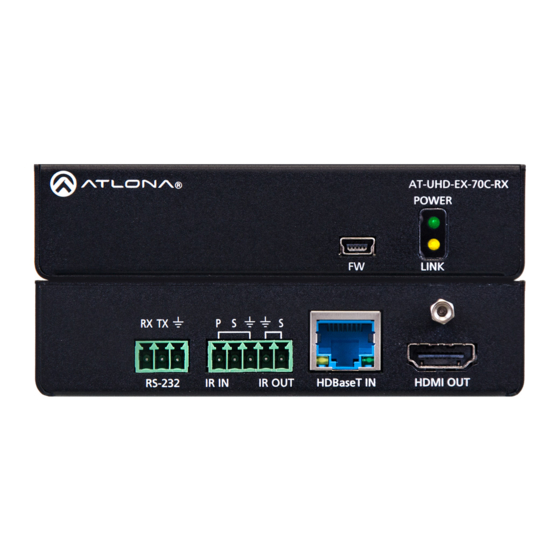

5. IR - Connect IR emitter or 3rd party control box to this port (included) 6. HDBaseT OUT - Connect a category cable from here to an AT-UHD-EX-70C-RX (included in KIT) 7. HDMI IN - Connect HDMI or DVI source here (with adapter) Ex. - Page 6 AT-UHD-EX-70C-RX POWER LINK RX TX RS-232 IR IN IR OUT HDBaseT IN HDMI OUT 1. Firmware - Use a Mini-B USB to USB A cable to connect to a Windows computers for updating 2. Yellow Link LED: Signal indicator for the HDBaseT IN port...
-
Page 7: Captive Screw Connectors
RS-232 cable. Note: The IR receiver is optional for the UHD-EX-70C-KIT and RX box. The compatible IR receiver (AT-IR-CS-RX) can be purchased through atlona.com. The wires of the emitter and receiver have been marked to differenciate the pin outs. - Page 8 Power Chaining Multiple kits can be powered by one power supply. The included power supply can support up to 3 kits. To power four kits use the optional power supply AT-PSU-48V1.25A (purchase through atlona.com). AT-UHD-EX-100CE-RX AT-UHD-EX-100CE-RX AT-UHD-EX-100CE-RX AT-UHD-EX-100CE-RX POWER POWER...
-
Page 9: Connection Diagram
COAX OUT RELAYS WIFI 2 SERIAL 1 AUDIO IN CONTACTS IR OUT VIDEO OUT AUDIO OUT SERIAL 2 Control System AT-UHD-EX-70C-RX POWER LINK RX TX RS-232 IR IN IR OUT HDBaseT IN HDMI OUT Game Console Game console Set top box... - Page 10 ZONE OUT RS-232 IR IN RX TX IR IN IR OUT AUDIO OUT MAIN FUSE: T 4A / 250V PWR: 100-240VAC 50/60Hz AT-UHD-PRO3-66M HDBaseT Matrix Switcher AT-UHD-EX-70C-RX POWER ZIGBEE 12V DC FACTORY HDMI COMPONENT WIFI 1 DIGITAL eSATA RESTORE COAX OUT...
-
Page 11: Specifications
1.10 x 4.69 x 3.50 (inch) Weight 0.27 kg 0.59 lbs 0.33 kg 0.73 lbs Certification Power Supply CE, FCC, cULus, RoHS, CCC, RCM Product CE, FCC **4096x2160@50/60Hz & 3840x2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 12: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. - Page 13 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
-
Page 14: Atlona Product Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
