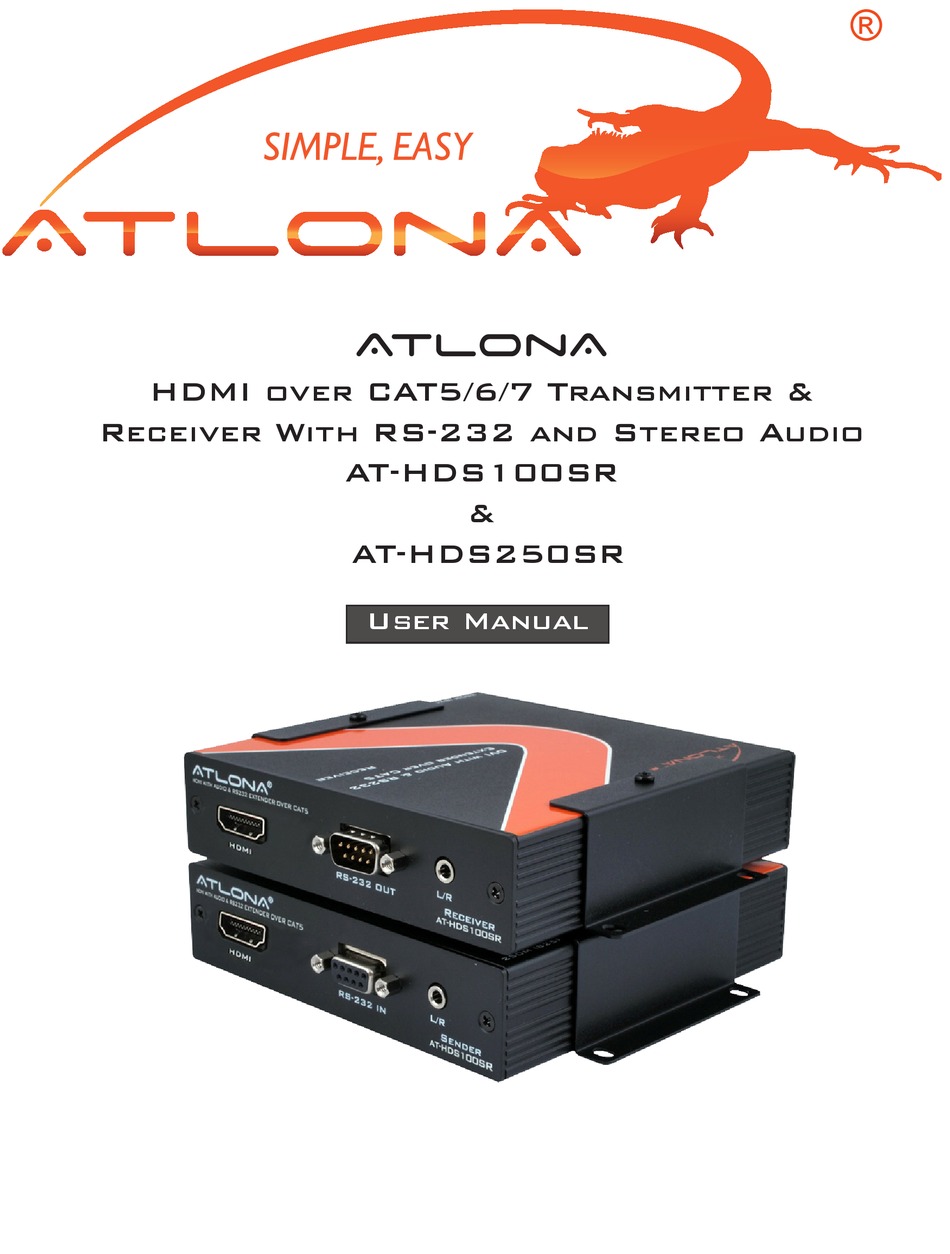

- Page 1 AtlonA HDMI over CAT5/6/7 Transmitter & Receiver With RS-232 and Stereo Audio AT-HDS100SR & AT-HDS250SR User Manual...
-
Page 2: Table Of Contents
5.1 Transmitter’s Front Panel ..........5.2 Transmitter’s Rear Panel ..........5.3 Receiver’s Front Panel ..........5.4 Receiver’s Rear Panel ..........6. RS-232 Protocol ..........7. Connection Diagram ..........8. Safety Information ..........9. Warranty ..........10. Atlona Product Registration .......... -
Page 3: Introduction
HDMI runs, are twisted pair transmitter and receiver modules which feature stereo audio as well as RS-232 data signals. The AT-HDS100SR is capable of extending signal up to 330ft while the AT- HDS250SR extends signal up to 825ft. In these lengths, each HDMI extenders is still capable of main- taining very high video resolutions up to 1920x1200 or 1080p with no signal degradation. -
Page 4: Specification
Transmitter’s Front Panel HDMI WITH AUDIO &RS232 EXTENDER OVER CAT5 SENDER AT-HDS100SR 1. HDMI IN – Plug from HDMI source’s output to HDMI 2. RS-232 – Connect to source with D-Sub 9 pin cable to control output display device. (Please refer to section below for RS-232 pin definition). -
Page 5: Transmitter's Rear Panel
Transmitter’s Rear Panel 1, VIDEO CAT5/6/7 OUTPUT - Connect the VIDEO output to the VIDEO input of receiver with CAT-5/6/7 cable. 2. RS232 - Insert CAT 5 cable to the receiver’s rear panel RS232 jack. 3. Power - Connect with 5V / 2.6A power adaptor. Receiver’s Front Panel 1. -
Page 6: Receiver's Rear Panel
Receiver’s Rear Panel HDMI WITH AUDIO &RS232 EXTENDER OVER CAT5 RECEIVER AT-HDS100SR 1. HDMI OUT – Connect to Video/Audio display with HDMI cable. 2. RS-232 – Connect to device with D-Sub 9 Pin cable for controlling device. (Please refer to section below for RS-232 pin definition). -
Page 7: Connection Diagram
CONNECTION DIAGRAM D-Sub Audio Amplifier 9Pin L/R Cable HDMI Cable Monitor/ HDMI Display 2xCat5 Cable HDMI Cable Audio Amplifier L/R Cable D-Sub 9Pin Blu-Ray... -
Page 8: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 9: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 10: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights. To register go to www.atlona.com/registration...
