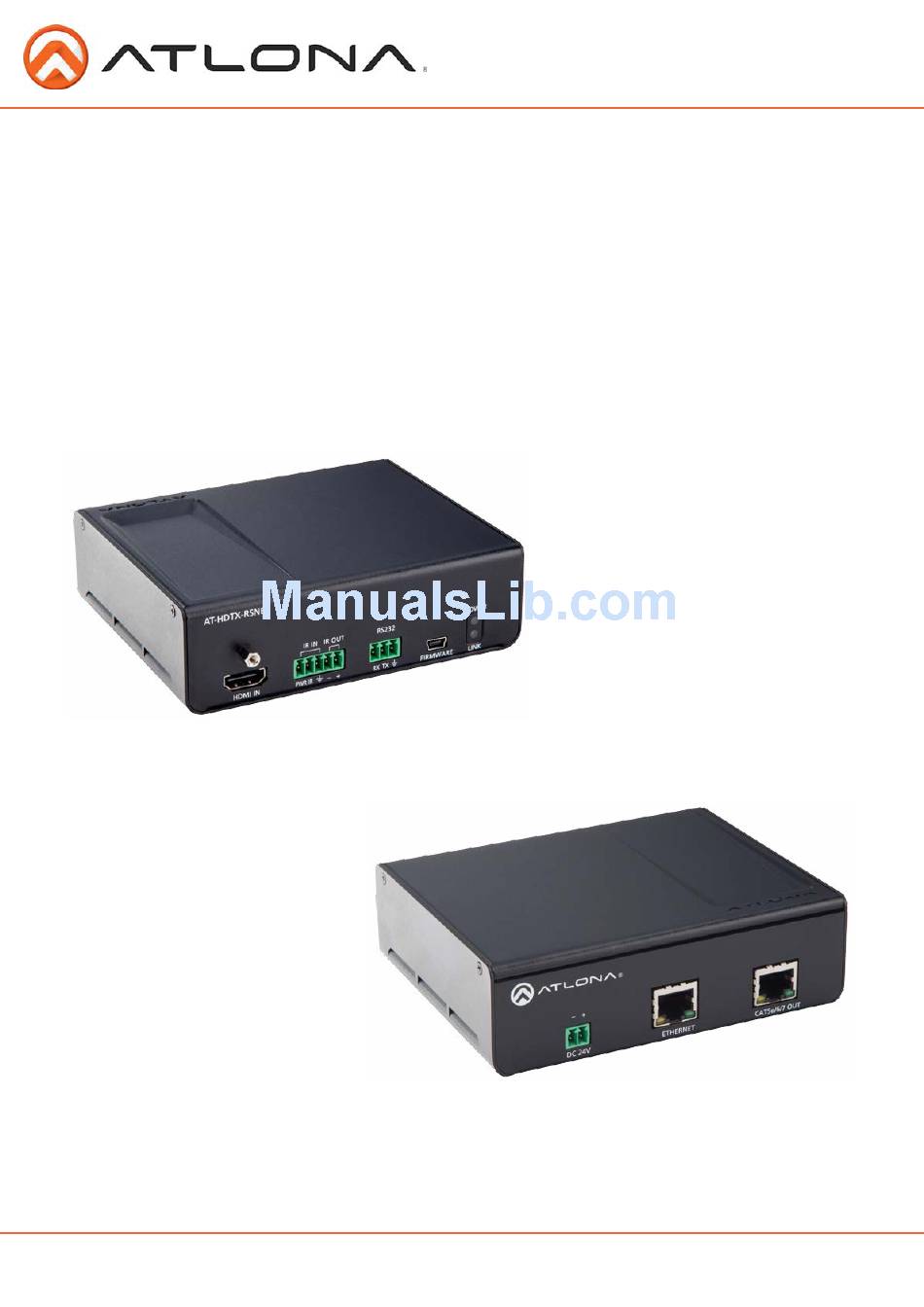

- Page 1 Atlona HDBaseT Transmitter Over Single CAT5e/6/7 w/IR, RS-232, and Ethernet AT-HDTX-RSNET User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
5. Panel Descriptions a. Front Panel ..................4 b. Rear Panel ..................4 6. Connection and Installation ..................5 7. Safety Information ..................6 8. Warranty ..................7 9. Atlona Product Registration ..................8 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction Go the distance of up to 328ft (100m) at 4Kx2K with the Atlona HDBaseT Transmitter. With pass through support of up to 4Kx2K, 1920x1200, IR, RS-232, bi-directional Ethernet, as well as Lossy and Lossless audio signals over a single CAT cable, the HDTX-RSNET provides an affordable high quality solution for your audio/video needs. -
Page 4: Panel Descriptions
1. Power Port: Connect included captive screw power adapter here. 2. Ethernet Port: Bi-directional Ethernet, send signal to a display or source from a router. 3. CAT5e/6/7 OUT Port: Connect CAT5e/6/7 cable from here to a compatible receiver. Ex. AT-HDRX-RSNET (recommended) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Captive Screw
Emitter Receiver ╧ Red: PWR White: IR Black: ╧ White: - Red:+ The power pin out (see picture 11) and wire configuration (see picture 12 and 13) are shown below. Black: - White: + Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Connection And Installation
RS-232 pin out will be determined by the RS-232 cable and will connect as Rx (receiver), Tx (transmitter), and ╧ (ground). (See picture 1) Pin out color will differ per RS-232 cable. Connection and Installation AT-HDTX-RSNET AT-HDRX-RSNET Toll free: 1-877-536-3976 atlona.com... -
Page 7: Safety Information
It may also cause damage to your AT-HDTX-RSNET. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 8: Warranty
Atlona can also be contacted directly. Visit www.atlona.com for Atlona’s contact information and hours of operation. Atlona requires that a dated sales or delivery receipt from an authorized dealer, reseller or end-purchaser is provided before Atlona extends its warranty services. Additionally, a return merchandise authorization (RMA) and/or case number, is required to be obtained from Atlona in advance of returns. -
Page 9: Atlona Product Registration ........................................................................................ 8
Atlona, Inc Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
