- Page 1 4K/UHD HDMI Over 100M HDBaseT TX/RX with Ethernet, Control, and PoE AT-UHD-EX-100CE-TX-PD Please check http://www.atlona.com/product/ AT-UHD-EX-100CE-TX-PD/ for the most recent firmware update or manuals Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
6. Panel Descriptions ................... 5 7. Captive Screw Connectors ................... 5 8. Connection Diagram ................... 6-7 9. Specifications ................... 8 10. Safety Information ................... 9 11. Warranty ................... 10-11 12. Atlona Product Registration ................... 11 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction The Atlona AT-UHD-EX-100CE-TX-PD is an HDBaseT™ transmitter for HDMI transmission up to 328 feet over category cable with Ethernet pass through, plus RS-232 control. It transmits (100 meters) video signals up to 4K/UHD @ 60Hz with 4:2:0 color subsampling, plus embedded multi-channel audio. -
Page 4: Category Cable
Using the wrong size connectors may result in interference causing loss of signal. Important! “EZ RJ45 connectors” are not recommended with HDBaseT extenders. Doing so may result in interference with audio and video transmission. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Panel Descriptions

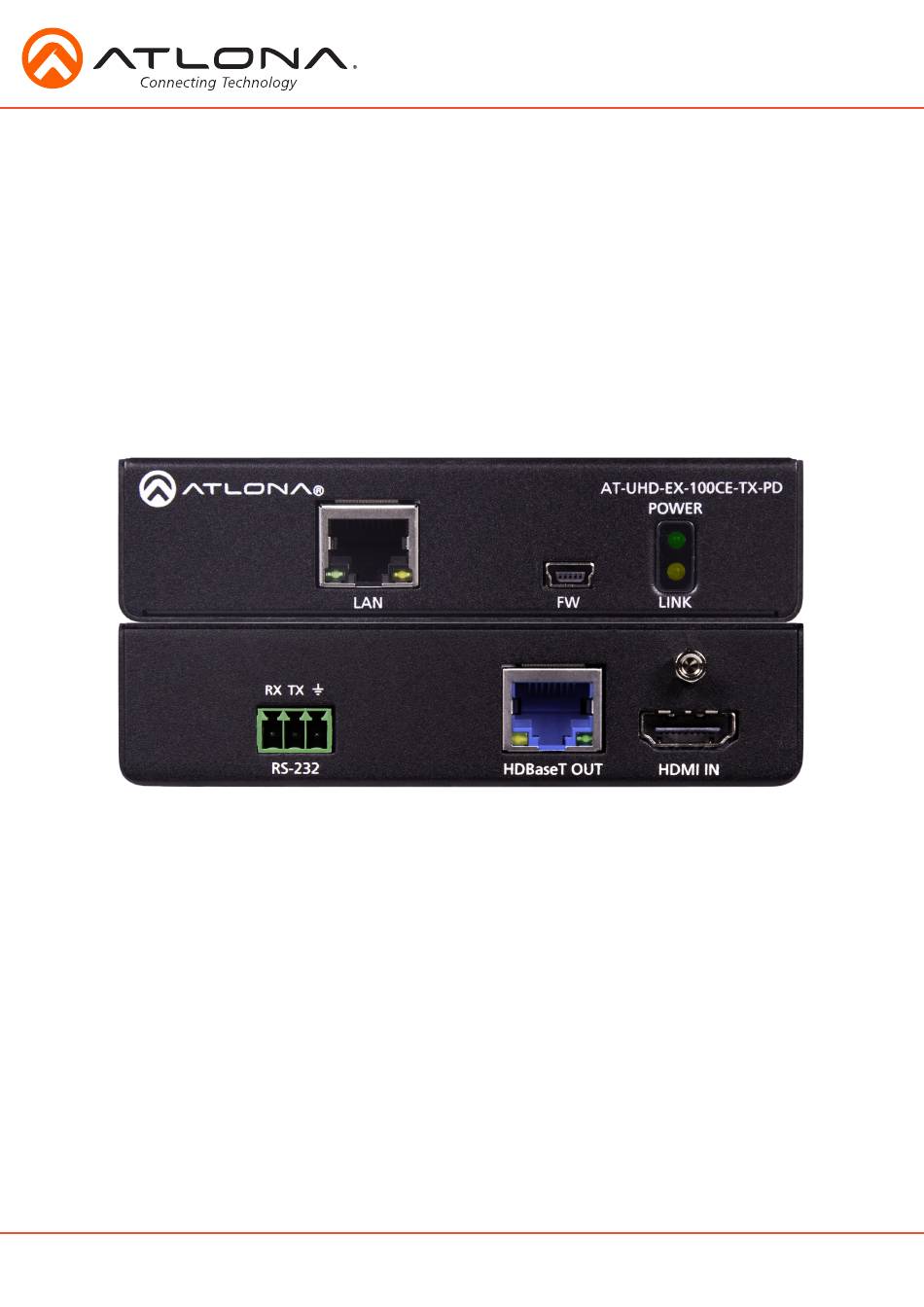

Panel Description AT-UHD-EX-100CE-TX-PD POWER LINK RX TX RS-232 HDBaseT OUT HDMI IN 1. LAN - Connect to a router to send Ethernet signals 2. FW - Use a Mini-B USB to USB A cable to connect to a Windows computers for updating 3. -
Page 6: Connection Diagram
Connection Diagram Video HDBaseT Control BluRay Player Ethernet AT-UHD-EX-100CE-TX-PD POWER LINK Router RX TX RS-232 HDBaseT OUT HDMI IN AT-UHD-EX-100CE-TX-PD FACTORY DIGITAL eSATA ZIGBEE 12V DC HDMI COMPONENT WIFI 1 ETHERNET RESTORE COAX OUT RELAYS WIFI 2 SERIAL 1 AUDIO IN... - Page 7 Connection Diagram (cont.) Video HDBaseT Control Media Player Ethernet Audio AT-UHD-EX-100CE-TX-PD POWER LINK RX TX RS-232 HDBaseT OUT HDMI IN AT-UHD-EX-100CE-TX-PD POWER MENU ENTER > < MUTE VOLUME Laptop AT-UHD-CLSO-612ED BluRay Player INPUT FUNCTION MASTER LINE RS-232 MIC/LINE IN RS-232...
-
Page 8: Specifications
1.06 x 4.69 x 5.00 (inch) Weight Device 0.39 kg 0.86 lbs Certification Power Supply CE, FCC, cULus, RoHS, CCC, RCM Product CE, FCC **4096x2160@50/60Hz & 3840x2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 9: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 10: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 11: Atlona Product Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
