4K HDR HDMI over 100 M HDBaseT™ TX/RX
with Ethernet, Control, PoE, and Return Audio
AT-HDR-EX-100CEA-KIT

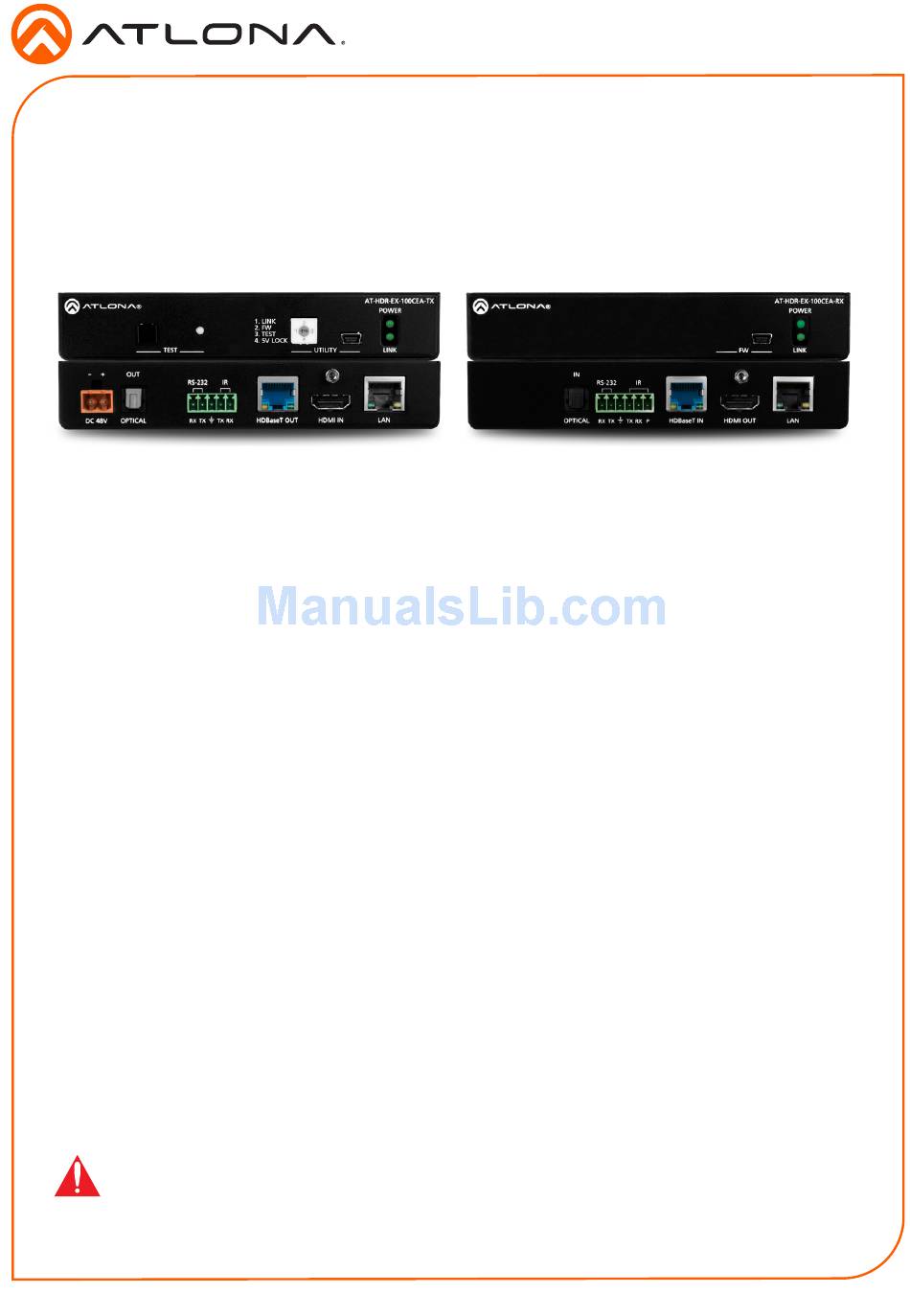

The Atlona AT-HDR-EX-100CEA-KIT is an HDBaseT transmitter/receiver kit for high dynamic
range (HDR) formats. The kit is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with
4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-EX-100CEA-KIT
provides transmission of HDMI, Ethernet pass-through, and bidirectional IR and RS-232 control
signals up to 330 feet (100 meters) over CAT6a/7 cable. This extender kit features visually
lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over
HDBaseT. For additional integration convenience, the transmitter remotely powers the receiver
through Power over Ethernet (PoE). The HDR-EX-100CEA-KIT can transmit digital audio from a
television back to an AV receiver, via a dedicated audio pathway.
The HDR-EX-100CEA-KIT is ideal for residential and commercial applications with the latest
as well as emerging 4K/UHD and HDR sources and displays. It is compatible with all video
resolutions, audio formats, and color space formats supported in the HDMI 2.0b specification,
plus the ability to pass metadata for HDR content. The HDR-EX-100CEA-KIT includes Atlona's
award-winning 10 year limited product warranty and customer support services, so that
integrators can specify, purchase, and install with confidence.
Package Contents
1 x AT-HDR-EX-100CEA-TX
1 x AT-HDR-EX-100CEA-RX
4 x Mounting brackets
8 x Mounting screws
1 x 48V DC power supply
1 x IR emitter
IMPORTANT: Visit http://www.atlona.com/product/AT-HDR-EX-100CEA-KIT for the
latest firmware updates and Installation Guide.
1 x 5-pin captive screw connector
1 x 6-pin captive screw connector
1 x Installation Guide
1
Installation Guide
AT-HDR-EX-100CEA-KIT
Advertisement
Table of Contents
Related Manuals for Atlona AT-HDR-EX-100CEA-KIT
Summary of Contents for Atlona AT-HDR-EX-100CEA-KIT
- Page 1 4K/UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0b specification, plus the ability to pass metadata for HDR content. The HDR-EX-100CEA-KIT includes Atlona’s award-winning 10 year limited product warranty and customer support services, so that integrators can specify, purchase, and install with confidence.
-
Page 2: Panel Descriptions
Installation Guide AT-HDR-EX-100CEA-KIT Panel Descriptions Front Front AT-HDR-EX-100CEA-TX AT-HDR-EX-100CEA-TX AT-HDR-EX-100CEA-RX AT-HDR-EX-100CEA-RX POWER POWER POWER POWER 1. LINK 1. LINK 2. FW 2. FW AT-HDR-EX-100CEA-TX AT-HDR-EX-100CEA-TX AT-HDR-EX-100CEA-RX AT-HDR-EX-100CEA-RX 3. TEST 3. TEST 4. 5V LOCK 4. 5V LOCK POWER POWER POWER... - Page 3 Installation Guide AT-HDR-EX-100CEA-KIT RS-232 / IR Wiring The AT-HDR-EX-100CE-KIT provides both an RS-232 and IR port. RS-232 pass-through is supported, allowing a control system to be connected to either the transmitter or receiver. Connect the included IR emitter to the transmitter and an IR extender (not included) to the receiver.
-
Page 4: Mounting Instructions
AT-HDR-EX-100CEA-KIT Mounting Instructions The AT-HDR-EX-100CEA-KIT includes two mounting brackets and four mounting screws each, which can be used to attach the units to any flat surface. Position one of the mounting brackets, as shown below, aligning the holes on the side of the enclosure with one set of holes on the mounting bracket. -
Page 5: Installation
Cable* Max. Distance @ 4K Max. Distance @ 1080p CAT5e 295 feet (90 meters) 330 feet (100 meters) CAT6 / CAT6a / CAT7 330 feet (100 meters) 330 feet (100 meters) *Atlona recommends TIA/EIA 568-B termination for optimal performance. -
Page 6: Connection Diagram
Installation Guide AT-HDR-EX-100CEA-KIT Connection Diagram Automation Control System UHD Display CT OR RE SET 48 V AT-JUNO-451 O -4 AT -J AT-HDR-EX-100CEA-RX -2 32 IC AL O PT H DM -R X 10 0C I IN -E X- H DM... -
Page 7: Led Indicators
AT-HDR-EX-100CEA-KIT LED Indicators The POWER and LINK LED indicator on the transmitter and receiver unit provides basic information on the current status of the AT-HDR-EX-100CEA-KIT. The information in the table below applies to both the transmitter and receiver unit. POWER... - Page 8 Installation Guide AT-HDR-EX-100CEA-KIT Testing HDBaseT Signal Integrity The AT-HDR-EX-100CEA-KIT has the ability to test the HDBaseT signal integrity through the front panel. Press and release the TEST button, on the front panel of the transmitter, to begin the test. TEST button...
- Page 9 3. TEST This mode sets the transmitter to HDBaseT testing and debug mode. The TEST mode works in conjunction with the Atlona Analyzer. This software is free and is available from http://www. atlona.com/products/AT-HDR-EX-100CEA-KIT. HDBaseT Testing Launch the Analyzer software.
- Page 10 Installation Guide AT-HDR-EX-100CEA-KIT Updating the Firmware The following procedure requires the Atlona Analyzer. If this software is not available, then refer Manually Updating the Firmware (page 11). Launch the Analyzer software. Set the UTILITY dial to 3. Connect a mini-USB to USB-A cable from the UTILITY port, on the transmitter, to a computer.
-
Page 11: Manually Updating The Firmware
AT-HDR-EX-100CEA-KIT Manually Updating the Firmware The following procedure covers manually updating the firmware. This method will be required if not using the Atlona Analyzer. If using the Atlona Analyzer, refer to Updating the Firmware (page 10). Download the firmware .zip file from the firmware tab located at http://www.atlona.com/AT- HDR-EX-100CEA-KIT. - Page 12 • © 2018 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and...
