Summary of Contents for Atlona AT-HDTX-WP

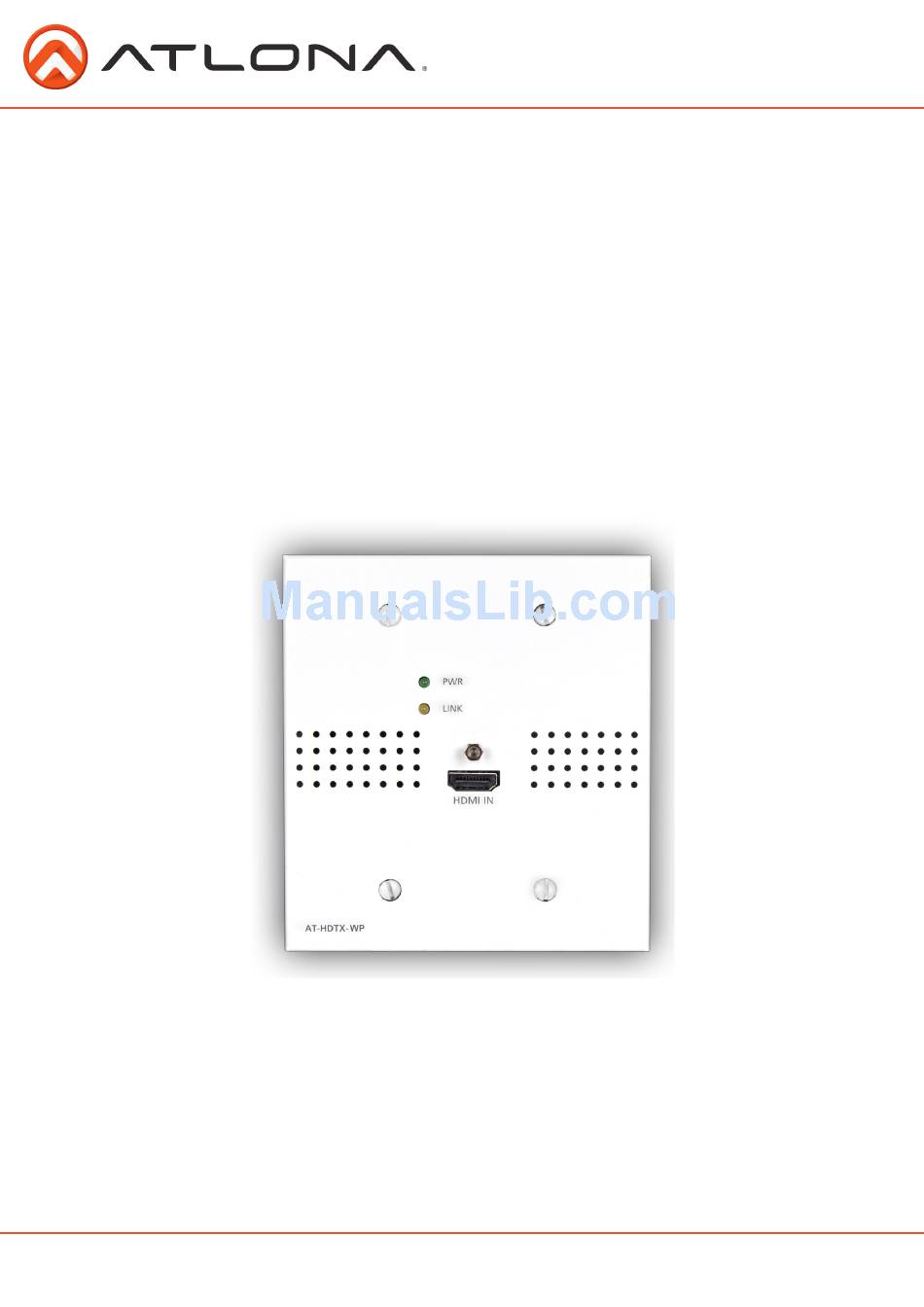

- Page 1 Atlona HDBaseT Wall Plate Transmitter w/RS-232 & IR AT-HDTX-WP User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
6. Wall plate installation ................... 5 7. Captive Screw ................... 6-7 8. Connection ................... 7-9 9. Specifications ................... 10 10. Safety Information ................... 11 11. Warranty ................... 12-13 12. Atlona Product Registration ................... 13 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction Extend uninterrupted 1080p video signal up to 230ft (70m) with the Atlona HDBaseT Wall Plate Transmitter w/RS-232 & IR. With pass through support of 4Kx2K, 1920x1200, lossy & lossless audio, bi-directional IR signals, and RS-232 over a single category cable, the HDTX-WP provides an affordable, high quality, solution for your audio/video and control needs. -
Page 4: Panel Description
Panel Description LINK HDMI IN AT-HDTX-WP 1. Yellow Link LED: Signal Indicator for the CAT5e/6/7 OUT port. LED will remain solid, unless there is an issue with the cable or signal, then it will blink Green Power LED: Power indicator. If power is being received steadily the light will remain solid. -
Page 5: Wall Plate Installation
The UK wall plate screws will be the longer than the US screws. Thread the screws through the two holes in the UK wall plate and into the back box (as shown above). Note: Be sure to plug the CAT cable into the back of the wall plate before full installation Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Captive Screw
The power pin out (see picture 11) and wire configuration (see picture 12 and 13) are shown below. Black: - White: + Note: When using the HDVS-RX do not connect a power supply to the HDTX-WP Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 7: Connection
(transmitter), and ╧ (ground). (See picture 1) Pin out color will differ per RS-232 cable. Connection Diagrams HDMI HDBaseT Control Emitter BluRay Player Laptop LINK LINK HDMI IN AT-HDTX-WP HDMI IN AT-HDTX-WP AT-HDTX-WP AT-HDTX-WP IR IN IR OUT HDMI OUT LINK AT-HDWP-IR AT-HDWP-IR Display 1... - Page 8 WIFI 2 SERIAL 1 BluRay Player AUDIO IN CONTACTS IR OUT VIDEO OUT AUDIO OUT SERIAL 2 3rd Party Control Box LINK HDMI IN AT-HDTX-WP ETHERNET CAT5e/6/7 IN AT-HDRX-RSNET HDMI OUT POWER IR IN IR OUT RS232 FIRMWARE LINK PWR IR...
-
Page 9: Connection
Connection Diagrams Cont. HDMI HDBaseT Power Laptop LINK HDMI IN AT-HDTX-WP POWER MENU EDID MUTE VOLUME INPUT FUNCTION RS232 IR IN IR OUT IR IN IR OUT IR IN IR OUT IR IN IR OUT IR IN IR OUT IR IN... -
Page 10: Specifications
62.44 x 89.02 x 35 mm Weight 0.49 0.22 Temperature Operating Storage 32°F to 104°F -4°F to 140°F 0°C to 40°C 20°C to 60°C HDCP Compliant? Certifications CE, FCC, RoHS, cULus for power supplies Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 11: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 12: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 13: Atlona Product Registration
Atlona’s authorized distributors, dealers and resellers can be found at www.atlona.com . Atlona, Inc Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase.
