Atlona AT-WHD200 User Manual

Wireless hdmi transmitter and receiver box
Hide thumbs Also See for AT-WHD200:

Advertisement

Quick Links

USER MANUAL
WIRELESS HDMI TRANSMITTER

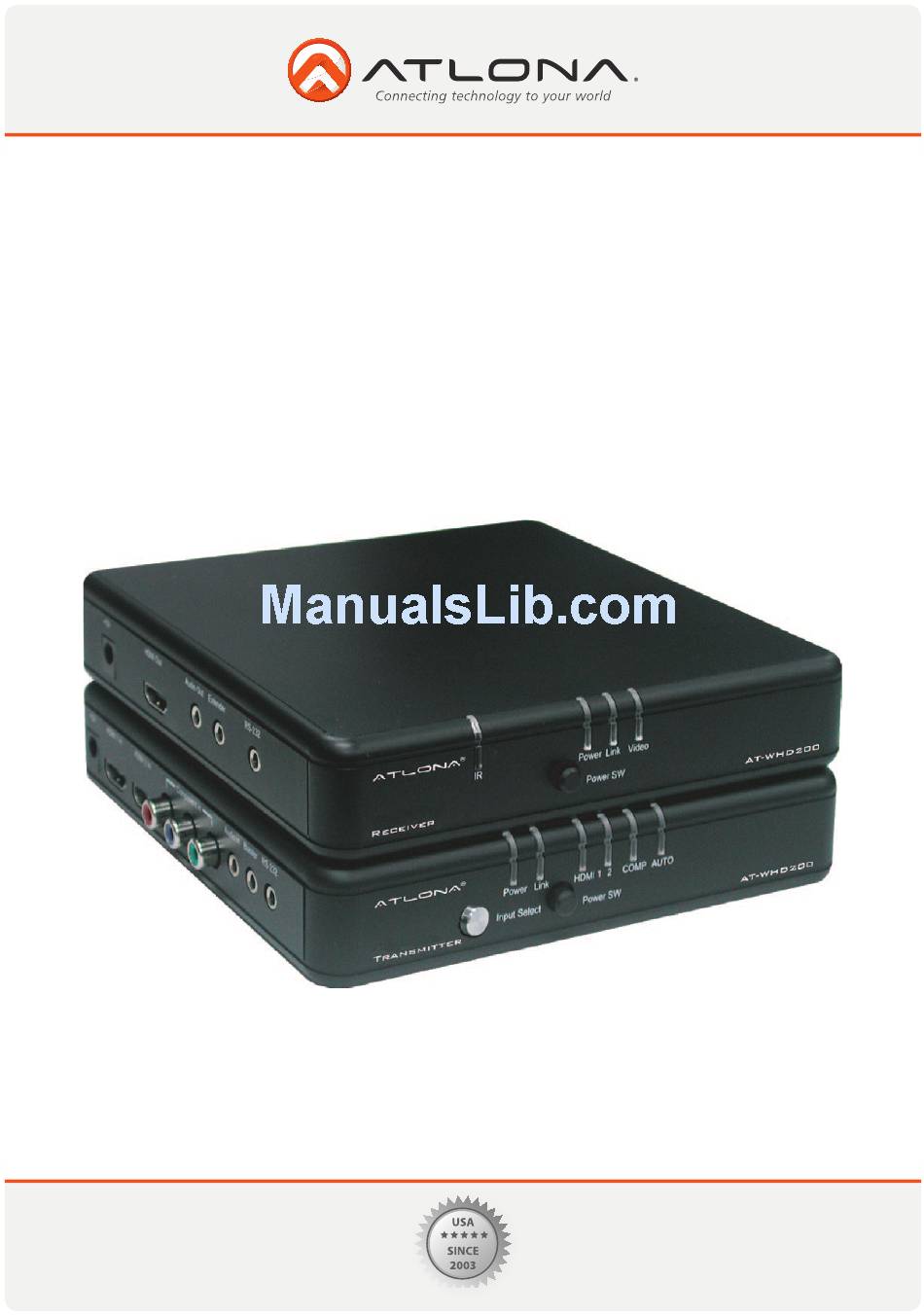

AND RECEIVER BOX AT-WHD200
Toll free: 1-877-536-3976
www.atlona.com
Local: 1-408-962-0515
