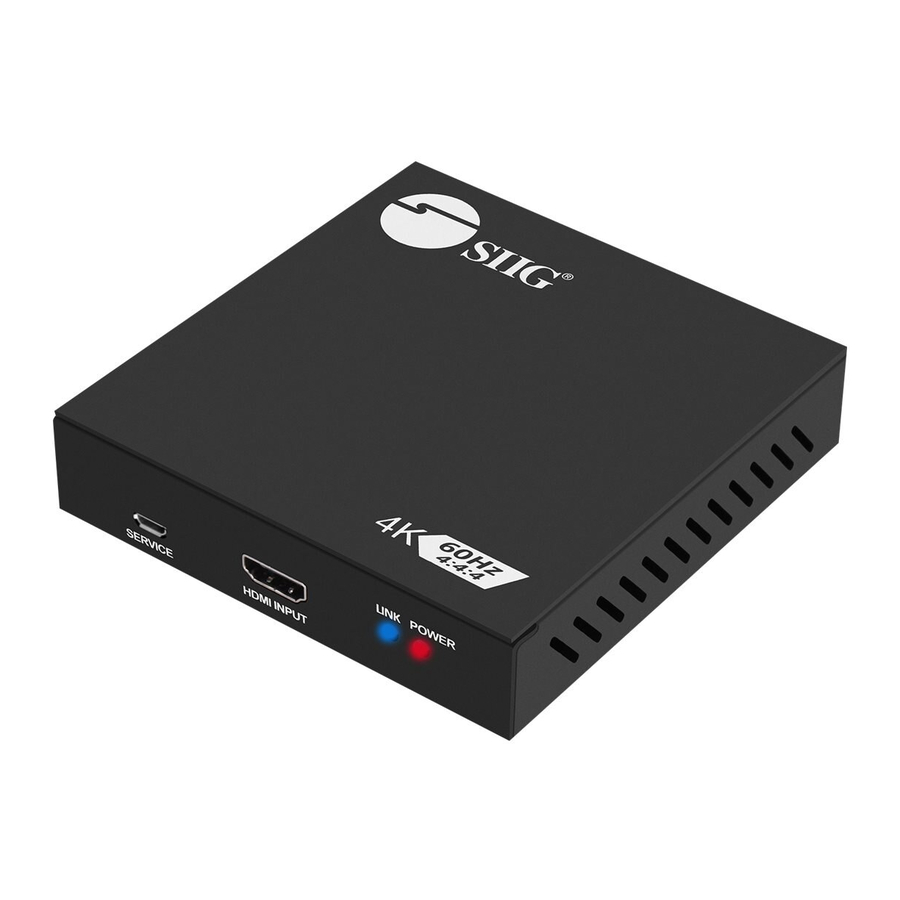

Hdmi 2.0 to displayport 1.2 converter & 1x2 splitter 4kx2k 60hz

Advertisement

Quick Links

Product Features

• DisplayPort 1.2a & HDMI 2.0 compliant
• HDCP 2.2 and 1.4 compliant
• HDMI input supports video bandwidth up
to 18Gbps.
• The EDID automatically sends the com
plete video feedback to media player and
provides with high-resolution video quality
• Resolution up to 4Kx2K@60 4:4:4 8bits
• Supports Stereo audio
• The dual DisplayPort outputs support link
rate RBR/HBR/HBR2
• Firmware upgrade via USB port
• Rated current 180mA

Package Contents

• HDMI 2.0 to DisplayPort 1.2 converter
• DC 12V/2A power adapter
• US plug
• EU plug
• Quick start Guide

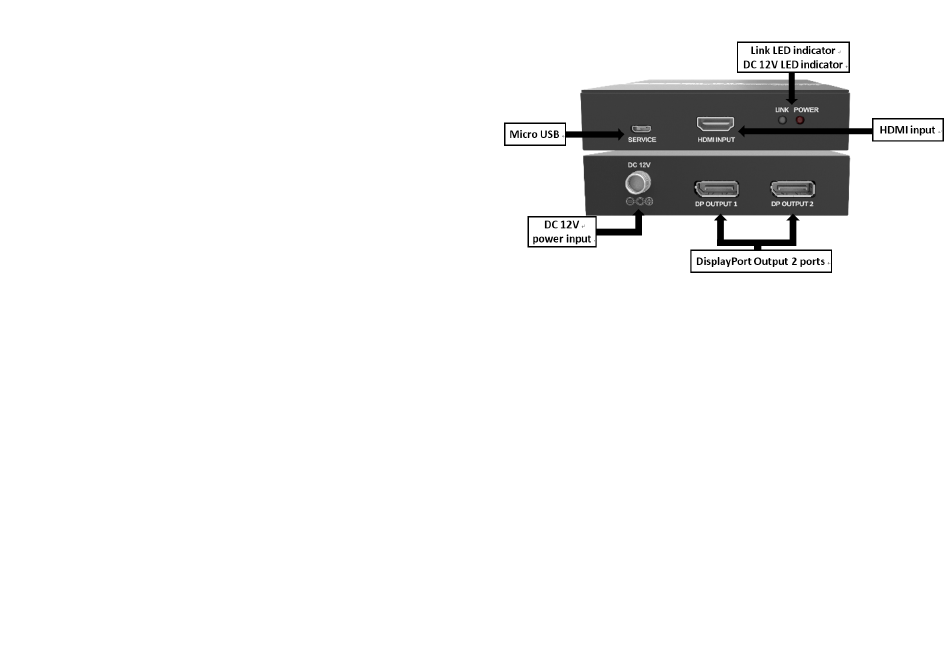

Layout

LED Indicator

1. Link LED Indicator:
• Off: No light when the system is in power
saving mode
• Blinking: Blue light when system is active,
wait for Sink to be attached and ready
• On: Blue light is on when the system is
active and Sink EDID ready
2.DC 12V LED Indicator:
• When the red light is on, it means the
power is on
