E2S BEXCS11005D230AC-AM Instruction Manual

1) Introduction

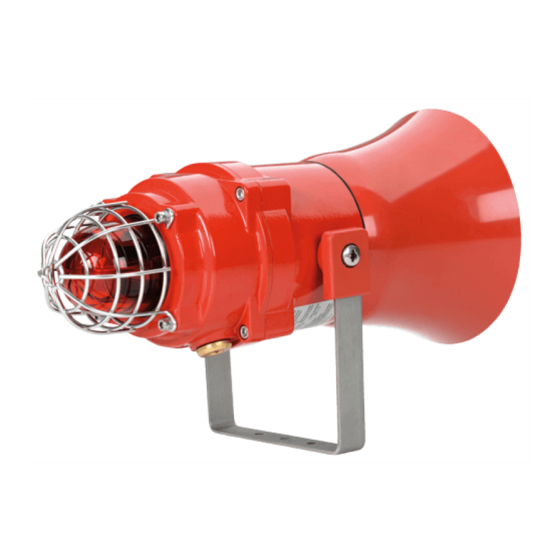

The BExCS110-05D is a second generation flameproof
combined sounder / beacon which is certified to the
European Standards EN 50014: 1997 and EN 50018: 2000
and meets the requirements of the ATEX directive 94/9/EC.
The sounder section produces loud audio warning signals
and the beacon section produces a synchronised visual
warning signal. The unit can be used in hazardous areas
where potentially flammable atmospheres may be present.
Thirty-two different first stage audio alarm sounds can be
selected by internal switches, and each one can be externally
changed to a second or third stage alarm sound (see tone
table on Page 5). The sounder produces output levels in the
110dB(A) range and the beacon produces an output level of
5 joules. The unit can be used in Zone 1 and Zone 2 areas
with gases in groups IIA and IIB and with Temperature
Classifications of T1, T2, T3 and T4.
2) Marking
All units have a rating label, which carries the following
important information:-
BExCS110-05D
Unit Type No.
Input Voltage: DC Units
AC Units
EEx d IIB T4 (T
Code:
KEMA 01ATEX2223
Certificate No.
Epsilon x:
Gas Group and
Category:
CE Marking:
Notified Body No.
Warnings:
DO NOT OPEN WHEN AN EXPLOSIVE
GAS ATMOSPHERE IS PRESENT
COVER BOLTS CLASS A4-80
USE HEAT RESISTING CABLES AND
CABLEGLANDS (Rated 95ºC) AT
AMB. TEMPERATURES OVER 40ºC
Year of Construction /
Serial No.
3)
Type Approval Standards
The units have an EC Type examination certificate issued by
KEMA and have been approved to the following standards:-
_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. IS 2441-P
INSTRUCTION MANUAL (ATEX)
Important Notice: The BExCS110-05D is not for sale, re-sale, installation, or use within
the United States of America as a sole, multiple, integrated, or incorporated unit.
12V or 24V or 48V
230V or 115V
. –50 to +55
amb
II 2G
0344
i.e. 02 / 1CS21000001
Issue C 04-07-02
BExCS110-05D
Flameproof Combined Sounder / Beacon
EN 50014 : 1997
EN 50018 : 2000
4)
Installation Requirements
The unit must be installed in accordance with the latest
issues of the relevant parts of the BS EN 60079
specifications or the equivalent IEC specifications –
Selection,
apparatus for use in potentially explosive atmospheres (other
than mining applications or explosive processing and
manufacture):-
BS EN 60079-14 : 1997
BS EN 60079-10 : 1996
The installation of the unit must also be in accordance with
any local codes that may apply and should only be carried
out by a competent electrical engineer who has the
necessary training.
5)
Zones, Gas Group, Category and Temperature
Classification
The BExCS110-05D unit has been certified EEx d IIB T4
(Tamb. –50 to +55ºC). This means that the units can be
°
C)
installed in locations with the following conditions:-
Area Classification:
Zone 1
Zone 2
Gas Groupings:
Equipment Category:
Temperature Classification:
Ambient Temperature Range:
Sheet 1 of 6
General Requirements
Flameproof Enclosure 'd'
Installation and maintenance
Electrical Installations in Hazardous
Areas (other than mines)
Classification of Hazardous Areas
Explosive gas air mixture likely to occur in
normal operation.
Explosive gas air mixture not likely to occur,
and if it does, it will only exist for a short time.
Group IIA Propane
Group IIB Ethylene
2G
o
T1 400 C
o
T2 300 C
o
T3 200 C
o
T4 135 C
-50°C to +55°C
