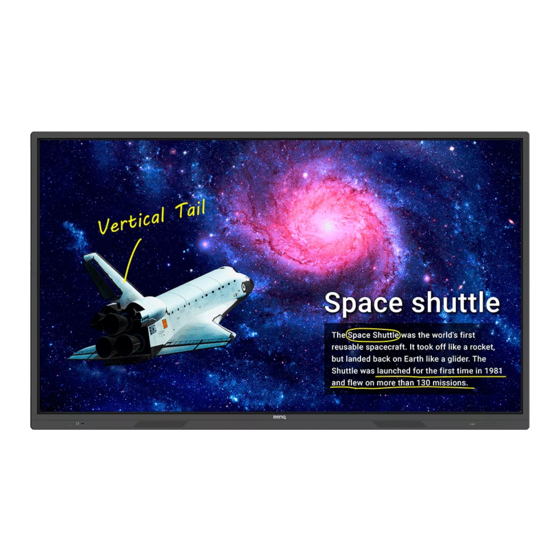

RE6501/RE7501/RE8601/RE9801 Interactive Flat Panel User Manual...
Page 2
Disclaimer BenQ Corporation makes no representations or warranties, either expressed or implied, with respect to the contents of this document. BenQ Corporation reserves the right to revise this publication and to make changes from time to time in the contents thereof without obligation to notify any person of such revision or changes.
Please visit the website for the latest version of this document and other product information. Available files vary by model. 1. Make sure your computer is connected to the Internet. 2. Visit the local website from www.BenQ.com. The website layout and content may vary by region/country. - User manual and related document: www.BenQ.com...
Notes on the LCD panel of this display ........7 Safety notice for remote control ..........8 Battery safety notice ..............8 BenQ ecoFACTS ................9 Package contents ............... 10 Setting up the display............11 Mounting the display ..............11 Parts of the display and their functions ......
Safety warnings and precautions Safety warnings and precautions THIS EQUIPMENT MUST BE GROUNDED To ensure safe operation, the three-pin plug must be inserted only into a standard three-pin power outlet which is effectively grounded through normal household wiring. Extension cords The lightning flash with arrowhead used with the equipment must have symbol, within an equilateral triangle, is...
Important safety instructions Important safety instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
If a still image is required for a display, it is recommended to enable Pixel shift. • RE series does not support portrait use; portrait use may cause display damage. BenQ warranty will not cover faulty usage. Safety notice for remote control •...
BenQ ecoFACTS BenQ has been dedicated to the design and development of greener product as part of its aspiration to realize the ideal of the “Bringing Enjoyment 'N Quality to Life” corporate vision with the ultimate goal to achieve a low-carbon society. Besides meeting...
Package contents Package contents Open the sales package and check the contents. If any item is missing or damaged, please contact your dealer immediately. Power cord (By LCD display VGA cable x 1 Quick start guide Region) USB cable x 1 AAA battery x 2 Remote control HDMI cable x 1...
3. Remove the desktop stands from the display if installed. 4. Identify the wall mounting screw holes on the back of the display as shown in the illustration. RE6501 *Screw type: M8*20L *Screw type: M8*20L RE7501 *Screw type: M8*20L RE9801 RE8601 *Screw type: M8*20L...
Page 12
Setting up the display 5. Install the wall mounting bracket on the display and attach the Thickness of display to the wall according to the wall the mounting bracket’s mounting instructions. The length of the LCD display bracket screw should exceed the thickness of the wall mounting bracket by at least 25 mm.
Parts of the display and their functions Parts of the display and their functions Front/Rear panel Name Description Used to isolate the power supply from the system. • When the switch is set to ON (I), the system will Power Switch automatically enter standby mode.
Parts of the display and their functions Accesses multimedia files on USB drives directly. OPS for USB USB 2.0 3.0. Accesses multimedia files on USB drives directly. OPS for USB USB 2.0 3.0. External computer touch signal input. When connecting external computer, besides connecting external computer VGA and audio signals, external computer's USB port needs TOUCH...
Page 15
Parts of the display and their functions External computer touch signal input. When connecting external computer, besides connecting external computer VGA and audio signals, external computer's USB port needs to be connected to the corresponding group. Under the condition that driver is TOUCH-USB installed, external computer can be touch controlled through the equipment (touch function is effective in VGA and HDMI channel...
Parts of the display and their functions Remote control POWER Turn the display on or off. INPUT Select the input source. CH RETURN Channel return Note: It is only working on some specific regions. INFO Show the information of the current input source. Favorite program Note: It is only working on some specific regions.
Page 17
Parts of the display and their functions Open the WPS office app in Android M-Player Open the Media Player app in Android. X-Sign Open the X-Sign app in Android. Setting Open the setting function in Android. BLANK Blank and mute the screen (the screen will turn black) when the OSD menu is off.
Parts of the display and their functions Using the remote control Installing remote control batteries 1. Open the remote control battery compart- ment cover. 2. Insert the supplied batteries ensuring that the positive and negative marked battery terminals match the (+) and (-) marks in the battery compartment.
Page 19
Parts of the display and their functions Remote control usage tips • To power on/off the display, aim the top front of the remote control directly at the display’s remote control sensor window when you press the buttons. • Avoid getting the remote control wet or store it in humid environments (like bathrooms).
Connection Connection Connecting the VGA input 1. Connect the VGA jack on the display to the VGA output jack on a computer using a D-Sub (15-pin) cable. 2. Connect the computer’s audio output jack to the PC-AUDIO jack on the display with a suitable audio cable.
Connection Connecting the digital inputs 1. Connect the HDMI output jack of a computer or A/V device (such as a VCR or DVD player) to the HDMI1/HDMI2 input jack on the display using an HDMI cable. 2. To view images from this input, press on the remote control to switch to the respective input source.
Connection Connecting the video output For computer: 1. Use HDMI cable to connect from HDMI-OUT to the respective jacks of the devices. 2. Plug in power cord, and switch power on. 3. Press on the remote control to turn on the display. HDMI OUT Projector...
Connection Connecting to serial port Directly connect the computer to RS232 ports on the input/output terminals. RS-232C cable Computer • The applicable cable is not supplied and should be purchased separately. • This connection is applicable to straight-through RS-232C cable only. •...
Connection Connecting power Plug one end of the power cord into the Power jack on the display and the other end into an appropriate power outlet (if the outlet is switched, turn on the switch). A C I N • The supplied power cord is suitable for use with 100-240V AC power only. •...
Basic operations Basic operations Turning the display on or off 1. Be sure to follow the instruction of Connecting power on page 2. Before turning on the display, make sure the Power switch is set to ON. The system will enter standby mode. A C I N Power Switch...
Follow the on-screen instructions or the steps below to start up your display and complete the initial setup. 1. Turn on the display. Wait for the display to boot up with the BenQ screen. This may take a moment.
Page 27
Basic operations Account Information Three types of accounts are provided: Guest, Admin, and Multiple users. Guest It's for public use under Guest account. You are able to change the headshot, wallpaper, volume and brightness. Admin Log in as Admin. Under Personal settings, you can change the headshot, wallpaper, and password.
Page 28
To add a new user, please contact your IT manager to create your account through BENQ IAM web service. Creating a new account 1. As an administrator to create a new account for regular users, go to BenQ Service website: https://ams.benq.com. Suggested browsers are Chrome, Firefox. 2. Log in and choose IAM.
Page 29
Basic operations 4. Fill in the following fields. Be sure to enter the correct email address and activate the X-Sign and Broadcast service. Click Submit to create a new account. You can esaily switch to different services, X-Sign, DMS, AMS, Broadcast, by clicking the icon on the upper right corner.
• Drag the OSD menu up from the bottom-center of the screen. Downloading software BenQ may periodically release software updates that may add functions or applications associated with your display. To check if there is a software update available for your...
Page 31
Basic operations Network setting On the home screen, go to Setting > System > About > Status If there is no IP address shown, please connect the display to the ethernet cable. Wireless connection You must use a wireless adapter in order to connect the display to the Internet wirelessly.
Page 32
• If you are connecting to a secured wireless network, enter the password for the wireless network access when prompted and tap Connect. • For wireless connection, BenQ shipment does not include wireless dongles, therefore, you may purchase it separately via the local dealer.
Basic operations Updating software Whenever a new version of software is available, the system will automatically detect the update and will prompt you to download it every time you turn on the display. If you want to update the software, choose NETWORK UPDATE or USB UPDATE to continue the update.
Page 34
Basic operations Using the touch screen You can use the optical touch screen to control your operating system. The touch screen can emulate basic mouse functions and supports multi-touch functions for Windows 10/ 8/7/XP, Mac OS 10.11~10.14, Chrome OS 58, and Android. The following table shows a list of gestures you can use on the touch screen.
Page 35
Basic operations OS functions Gesture actions For Windows 7, Windows 8, and Windows 10 Drag one finger left or right. Selection Quickly drag your finger (Flick) in a desired direction. Pan up / Pan down / Back / Forward Multi-touch functions For Windows 7 - Home Premium, Professional, Enterprise and Ultimate versions 1.
Page 36
Basic operations OS functions Gesture actions • Move two fingers in opposing directions. • Use one finger to pivot around another. Supported by specific applications Tap two fingers simultaneously. The target should be the midpoint between the fingers. Supported by specific applications For Windows XP and Windows 7 Press and hold for 4 seconds.
Page 37
Basic operations Gesture Description Slide to pan Slide is primarily used for panning interactions but can also be used for moving, drawing or writing. Slide can also be used to target small, densely packed elements by scrubbing (sliding the finger over related objects such as radio buttons). Swipe to select, command, and move Sliding the finger a short distance, perpendicular to the panning direction, selects objects in a list or grid (ListView and...
Basic operations Important instructions for using the touch screen Please clean the frame when there is sign of malfunction on the touch screen. • Before you clean the screen, make sure the display is turned off, and unplug the power cord.
Menu operations Menu operations One touch menu operation Drag the OSD menu up from the bottom-center of the screen, as shown below, to enter the OSD menu. Settings menu Input settings Press on the remote control, Menu on the front panel, or drag from the bottom middle to the center of the screen to enter the OSD menu.
Page 40
Menu operations General settings Go to General to access the Audio and Picture settings. Audio • Under Audio, Use the volume bar to adjust the volume for the display. • Directly swipe to enable or disable Mute. • Go to More to enter Audio menu. Picture •...
Page 41
Menu operations Eye-Care solutions Blue light with wavelengths under 455 nm could affect vision and age the eyes. Eye-Care solution is designed for eyesight protection: the display provides proprietary eye-care technology with zero-flicker performance and ultra-low blue light emission, preventing eyestrain, eye fatigue and macular degeneration caused by extended sessions in front of a display.
Page 42
Menu operations Audio settings • Press /// on the remote control and press OK to confirm or directly click an item. • Press on the remote control or click a blank area outside the menu to exit the menu. Menu Description Drag the knob to adjust the balance.
Page 43
Menu operations Picture settings • Press /// on the remote control and press OK to confirm or directly click an item. • Press on the remote control or click a blank area outside the menu to exit the menu. Menu Description Picture Mode •...
Page 44
Menu operations Screen settings Go to Device > Screen to access the Screen settings. • Press /// on the remote control and press OK to confirm or directly click an item. • Press on the remote control or click a blank area outside the menu to exit the menu.
Page 45
Menu operations • The display automatically turns off when no one is detected within the sensor’s range for a long period of time. • Use the H Position, V Position, Clock rate, and Phase functions to manually adjust the image. Menu Description Press to move the screen to the left or right.
Page 46
Menu operations • Press on the remote control or click a blank area outside the menu to exit the menu. Menu Description Key lock Press OK on the remote control or click the switch to lock or unlock the buttons on the front panel of the display. IR lock Press OK on the remote control or click the switch to lock or unlock the remote control IR sensor on the front panel of the...
Menu operations System settings On the home screen, select Setting > System to enter system settings. • Press on the remote control or click a blank area outside the menu to exit the menu. Options Description Click to set date, time, and their formats in Android. Date &...
Page 48
Menu operations Proxy setting • Go to Network > Ethernet. • Press Proxy to go to the proxy setting. • Enter the proxy host name. • Enter the using channel.
Page 49
Menu operations Startup & Shutdown • Go to System > Startup & Shutdown. • For Startup source, you can choose Last channel or other sources.
Page 50
Menu operations • For Built-in OPS startup option, you can choose Startup only through OPS built-in startup option or startup through any channel.
Page 51
Menu operations • For Power off reminder, you can set on or off time. Schedules can be made by choosing the days of the week.
Android system interface Android system interface Note that this is a closed Android OS. Download and use of unauthorized apps on this system are not available. Main interface The display launches the Android main interface by default. To navigate the Android main interface: •...
Page 53
Android system interface Floating Annotation Toolbar The Floating Annotation Toolbar is a convenient function that allows you to quickly write or create annotations on any screen that the display is showing. Under any input source or in the Android interface, touch and hold two fingers spaced about 20 – 50 mm apart on the screen for more than two seconds to launch the Floating Annotation Toolbar menu as shown below.
Page 54
Android system interface AMS file manager overview • Tap to launch AMS. With this application, you can access your personalized workspace environment and settings and manage your files and accounts on any IFP that you have logged into. • While logging in, you will see four main parts, as described in the table below:...
Page 55
Android system interface Item Description Source Selection • You can open files from the cloud storage services like Google Drive, Dropbox, or Samba. • You can also open files from the local devices like Internal, My Folder, or connected USBs. The icon next to Google Drive, Dropbox shows that the account is bound to AMS service.
Page 56
Android system interface Play/pause the current playback. Play the next image. Rotate the current image counter-clockwise. Rotate the current image clockwise. Go to the settings. See the information about the file name, creation time, file size, and the file format. Supported image format (maximum resolution) File Image...
Page 57
Android system interface Audio Select an audio file you want to play and perform any of the functions shown on the screen. Icon Function Repeatedly play audio files in the playlist. Play the previous audio file. Play/pause the current audio file. Play the next audio file.
Page 58
Android system interface File Format Audio Codec Supported range .mp3 MPEG Audio MPEG1/2 layer3 Sample Rate: 8K~48KHz Layer3 Bit Rate: 32K~320Kbps .ogg Vorbis Vorbis Sample Rate: 8K~48KHz Bit Rate: max 256Kbps .wav LPCM Sample Rate: 8K~192KHz Bit Rate: max 320Kbps Video Select a video file you want to play on the display and perform any of the functions shown on the screen.
Page 59
Android system interface Supported video format (Codec) Up to 4K resolution File Codec Extensions Video Audio Maximum transmit ratio .3g2 H.263 AAC, AMR_NB 1920*1088 30 Fps, 5Mbps .3gp H.264 3840*2160 30 Fps, 160Mbps H.263 1920*1088 30 Fps, 5Mbps MPEG-4 1920*1088 30 Fps, 50Mbps .avi H.263 MPEG1/2...
Tap the desired app to launch the app. BenQ Suggests to launch BenQ Suggests. With this application, you can view apps suggested by BenQ for download. Tap the category on the left panel to browse the suggested apps. Tap an app from the selected category to view a basic description of the app.
Apps Tap to show the suggested apps in the Corporation Corporation ( category. Tap to close BenQ Suggests. Exit ( InstaShare to launch InstaShare. With this application, you can mirror the display's screen on your smartphone or tablet for hands-on annotation and mirror the screen of your smartphone or tablet on the display.
Working with Android OS - Operate the display by using your mobile device as a remote control. Once connected, any operations on the display or mobile device will also show up on your mobile device and display. You can also tap Setting ( ) in the lower right corner of the display to modify the settings for InstaShare, such as the InstaShare ID name, connect code, or mirroring confirmation message.
Apps 2. Tap Manage Printers to choose which printer that you want to use. 3. To select a printer: • Tap an option from the list of available printers on the left panel. • Tap Scan for Wi-Fi Printers to search for printers automatically. •...
Page 65
Working with Android OS 2. Tap the function menu on the top panel to access the file format's various functions. The description below is for a PowerPoint file, the function menus for other file formats will vary. Function Description File Tap to open, save, share, print, and manage your presentations.
Working with Android OS Side Tool Bar Function Description Tap to return to Home interface. Home ( Tap to return to previous operation interface. Return ( Tap to switch tasks between recent apps and input sources. SwitchQ ( Tap to enter EZWrite 5.0 software. EZWrite 5.0 ( Tap to enter Connection to select the input source.
Apps Blizz Blizz is a video-conferencing app that is installed in the display by default. It allows you to conveniently conduct video conference meetings with any other Blizz users. 1. On the home screen, select Apps >Blizz ( 2. Select Sign In if you want to create a new meeting, select Join a Meeting if you want to join an already created meeting.
Page 70
Android, so access to Google Play™ is not available. APK cannot be installed in the default location unless given permission by the management units. Contact your BenQ dealer for the required support for management permission. Without management permission, installing function won’t work. There is no...
• Have you chosen an unsupported output resolution on the computer? Refer to Dimensions (RE9801) on page 74 to select a supported resolution and try again. • Have you chosen an unsupported output resolution on the DVD or Blu-ray disc player? Refer to...
Page 77
Troubleshooting The remote control does • Have you locked the remote control function? Unlock the not work function and try again. • Check for incorrect battery orientation. • Check for dead batteries. • Check your distance and angle from the display. •...
Page 78
Troubleshooting No picture and no sound • Check whether the machine is started state. • Check whether signal wire is well plugged, whether INPUT is corresponding to it. • If in internal computer mode, check whether internal computer is started. With horizontal or •...
• Some models of BenQ's displays contain additional USB ports for connection to more devices such as a special headphone to assist the hearing impaired. • All BenQ displays come with user manuals, which are available on the BenQ's web site (www.BenQ.com). Other types of documents may be available upon requests.
