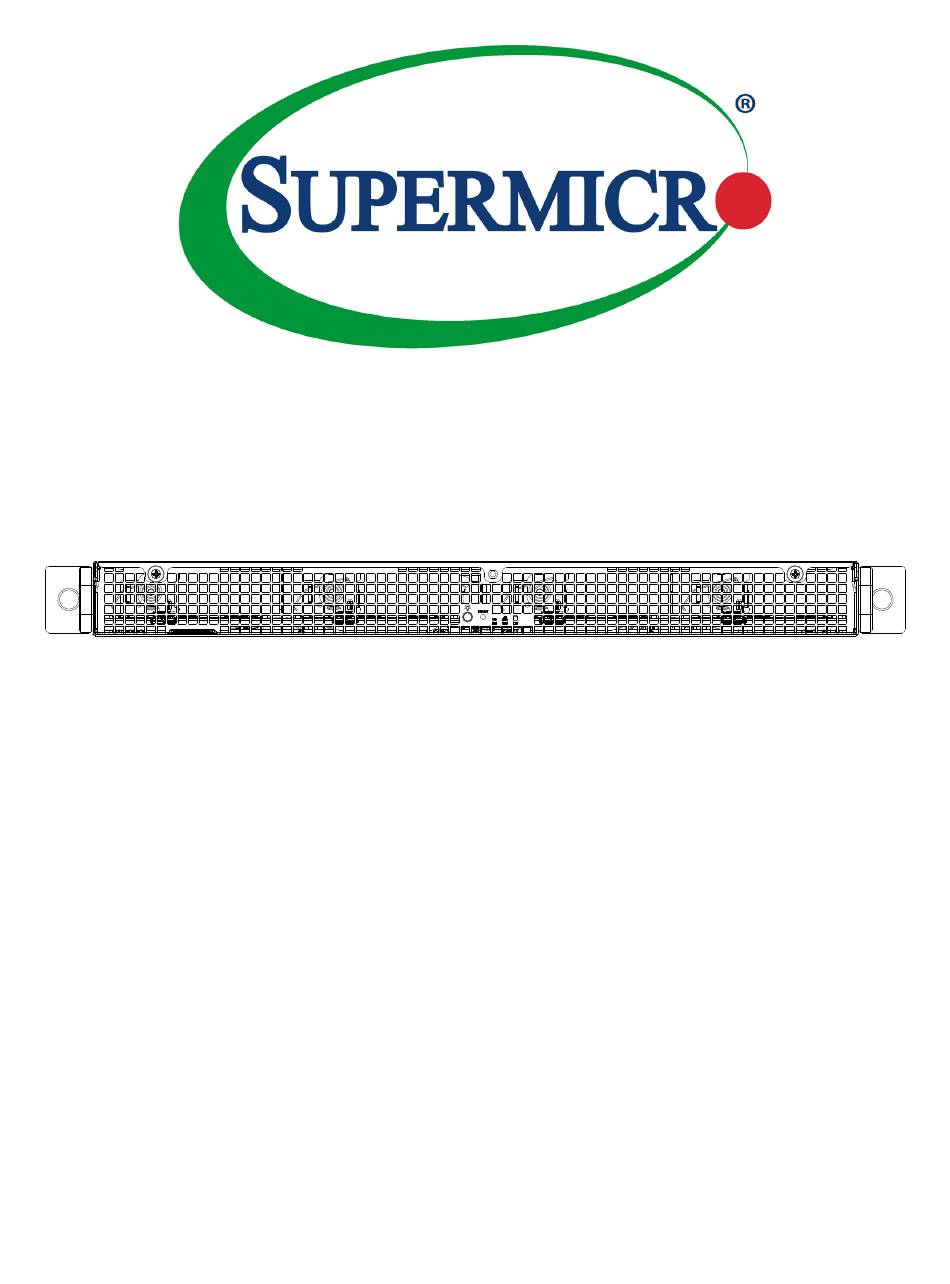

SuperStorageSystem
®
SSG-5019D8-TR12P
User's Manual
Revision 1.0a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SuperStorageSystem SSG-5019D8-TR12P and is the answer not in the manual?

Questions and answers

Related Manuals for Supermicro SuperStorageSystem SSG-5019D8-TR12P

Summary of Contents for Supermicro SuperStorageSystem SSG-5019D8-TR12P

  • Page 1 SuperStorageSystem ® SSG-5019D8-TR12P User's Manual Revision 1.0a...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 If you have any questions, please contact our support team at: support@supermicro.com This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level. Warnings Special attention should be given to the following symbols used in this manual.

  • Page 4: Table Of Contents

    Preface Contents Chapter 1 Introduction 1.1 Overview ..........................8 1.2 Unpacking the System ......................8 1.3 System Features ........................9 1.4 Server Chassis Features ....................10 Control Panel ........................10 Front Features ........................11 Rear Features ........................12 1.5 Motherboard Layout ......................13 Quick Reference Table ......................14 Chapter 2 Server Installation 2.1 Overview ..........................17 2.2 Preparing for Setup ......................17 Choosing a Setup Location ....................17...
  • Page 5 SuperStorageSystem SSG-5019D8-TR12P User's Manual Motherboard Battery ......................30 3.4 Chassis Components ......................31 Hard Drives ........................31 System Fans ........................33 Installing an Expansion Card ....................34 Power Supply ........................36 Chapter 4 Motherboard Connections 4.1 Power Connections ......................37 4.2 Headers and Connectors ....................38 4.3 Rear I/O Ports ........................43 4.4 Front Control Panel ......................46...
  • Page 6 Preface Appendix A BIOS Error Codes Appendix BStandardized Warning Statements for AC Systems Appendix C System Specifications Appendix D UEFI BIOS Recovery Appendix E Dual Boot Block...
  • Page 7 SuperStorageSystem SSG-5019D8-TR12P User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 8: Overview

    AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply PWS-407P-1R 1.2 Unpacking the System Inspect the box the SuperStorageSystem SSG-5019D8-TR12P was shipped in and note if it was damaged in any way. If any equipment appears damaged, please file a damage claim with the carrier who delivered it.

  • Page 9: System Features

    Chapter 1: Introduction 1.3 System Features The following table provides you with an overview of the main features of the SSG-5019D8-TR12P. Please refer to Appendix C for additional specifications. System Features Motherboard X11SDV-8C-TP8F Chassis CSE-801LTS-R407CP Intel® Xeon® D-2146NT SoC with a TDP of up to 80W Socket Type Embedded Processor Memory...

  • Page 10: Server Chassis Features

    SuperStorageSystem SSG-5019D8-TR12P User's Manual 1.4 Server Chassis Features Control Panel The switches and LEDs located on the control panel are described below. See Chapter 4 for details on the control panel connections. Figure 1-1. Control Panel View Control Panel Features...

  • Page 11: Front Features

    Chapter 1: Introduction Front Features The CSE-801LTS-R407CP is a 1U chassis See the illustration below for the features included on the front of the chassis. Figure 1-2. Chassis Front View Front Chassis Features Item Feature Description Control Panel Front control panel, see previous section for details Mounting Brackets Brackets to mount the chassis to a rack...

  • Page 12: Rear Features

    SuperStorageSystem SSG-5019D8-TR12P User's Manual Rear Features The illustration below shows the features included on the rear of the chassis. Figure 1-3. Chassis Rear View Rear Chassis Features Item Feature Description Power Supplies Two redundant 400W power supplies I/O Ports See Chapter 4 for details on the I/O ports...

  • Page 13: Motherboard Layout

    Chapter 1: Introduction 1.5 Motherboard Layout Below is a layout of the X11SDV-8C-TP8F with jumper, connector and LED locations shown. See the table on the following page for descriptions. For detailed descriptions, pinout information and jumper settings, refer to Chapter 4. JMD1_SRW1 LEDM1 SLOT6...

  • Page 14: Quick Reference Table

    SuperStorageSystem SSG-5019D8-TR12P User's Manual Quick Reference Table Jumper Description Default Setting JBT1 CMOS Clear Open: Normal, Closed: Clear CMOS JI2C1, JI2C2 SMB to PCI-E Slots Enable/Disable Pins 2-3 (Disabled) JNS1 Mini-SAS HDD NVMe/SATA Mode Select Pins 1-2: SATA (Default), Pins 2-3: NVMe...
  • Page 15 Chapter 1: Introduction Connector Description JSD1 SATA Disk On Module (DOM) Power Connector JSIM1 Nano SIM Slot for M.2 B-Key WAN card support JSMB1 System Management Bus Header JSTBY1 +5V Standby Power Header JTGLED1 LAN7/LAN8 Activity LED Header JTGLED2 LAN5/LAN6 Activity LED Header JTPM1 Trusted Platform Module (TPM)/Port 80 Connector LAN1 - LAN4...
  • Page 16 SuperStorageSystem SSG-5019D8-TR12P User's Manual DDR4 1866/2133/2400 DDR4 1866/2133/2400 JLAN2 JLAN1 PCIE 3.0 x8 PCIE 3.0 x4 JPCIE1 SLOT7 PCIE 3.0 x8 I350 AM4 PE2[15:12] PE2[7:0] PCIE 3.0 x16 JPCIE2 SLOT6 PCIE 3.0 x16 PE1[15:0] PCIE 3.0 x4 PE2[11:8] M.2(M-key)CONN JLAN3 10G PHY SATA3.0#5...

  • Page 17: Chapter 2 Server Installation

    Chapter 2: Server Installation Chapter 2 Server Installation 2.1 Overview This chapter provides advice and instructions for mounting your system in a server rack. If your system is not already fully integrated with processors, system memory etc., refer to Chapter 4 for details on installing those specific components. Caution: Electrostatic Discharge (ESD) can damage electronic components.

  • Page 18: Server Precautions

    SuperStorageSystem SSG-5019D8-TR12P User's Manual • In single rack installations, stabilizers should be attached to the rack. In multiple rack in- stallations, the racks should be coupled together. • Always make sure the rack is stable before extending a server or other component from the rack.

  • Page 19: Circuit Overloading

    Chapter 2: Server Installation Circuit Overloading Consideration should be given to the connection of the equipment to the power supply circuitry and the effect that any possible overloading of circuits might have on overcurrent protection and power supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

  • Page 20: Installing The System Into A Rack

    SuperStorageSystem SSG-5019D8-TR12P User's Manual 2-3 Installing the System into a Rack This section provides information on installing the chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly.

  • Page 21: Installing The Chassis Into A Standard Rack

    Chapter 2: Server Installation Installing the Chassis into a Standard Rack The chassis package includes two sets of rack rails, one set for the right side of the chassis and one for the left. Each set consists of an inner rail that is fixed directly to the chassis, a middle rail, and an outer rail that attaches to the rack.
  • Page 22 SuperStorageSystem SSG-5019D8-TR12P User's Manual Attaching the Rail to the Rack (see Figure 2-3) 1. On the middle/outer rail assembly, push the front yellow clip in while pulling the front bracket out. 2. Push the rear yellow clip in while pulling the rear bracket out.
  • Page 23 Chapter 2: Server Installation Installing the System into a Rack 1. With the middle rails pointing toward the front of the rack, extend them both until the caution note becomes visible. 2. Align the inner rails on the chassis with the of the middle rails, which have been attached to the rack.
  • Page 24 SuperStorageSystem SSG-5019D8-TR12P User's Manual Removing a System from a Rack 1. Push the yellow clip at the front of the each rail backwards. 2. Push the bracket hooks apart. 3. Push the bracket out of the mounting holes. Figure 2-5. Removing the System from a Rack...

  • Page 25: Chapter 3 Maintenance And Component Installation

    SuperStorageSystem SSG-5019D8-TR12P User's Manual Chapter 3 Maintenance and Component Installation This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and/or part numbers given. Installation or replacement of most components require that power first be removed from the system.
  • Page 26 Chapter 3: Maintenance and Component Installation Thumbscrews Edge fits under the lip in the middle of the chassis Thumbscrews Figure 3-1. Removing the Chassis Cover...

  • Page 27: Motherboard Components

    SuperStorageSystem SSG-5019D8-TR12P User's Manual 3.3 Motherboard Components Note: Check the Supermicro website for recommended memory modules. Important: Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Memory Support The X11SDV-16C/-12C/-8C-TP8F motherboard supports up to 256 GB of ECC RDIMM or 512 GB of ECC LRDIMM DDR4 memory with speeds of up to 2133 MHz speed in four (4) memory slots.

  • Page 28: Dimm Module Population Sequence

    Chapter 3: Maintenance and Component Installation DIMM Module Population Sequence When installing memory modules, the DIMM slots should be populated in the following order: DIMMB1, DIMMA1, DIMME1, DIMMD1. • Always use DDR4 DIMM modules of the same type, size, and speed. •...

  • Page 29: Dimm Installation

    SuperStorageSystem SSG-5019D8-TR12P User's Manual DIMM Installation JPB1:(debug only) PRESS FIT JPL1: 1-2:ENABLE 2-3:DISABLE 1. Insert the desired number of DIMMs into IPMI_LAN LAN 3/4 LAN 1/2 USB 4/5 (3.0) the memory slots, starting with DIMMB1, LEDM1 LAN 5/6 JPG1 DIMMA1, DIMME1, DIMMD1. For best...

  • Page 30: Motherboard Battery

    Chapter 3: Maintenance and Component Installation Motherboard Battery The motherboard uses non-volatile memory to retain system information when system power is removed. This memory is powered by a lithium battery residing on the motherboard. Replacing the Battery Begin by removing power from the system as described in section 3.1. 1.

  • Page 31: Chassis Components

    SuperStorageSystem SSG-5019D8-TR12P User's Manual 3.4 Chassis Components Hard Drives The chassis can contain twelve 3.5" internal hard disk drives. Each HDD position in the chassis is labeled with a number that corresponds to the SAS/SATA ports on the motherboard. The drives rest on metal brackets that run the full width of the chassis. They attach to the system by means of four small, horizontal backplanes, which include a socket into which each HDD is inserted.
  • Page 32 Chapter 3: Maintenance and Component Installation 4. Slide the replacement drive into the backplane socket and push it down onto the mounting bracket until it clicks into position. Note: numbers above indicate the logical drive locations (drive map). 3.5" HDD Latch Backplanes Figure 3-4.

  • Page 33: System Fans

    SuperStorageSystem SSG-5019D8-TR12P User's Manual System Fans Six fans provide cooling for the chassis. Figure 3-5. System Fans Replacing a System Fan 1. If necessary, open the top rear cover of the chassis while the system is running to locate the position of the failed fan. Do not run the server for an extended time with the cover off.

  • Page 34: Installing An Expansion Card

    Chapter 3: Maintenance and Component Installation Installing an Expansion Card The chassis supports one low profile PCI-E expansion card. Low Profile Card Figure 3-6. Expansion Card Installing an Expansion Card 1. Locate the riser card bracket in your chassis accessory bag, and the riser card, which is purchased separately.
  • Page 35 SuperStorageSystem SSG-5019D8-TR12P User's Manual Riser Card Bracket Figure 3-7. Riser Card Bracket...

  • Page 36: Power Supply

    The failed power module should be replaced as soon as possible. This power supply is auto-switching capable, enabling it to automatically sense and operate at a 100v to 240v input voltage. New units can be ordered directly from Supermicro (see contact information in the Preface).

  • Page 37: Chapter 4 Motherboard Connections

    Chapter 4: Motherboard Connections Chapter 4 Motherboard Connections This section describes the connections on the motherboard and provides pinout definitions. Note that depending on how the system is configured, not all connections are required. The LEDs on the motherboard are also described here. A motherboard layout indicating component locations may be found in Chapter 1.

  • Page 38: Headers And Connectors

    SuperStorageSystem SSG-5019D8-TR12P User's Manual Secondary Power Connector JPV1 must also be connected to the power supply. This connector is used to power the process and provides alternative power for special enclosure when the 24-pin ATX power is not in use.
  • Page 39 NC = No Connection NVMe I C Header JNVI2C1 is a management header for the Supermicro AOC NVMe PCI-E peripheral cards. Connect a corresponding I C cable to this header. Refer to the table below for pin definitions. C Header...
  • Page 40 SuperStorageSystem SSG-5019D8-TR12P User's Manual Standby Power The +5V Standby Power header is located at JSTBY1 on the motherboard. You must have a card with a Standby Power connector and a cable to use this feature. Refer to the table below for pin definitions.
  • Page 41 Chapter 4: Motherboard Connections TPM/Port 80 Header A Trusted Platform Module (TPM)/Port 80 header is located at JTPM1 to provide TPM support and a Port 80 connection. Use this header to enhance system performance and data security. Refer to the table below for pin definitions. Trusted Platform Module Header Pin Definitions Pin#...
  • Page 42 SuperStorageSystem SSG-5019D8-TR12P User's Manual LAN Activity Header JLANLED1 is the activity LED header for LAN1 through LAN4. LAN Activity LED Pin Definitions Pin# Definition 3V3 Stby LAN3_ACT_N 3V3 Stby LAN4_ACT_N LAN Activity LED Headers JTGLED1 is the activity LED header for LAN7 and LAN8, and JTGLED2 is the activity header for LAN5 and LAN6.

  • Page 43: Rear I/O Ports

    Chapter 4: Motherboard Connections 4.3 Rear I/O Ports See Figure 4-1 below for the locations and descriptions of the various I/O ports on the rear of the motherboard. JPB1:(debug only) PRESS FIT JPL1: 1-2:ENABLE 2-3:DISABLE IPMI_LAN LAN 3/4 LAN 1/2 USB 4/5 (3.0) LEDM1 LAN 5/6...
  • Page 44 SuperStorageSystem SSG-5019D8-TR12P User's Manual VGA Port A VGA video port is located near LAN ports 7/8 on the I/O back panel. LAN Ports There are eight LAN ports located on the I/O back panel of the motherboard. LAN1 - LAN4 are RJ45 1GbE Ethernet ports, LAN5 - LAN6 are 10GbE ports, and LAN7 - LAN8 are 10G SFP+ ports.
  • Page 45 Note: UID can also be triggered via IPMI on the motherboard. For more information on IPMI, please refer to the IPMI User's Guide posted on our website at https://www.supermicro.com/ support/manuals/. UID Button...

  • Page 46: Front Control Panel

    JF1 contains header pins for various buttons and indicators that are normally located on a control panel at the front of the chassis. These connectors are designed specifically for use with Supermicro chassis. See the figure below for the descriptions of the front control panel buttons and LED indicators.
  • Page 47 Chapter 4: Motherboard Connections Power Button The Power Button connection is located on pins 1 and 2 of JF1. Momentarily contacting both pins will power on/off the system. This button can also be configured to function as a suspend button (with a setting in the BIOS - see Chapter 6). To turn off the power when the system is in suspend mode, press the button for 4 seconds or longer.
  • Page 48 SuperStorageSystem SSG-5019D8-TR12P User's Manual NIC1/NIC2 Activity LED The NIC (Network Interface Controller) LED connection for LAN port 1 is located on pins 11 and 12 of JF1, and the LED connection for LAN port 2 is on pins 9 and 10. Attach the NIC LED cables here to display network activity.

  • Page 49: Jumpers

    Chapter 4: Motherboard Connections 4.5 Jumpers Explanation of Jumpers To modify the operation of the motherboard, jumpers are used to choose between optional settings. Jumpers create shorts between two pins to change the function associated with it. Pin 1 is identified with a square solder pad on the printed circuit board. See the motherboard layout page for jumper locations.
  • Page 50 SuperStorageSystem SSG-5019D8-TR12P User's Manual LAN Port Enable/Disable Use jumper JPL1 to enable or disable LAN1 - LAN4. Refer to the table below for jumper settings. LAN Enable/Disable Jumper Settings Jumper Setting Definition Pins 1-2 Enabled (Deafult) Pins 2-3 Disabled Manufacturing Mode Select...
  • Page 51 Chapter 4: Motherboard Connections SMBus to PCI-E Slots Use jumpers JI2C1 and JI2C2 to enable PCI-E SMB (System Management Bus) support to improve system management for the onboard PCI-E slot. SMBus to PCI-E Slots Jumper Settings Jumper Setting Definition Pins 1-2 Enabled Pins 2-3 Disabled (Default)

  • Page 52: Led Indicators

    SuperStorageSystem SSG-5019D8-TR12P User's Manual 4.6 LED Indicators LAN LEDs Eight LAN ports (LAN1 - LAN8) are located on the I/O back panel. Each Ethernet LAN port has two LEDs. The green LED indicates activity, while the other Link LED may be green, amber, or off to indicate the speed of the connection.

  • Page 53: Chapter 5 Software

    You must first configure RAID settings (if using RAID) before you install the Windows OS and the software drivers. To configure RAID settings, please refer to the RAID Configuration User Guides posted on our website at www.supermicro.com/support/manuals. Installing the Windows OS for a RAID System 1.

  • Page 54: Driver Installation

    SuperStorageSystem SSG-5019D8-TR12P User's Manual 5.2 Driver Installation The Supermicro FTP site contains drivers and utilities for your system at https://www. supermicro.com/wftp/. Some of these must be installed, such as the chipset driver. After accessing the FTP site, go into the CDR_Images directory and locate the ISO file for your motherboard.

  • Page 55: Superdoctor ® 5

    5.3 SuperDoctor ® The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 56: Ipmi

    SuperStorageSystem SSG-5019D8-TR12P User's Manual 5.4 IPMI The X11SDV-8C-TP8F supports the Intelligent Platform Management Interface (IPMI). IPMI is used to provide remote access, monitoring and management. There are several BIOS settings that are related to IPMI. For general documentation and information on IPMI, please visit our website at:...

  • Page 57: Chapter 6 Bios

    Chapter 6: BIOS Chapter 6 BIOS 6.1 Introduction This chapter describes the AMIBIOS™ Setup utility for the X11SDV-8C-TP8F motherboard(s). The is stored in a flash chip and can be easily upgraded using a floppy disk-based program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 58: Main Menu

    SuperStorageSystem SSG-5019D8-TR12P User's Manual 6.2 Main Menu When you first enter the AMI BIOS setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen.

  • Page 59: Advanced Settings Menu

    Chapter 6: BIOS 6.3 Advanced Settings Menu Use this menu to configure advanced settings. Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency or an incorrect BIOS timing setting may cause the system to malfunction. When this occurs, restore to default manufacturer settings.
  • Page 60 SuperStorageSystem SSG-5019D8-TR12P User's Manual Bootup NumLock State Use this feature to set the Power-on state for the Numlock key. The options are Off and On. Wait For "F1" If Error This feature forces the system to wait until the F1 key is pressed if an error occurs. The options are Disabled and Enabled.
  • Page 61 Chapter 6: BIOS CPU Configuration  The following CPU information will display: • Processor BSP Revision • Processor Socket • Processor ID • Processor Frequency • Processor Max Ratio • Processor Min Ratio • Microcode Revision • L1 Cache RAM •...
  • Page 62 SuperStorageSystem SSG-5019D8-TR12P User's Manual PPIN Control Select Unlock/Enable to use the Protected Processor Inventory Number (PPIN) in the system. The options are Unlock/Disable and Unlock/Enable. Hardware Prefetcher (Available when supported by the CPU) If set to Enable, the hardware prefetcher will prefetch streams of data and instructions from the main memory to the L2 cache to improve CPU performance.
  • Page 63 Chapter 6: BIOS Power Performance Tuning This feature allows the user to set whether the operating system or the BIOS controls the Energy Performance BIAS (EPB). The options are OS Controls EPB and BIOS Controls EPB. *If the feature above is set to BIOS Controls EPB, the following features will be available for configuration: ENERGY_PERF_BIAS_CFG Mode The Energy Perfomance BIAS (EPB) feature allows the user to configure CPU power...
  • Page 64 SuperStorageSystem SSG-5019D8-TR12P User's Manual Hardware PM State Control  Hardware P-States This setting allows the user to select between OS and hardware-controlled P-states. Selecting Native Mode allows the OS to choose a P-state. Selecting Out of Band Mode allows the hardware to autonomously choose a P-state without OS guidance. Selecting Native Mode with No Legacy Support functions as Native Mode with no support for older hardware.
  • Page 65 Chapter 6: BIOS Chipset Configuration  Warning: Setting the wrong values in the sections below may cause the system to malfunction. North Bridge Configuration  UPI Configuration  The following UPI information will display: • Number of CPU • Number of IIO •...
  • Page 66 SuperStorageSystem SSG-5019D8-TR12P User's Manual Sub NUMA Clustering (SNC) is a feature that breaks up the Last Level Cache (LLC) into clusters based on address range. Each cluster is connected to a subset of the memory controller. Enabling SNC improves average latency and reduces memory access conges- tion to achieve higher performance.
  • Page 67 Chapter 6: BIOS Memory Topology  This feature displays the information of onboard memory modules as detected by the BIOS. Memory RAS Configuration  Static Virtual Lockstep Mode Select Enable to run the system's memory channels in lockstep mode to minimize memory access latency.
  • Page 68 SuperStorageSystem SSG-5019D8-TR12P User's Manual Patrol Scrub Patrol Scrub is a process that allows the CPU to correct correctable memory errors detected on a memory module and send the correction to the requestor (the original source). When this feature is set to Enable, the IO hub will read and write back one cache line every 16K cycles if there is no delay caused by internal processing.
  • Page 69 Chapter 6: BIOS PCI-E Port Link Status This feature shows the status of the device plugged into this slot. PCI-E Port Link Max This feature shows the status of the device plugged into this slot. PCI-E Port Link Speed This feature shows the status of the device plugged into this slot. PCI-E Port Max Payload Size Use this feature to select the maximum payload size for this port.
  • Page 70 SuperStorageSystem SSG-5019D8-TR12P User's Manual Prioritize TPH Use this feature to enable Prioritize TPH support. The options are Enable and Disable. Relaxed Ordering Select Enable to enable Relaxed Ordering support, which will allow certain transac- tions to violate the strict-ordering rules of PCI bus for a transaction to be completed prior to other transactions that have already been enqueued.
  • Page 71 Chapter 6: BIOS Intel® VMD Technology  Intel® VMD for Volume Management Device on CPU  VMD Config for PStack0 Intel® VMD for Volume Management Device Select Enable to use the Intel Volume Management Device Technology for this stack. The options are Disable and Enable. *If the feature above is set to Enable, the following features will be available for configuration: CPU SLOT6 PCI-E 3.0X16 VMD...
  • Page 72 SuperStorageSystem SSG-5019D8-TR12P User's Manual Port 60/64 Emulation Select Enabled for I/O port 60h/64h emulation support, which in turn, will provide complete legacy USB keyboard support for the operating systems that do not support legacy USB devices. The options are Disabled and Enabled.
  • Page 73 Chapter 6: BIOS *If the feature "Configure SATA as" above is set to RAID, the following features will be available for configuration: SATA RSTe Boot Info Select Enable to provide full int13h support for the devices attached to SATA controller. The options are Disable and Enable.
  • Page 74 SuperStorageSystem SSG-5019D8-TR12P User's Manual SATA HDD Unlock This feature allows the user to remove any password-protected SATA disk drives. The options are Disable and Enable. Aggressive Link Power Management When this feature is set to Enable, the SATA AHCI controller manages the power usage of the SATA link.
  • Page 75 Chapter 6: BIOS PCIe/PCI/PnP Configuration  PCIe/PCI/PnP Configuration  The following information will display: • PCI Bus Driver Version • PCI Devices Common Settings: Above 4G Decoding (Available if the system supports 64-bit PCI decoding) Select Enabled to decode a PCI device that supports 64-bit in the space above 4G Address. The options are Disabled and Enabled.
  • Page 76 SuperStorageSystem SSG-5019D8-TR12P User's Manual VGA Priority Use this feature to select VGA priority when multiple VGA devices are detected. Select On- board to give priority to your onboard video device. Select Offboard to give priority to your graphics card. The options are Onboard and Offboard.
  • Page 77 Chapter 6: BIOS Network Stack Configuration Network Stack Select Enabled to enable PXE (Preboot Execution Environment) or UEFI (Unified Extensible Firmware Interface) for network stack support. The options are Enabled and Disabled. *If the feature above is set to Enabled, the next six features will be available for configuration: Ipv4 PXE Support Select Enabled to enable IPv4 PXE boot support.
  • Page 78 SuperStorageSystem SSG-5019D8-TR12P User's Manual Change Settings This feature specifies the base I/O port address and the Interrupt Request address of Serial Port 1. Select Auto for the BIOS to automatically assign the base I/O and IRQ address to a serial port specified. The options are Auto, (IO=3F8h; IRQ=4), (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), (IO=2F8h;...
  • Page 79 Chapter 6: BIOS Console Redirection Settings  Terminal Type This feature allows the user to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes.
  • Page 80 SuperStorageSystem SSG-5019D8-TR12P User's Manual Resolution 100x31 Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled. Legacy OS Redirection Resolution Use this feature to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25.
  • Page 81 Chapter 6: BIOS Data Bits Use this feature to set the data transmission size for Console Redirection. The options are 7 (Bits) and 8 (Bits). Parity A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even.
  • Page 82 SuperStorageSystem SSG-5019D8-TR12P User's Manual Redirection After BIOS POST Use this feature to enable or disable legacy console redirection after BIOS POST. When set to BootLoader, legacy console redirection is disabled before booting the OS. When set to Always Enable, legacy console redirection remains enabled when booting the OS. The options are Always Enable and BootLoader.
  • Page 83 Chapter 6: BIOS Bits per second This feature sets the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 57600, and 115200 (bits per second).
  • Page 84 This feature displays the status of the TPM support on this motherboard. • TPM Enabled Status • TPM Active Status • TPM Owner Status SMCI BIOS-Based TPM Provision Support Use feature to enable the Supermicro TPM Provision support. The options are Disabled and Enabled.
  • Page 85 Chapter 6: BIOS TXT Support Intel TXT (Trusted Execution Technology) helps protect against software-based attacks and ensures protection, confidentiality and integrity of data stored or created on the system. Use this feature to enable or disable TXT Support. The options are Disabled and Enabled. *The features in the Trusted Computing section on this page and the next are displayed if a TPM 2.0 module is detected: TPM20 Device Found...
  • Page 86 Use this feature to disable or enable Platform Hiearchy (PH) Randomization. The options are Disabled and Enabled. SMCI BIOS-Based TPM Provision Support Use feature to enable the Supermicro TPM Provision support. The options are Disabled and Enabled. TXT Support Intel TXT (Trusted Execution Technology) helps protect against software-based attacks and ensures protection, confidentiality and integrity of data stored or created on the system.

  • Page 87: Event Logs

    Chapter 6: BIOS 6.4 Event Logs Use this menu to configure event log settings. Change SMBIOS Event Log Settings Enabling/Disabling Options SMBIOS Event Log Change this feature to enable or disable all features of the SMBIOS Event Logging during system boot. The options are Enabled and Disabled. Erasing Settings Erase Event Log Select Enabled to erase all error events in the SMBIOS (System Management BIOS) log...
  • Page 88 SuperStorageSystem SSG-5019D8-TR12P User's Manual When Log is Full Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full.

  • Page 89: Ipmi

    Chapter 6: BIOS 6.5 IPMI Use this menu to configure Intelligent Platform Management Interface (IPMI) settings. BMC Firmware Revision This feature indicates the IPMI firmware revision in your system. IPMI STATUS This feature indicates the status of the IPMI firmware installed in your system. System Event Log Enabling/Disabling Options SEL Components...
  • Page 90 SuperStorageSystem SSG-5019D8-TR12P User's Manual Erase SEL Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot. The options are No, Yes, On next reset, and Yes, On every reset.
  • Page 91 Chapter 6: BIOS Subnet Mask This feature displays the sub-network that this computer belongs to. The value of each three-digit number separated by dots should not exceed 255. Station MAC Address This feature displays the Station MAC address for this computer. Mac addresses are 6 two-digit hexadecimal numbers.

  • Page 92: Security

    The Disable option is for applications that require faster power on time wthout using Supermicro Update Manager (SUM) or extended IPMI features. The BMC network configuration in the BIOS setup is also invalid when IPMI Function Support is disabled.
  • Page 93 Chapter 6: BIOS Password Check Select Setup for the system to check for a password at Setup. Select Always for the system to check for a password at bootup or upon entering the BIOS Setup utility. The options are Setup and Always. ...
  • Page 94 SuperStorageSystem SSG-5019D8-TR12P User's Manual  Enroll Efi Image This feature allows the image to run in Secure Boot mode. Device Guard Ready  Remove 'UEFI CA' from DB Use this feature to remove the Microsoft UEFI CA certificate from the database. The options are Yes and No.
  • Page 95 Chapter 6: BIOS Delete Select Ok to remove the KEK and then the system will reset to Setup/Audit Mode.  Authorized Signatures Details Select this feature to view the details of the db. Export Select Yes to export a db from a file on an external media. Update Select Yes to load a factory default db or No to load from a file on an external media.
  • Page 96 SuperStorageSystem SSG-5019D8-TR12P User's Manual Update Select Yes to load a factory default dbt or No to load from a file on an external media. Append Select Yes to add the dbt from the manufacturer's defaults list to the existing dbt. Select No to load the dbt from a file.

  • Page 97: Boot

    Chapter 6: BIOS 6.7 Boot Use this menu to configure boot settings: Boot mode select Use this feature to select the boot mode. The options are LEGACY, UEFI, and DUAL. Legacy to EFI Support Select Enabled to boot EFI OS support after Legacy boot order has failed. The options are Disabled and Enabled.
  • Page 98 SuperStorageSystem SSG-5019D8-TR12P User's Manual Fixed BOOT ORDER Priorities This option prioritizes the order of bootable devices that the system to boot from. Press <Enter> on each entry from top to bottom to select devices. • Boot Option #1 • Boot Option #2 •...

  • Page 99: Save & Exit

    Chapter 6: BIOS 6.8 Save & Exit Use this menu to configure save and exit settings. Save Options Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration and reboot the computer. Select Discard Changes and Exit from the Exit menu and press <Enter>.
  • Page 100 SuperStorageSystem SSG-5019D8-TR12P User's Manual Default Options Restore Defaults To set this feature, select Restore Optimized Defaults and press <Enter>. These are factory settings designed for maximum system performance but not for maximum stability. Save as User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <Enter>. This enables the user to save any changes to the BIOS setup for future use.
  • Page 101 Appendix A: BIOS Error Codes Appendix A BIOS Error Codes A-1 BIOS Error Beep (POST) Codes During the POST (Power-On Self-Test) routines, which are performed upon each system boot, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue to boot. These error messages normally appear on the screen.
  • Page 102 When BIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, a diagnostic card can be attached to the computer to read I/O port 0080h (Supermicro p/n AOM-SPI80-V). For information on AMI updates, please refer to http://www.ami.com/products/.
  • Page 103 Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our website at http://www.supermicro.com/about/...
  • Page 104 Appendix B: Standardized Warning Statements Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.
  • Page 105 SuperStorageSystem SSG-5019D8-TR12P User's Manual . ٌ ‫ا ك ً ف حالة و ٌ يك أى تتسبب ف اصابة جسذ ة ٌ هذا الزهز ع ٌ خطز !تحذ ز‬ ‫قبل أى تعول عىل أي هعذات،يك عىل علن بالوخاطز ال ا ٌجوة عي الذوائز‬...
  • Page 106 Appendix B: Standardized Warning Statements Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación. Attention Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation. .‫יש...
  • Page 107 SuperStorageSystem SSG-5019D8-TR12P User's Manual Warnung Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss- bzw. Überstromschutz installiert ist. Stellen Sie sicher, dass der Nennwert der Schutzvorrichtung nicht mehr als: 250 V, 20 A beträgt. ¡Advertencia! Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes) del edificio.
  • Page 108 Appendix B: Standardized Warning Statements Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components. 電源切断の警告...
  • Page 109 SuperStorageSystem SSG-5019D8-TR12P User's Manual ‫يجب فصم اننظاو من جميع مصادر انطاقت وإ ز انت سهك انكهرباء من وحدة امداد‬ ‫انطاقت قبم‬ ‫انىصىل إىن امنناطق انداخهيت نههيكم نتثبيج أو إ ز انت مكىناث الجهاز‬ 경고! 시스템에 부품들을 장착하거나 제거하기 위해서는 섀시 내부에 접근하기 전에 반드시 전원...
  • Page 110 Appendix B: Standardized Warning Statements Attention Il est vivement recommandé de confier l'installation, le remplacement et la maintenance de ces équipements à des personnels qualifiés et expérimentés. !‫אזהרה‬ .‫צוות מוסמך בלבד רשאי להתקין, להחליף את הציוד או לתת שירות עבור הציוד‬ ‫واملدربيه...
  • Page 111 SuperStorageSystem SSG-5019D8-TR12P User's Manual Warnung Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich. ¡Advertencia! Esta unidad ha sido diseñada para instalación en áreas de acceso restringido. Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una herramienta especial,...
  • Page 112 Appendix B: Standardized Warning Statements Battery Handling Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions 電池の取り扱い...
  • Page 113 SuperStorageSystem SSG-5019D8-TR12P User's Manual ‫هناك خطر من انفجار يف حالة اسحبذال البطارية بطريقة غري صحيحة فعليل‬ ‫اسحبذال البطارية‬ ‫فقط بنفس النىع أو ما يعادلها مام أوصث به الرشمة املصنعة‬ ‫جخلص من البطاريات املسحعملة وفقا لحعليامت الرشمة الصانعة‬ 경고! 배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제...
  • Page 114 Appendix B: Standardized Warning Statements ¡Advertencia! Puede que esta unidad tenga más de una conexión para fuentes de alimentación. Para cortar por completo el suministro de energía, deben desconectarse todas las conexiones. Attention Cette unité peut avoir plus d'une connexion d'alimentation. Pour supprimer toute tension et tout courant électrique de l'unité, toutes les connexions d'alimentation doivent être débranchées.
  • Page 115 SuperStorageSystem SSG-5019D8-TR12P User's Manual Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. バックプレーンの電圧 システムの稼働中は危険な電圧または電力が、 バックプレーン上にかかっています。 修理する際には注意く ださい。 警告 当系统正在进行时，背板上有很危险的电压或能量，进行维修时务必小心。 警告 當系統正在進行時，背板上有危險的電壓或能量，進行維修時務必小心。 Warnung Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche Spannungen oder Energien auf.
  • Page 116 Appendix B: Standardized Warning Statements ‫هناك خطز مه التيار الكهزبايئ أوالطاقة املىجىدة عىل اللىحة‬ ‫عندما يكىن النظام يعمل كه حذ ر ا عند خدمة هذا الجهاس‬ 경고! 시스템이 동작 중일 때 후면판 (Backplane)에는 위험한 전압이나 에너지가 발생 합니다. 서비스 작업 시 주의하십시오. Waarschuwing Een gevaarlijke spanning of energie is aanwezig op de backplane wanneer het systeem in gebruik is.
  • Page 117 SuperStorageSystem SSG-5019D8-TR12P User's Manual ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ .‫התקנת הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫تركيب املعدات الكهربائية يجب أن ميتثل للقىاويه املحلية والىطىية املتعلقة‬ ‫بالكهرباء‬ 경고! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다.
  • Page 118 Appendix B: Standardized Warning Statements Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. ‫סילוק המוצר‬ !‫אזהרה‬ .‫סילוק סופי של מוצר זה חייב להיות בהתאם להנחיות וחוקי המדינה‬ ‫التخلص...
  • Page 119 SuperStorageSystem SSG-5019D8-TR12P User's Manual Warnung Gefährlich Bewegende Teile. Von den bewegenden Lüfterblätter fern halten. Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt.
  • Page 120 Verbindungskabeln, Stromkabeln und/oder Adapater, die Ihre örtlichen Sicherheitsstandards einhalten. Der Gebrauch von anderen Kabeln und Adapter können Fehlfunktionen oder Feuer verursachen. Die Richtlinien untersagen das Nutzen von UL oder CAS zertifizierten Kabeln (mit UL/CSA gekennzeichnet), an Geräten oder Produkten die nicht mit Supermicro gekennzeichnet sind.
  • Page 121 ‫حجم املوصل والقابس السليم. استخدام أي كابالت ومحوالت أخرى قد يتسبب يف عطل أو حريق. يحظر قانون السالمة لألجهزة الكهربائية واملعدات استخدام الكابالت املعتمدة‬ ‫ من قبل‬UL ‫ أو‬CSA ‫( والتي تحمل عالمة‬UL/CSA) ‫ مع أي معدات أخرى غري املنتجات املعنية واملحددة من قبل‬Supermicro.
  • Page 122 사항을 준수하여 제공되거나 지정된 연결 혹은 구매 케이블, 전원 케이블 및 AC 어댑터를 사용하십시오. 다른 케이블이나 어댑터를 사용하면 오작동이나 화재가 발생할 수 있습니다. 전기 용품 안전법은 UL 또는 CSA 인증 케이블 (코드에 UL / CSA가 표시된 케이블)을 Supermicro 가 지정한 제품 이외의 전기 장치에 사용하는 것을 금지합니다. Stroomkabel en AC-Adapter...
  • Page 123 Appendix C: System Specifications Appendix C System Specifications Processors Single Intel® Xeon® D-2146NT SoC with a TDP of up to 80W embedded processor on the motherboard Chipset System on a Chip BIOS 512Mb AMI BIOS® SPI Flash BIOS Memory Supports up to 256 GB of ECC RDIMM or 512 GB of ECC LRDIMM DDR4 memory with speeds of up to 2133 MHz and up to 128 GB size at 1.2V in four slots SATA Controller Processor on-chip controller...
  • Page 124 SuperStorageSystem SSG-5019D8-TR12P User's Manual Regulatory Compliance Electromagnetic Emissions: FCC Class A, EN 55032 Class A, EN 61000-3-2/3-3, CISPR 32 Class A Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11)
  • Page 125 Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update.
  • Page 126 Directory of a USB device or a writeable CD/DVD. Note: If you cannot locate the "Super.ROM" file in your driver disk, visit our website at www. supermicro.com to download the BIOS image into a USB flash device and rename it "Super. ROM" for BIOS recovery use.
  • Page 127 Appendix D: UEFI BIOS Recovery 5. When the screen as shown above displays, use the arrow keys to select the item "Proceed with flash update" and press the <Enter> key. You will see the BIOS recovery progress as shown in the screen below. Note: Do not interrupt the BIOS flashing process until it has completed.
  • Page 128 SuperStorageSystem SSG-5019D8-TR12P User's Manual 9. When the UEFI Shell prompt appears, type fs# to change the device directory path. Go to the directory which contains the BIOS package extracted earlier from Step 7. Enter flash.nsh BIOSname.### at the prompt to start the BIOS update process.
  • Page 129 Appendix D: UEFI BIOS Recovery 10. The screen above indicates that the BIOS update process is completed. When you see the screen above, unplug the AC power cable from the power supply, clear CMOS, and plug the AC power cable in the power supply again to power on the system. 11.
  • Page 130 SuperStorageSystem SSG-5019D8-TR12P User's Manual Appendix E Dual Boot Block E.1 Introduction This motherboard supports the Dual Boot Block feature, which is the last-ditch mechanism to recover the BIOS boot block. This section provides an introduction to the feature. BIOS Boot Block A BIOS boot block is the minimum BIOS loader required to enable necessary hardware components for the BIOS crisis recovery flash that will update the main BIOS block.
  • Page 131 Appendix E: Dual Boot Block E.2 Steps to Reboot the System by Using Jumper JBR1 1. Power down the system. 2. Close pins 2-3 on jumper JBR1 and power on the system. 3. Follow the BIOS recovery SOP listed in the previous chapter (Appendix D). 4.
