- Page 1 USER MANUAL 4KDPKVMXT-100M-R2 4K DP 1.2 EXTENDER 24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.COM Tx Rx G Copy 4k@30Hz DC 12V HDBT Out RS232 DP In Audio In Audio Out USB Host EDID Tx Rx G DC 12V HDBT In...
-
Page 2: Table Of Contents
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 TABLE OF CONTENTS TECHNICAL SUPPORT 1.877.877.2269 SAFETY INSTRUCTIONS .................................. 3 1. SPECIFICATIONS ................................... 4 2. OVERVIEW ...................................... 6 2.1 Introduction .......................................6 2.2 Features ........................................6 2.3 What’s Included ......................................6 2.4 Hardware Description ....................................7 2.4.1 Front Panels, TX and RX Units .................................. -
Page 3: Safety Instructions
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 SAFETY INSTRUCTIONS TECHNICAL SUPPORT 1.877.877.2269 1. Do not expose this apparatus to rain, moisture, dripping or splashing liquids. Do not place any objects filled with liquids, such as vases, on the apparatus. 2. -
Page 4: Specifications
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 1: SPECIFICATIONS TECHNICAL SUPPORT 1.877.877.2269 TABLE 1-1. SPECIFICATIONS SPECIFICATION DESCRIPTION Transmitter Technical Input Connectors (1) DisplayPort, (1) Audio 800 x 600, 1024 x 768, 1152 x 864, 1176 x 664, 1280 x 720, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768, 1440 x 900, 1600 x 900, 1600 x 1024, 1600 x 1200, 1680 x 1050, 1768 x 992, 1920 x 1080 (Recommended), 1920 x 1200, 2048 x 1536, 2560 x 1440, 2560 x 1600, 3840 x 1080, Resolution Support... - Page 5 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 1: SPECIFICATIONS TECHNICAL SUPPORT 1.877.877.2269 TABLE 1-2. TRANSMISSION DISTANCE CABLE TYPE RANGE SUPPORTED VIDEO 330 ft. (100 m) 1080p at 60 Hz 36-bit CAT5e/6 295 ft. (90 m) 1080p at 60 Hz 48-bit, 1080p at 60 Hz 3D, 3840 x 2160 at 30 Hz 4:4:4 8-bit CAT6a/7 330 ft.
-
Page 6: Overview

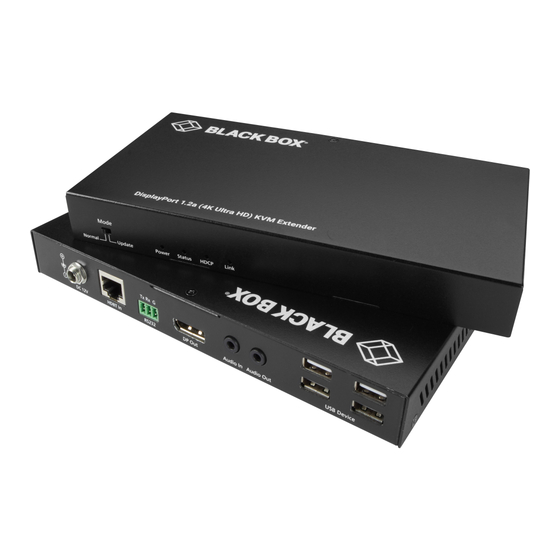

2.1 INTRODUCTION The 4KDPKVMXT-100M-R2 is a 100 m 4K DisplayPort over HDBT Extender with USB 2.0 and Audio Passthrough, and distributes uncompressed 4K at 30 Hz UHD video, audio, power, RS-232 and USB 2.0 up to 328 feet (100 m) over a single CATx cable. -
Page 7: Hardware Description
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: OVERVIEW TECHNICAL SUPPORT 1.877.877.2269 2.4 HARDWARE DESCRIPTION Section 2.4.1 describes the front panels of the TX and RX units. Section 2.4.2 explains the back panel of the TX unit. Section 2.4.3 shows the back panel of the RX unit. -
Page 8: Back Panel, Tx Unit
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: OVERVIEW TECHNICAL SUPPORT 1.877.877.2269 2.4.2 BACK PANEL, TX UNIT FIGURE 2-2. BACK PANEL, TX UNIT TABLE 2-2. TX UNIT BACK-PANEL COMPONENTS NUMBER IN COMPONENT DESCRIPTION FIGURE 2-2 12-VDC connector 12-VDC power input HDBT Out Connects to the HDBT In port of an HDBT receiver... -
Page 9: Back Panel, Rx Unit
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: OVERVIEW TECHNICAL SUPPORT 1.877.877.2269 2.4.3 BACK PANEL, RX UNIT FIGURE 2-3. BACK PANEL, RX UNIT TABLE 2-3. RX UNIT BACK-PANEL COMPONENTS NUMBER IN COMPONENT DESCRIPTION FIGURE 2-3 12-VDC connector 12-VDC optional power input for receiver, not required if TX has power and RX is connected to TX HDBT In Connects to the HDBT Out port of an HDBT transmitter... -
Page 10: Installation And Wiring
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: INSTALLATION AND WIRING TECHNICAL SUPPORT 1.877.877.2269 1. Set the EDID switch on the Transmitter: Š COPY - Used for specific resolutions/display types. This is useful if you know your resolution requirement (or you are using Š... -
Page 11: Appendix A. Regulatory Information
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 APPENDIX A: REGULATORY INFORMATION TECHNICAL SUPPORT 1.877.877.2269 A.1 FCC CLASS B STATEMENT Class B Digital Device. This equipment has been tested and found to comply with the limits for a Class B computing device pursuant to Part 15 of the FCC Rules. -
Page 12: Nom Statement
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 APPENDIX A: REGULATORY INFORMATION TECHNICAL SUPPORT 1.877.877.2269 A.2 NOM STATEMENT 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura. 3. -
Page 13: Appendix B. Disclaimer/Trademarks
B.1 DISCLAIMER Black Box Corporation shall not be liable for damages of any kind, including, but not limited to, punitive, consequential or cost of cover damages, resulting from any errors in the product information or specifications set forth in this document and Black Box Corporation may revise this document at any time without notice. - Page 14 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 NOTES TECHNICAL SUPPORT 1.877.877.2269 __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ _________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________\ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ _________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ _______ 1.877.877.2269 BLACKBOX.COM...
- Page 15 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 NOTES TECHNICAL SUPPORT 1.877.877.2269 __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ _________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________\ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ _________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ _______ 1.877.877.2269 BLACKBOX.COM...
- Page 16 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 TECHNICAL SUPPORT 1.877.877.2269 © COPYRIGHT 2019. BLACK BOX CORPORATION. ALL RIGHTS RESERVED. 4KDPK VMXT-100M-R2_USER_REV1.PDF...
