INSTRUCTION MANUAL

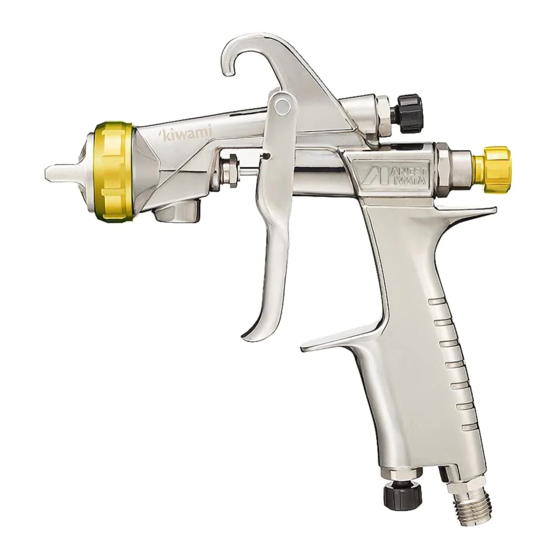

Spray Gun
Be sure to observe warning s and cauti o ns i n this instructi o n manual.
If not, it can cause paint ejecti o n and seri o us bodily i n jury by drawi n g organic solvent.
Be sure to observe fol l owing marked items which are especially important .
Indicates a potentially hazardous situation which, if not avoided, may result in serious injury or loss of life.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or
property damage.
Indicates notes which we ask you to observe. The safety precautions in this instruction manual are the
minimum necessary conditions. Follow national and local regulations regarding fire prevention, electricity
and safety as well as your own company regulations.
IMPORTANT WARNING: Our spray guns, airbrushes, and other products are made to conform by our local group companies with local laws and regulations
that may differ from place to place. Improper trade of products outside of designated domestic territories (unauthorized reselling) can result in legal violations,
local fines, and penalties. ANEST IWATA CORPORATION assumes no liability for products acquired through unauthorized reselling and in such cases and due
to quality control protocols, unauthorized reselling renders the warranty null and void.
Symbol Marking on the Spray Gun:
This ANEST IWATA spray gun
complies with 2014/34/EU Directive
relating to equipment and protective
systems intended for use in
explosive potentially atmospheres.
Important specifications
Max. Pressure 0.70MPa / 7.0bar / 100psi
Noise level 79dB(A)
Spray condi t i o n Recommended
Measuri n g point 1m backwards from spray gun, 1.6m height
Max. temperature Atmosphere: 5°C ~40°C (41°F~104°F)
Important
Never connect pressure feedi n g pai n t except pressure feed type spray gun.
Main specifications
Model Type of feed
Nozzle orifice
KIWAMI-1-13B4
-14B2
-16B2
-13KP6
-14KP6
Gravity
-13B8
-14B8
-13B10
-16B12
※ 1. Atomizing air pressure means air pressure at gun inlet when trigger is pul l ed and air fl o ws ．
※ 2. Opening of fl u id adj u st knob is 3 turns from full close.
II 2 G Ex h X
II
Complies Specific Group II Category
with Marking for (Surface) (Zone 1&2)
European Explosion
Directive Protective
Air and Fl u id: 5°C ~43°C (41°F~109°F)
Recommended condition
Air cap assy
Atomizing air pressure
Mark
mm (in) MPa (bar / PSI)
1.3 (0.051) B4 0.20(2.0/29)
1.4 (0.055)
B2 0.24(2.5/36)
1.6 (0.062)
1.3 (0.051)
KP6 0.20 (2.0/29)
1.4 (0.055)
1.3 (0.051)
B8 0.20 (2.0/29)
1.4 (0.055)
1.3 (0.051) B10 0.15 (1.5/21.8)
1.6 (0.062) B12 0.18 (1.8/26.1)
2 G Ex h
Type of Ignition
Atmosphere Protection
(GAS) (not applied)
Model
KIWAMI-1-13B4
KIWAMI-1-14B2
KIWAMI-1-16B2
KIWAMI-1-13KP6
KIWAMI-1-14KP6
KIWAMI-1-13B8
KIWAMI-1-14B8
KIWAMI-1-13B10
KIWAMI-1-16B12
Air
Fluid output consumption
※ 1
ml/min l/min (cfm)
140 160 (5.6)
200
230 (8.1)
195
165
200 (7.1)
170
185
230 (8.1)
200
140 200 (7.1)
155 220 (7.8)
※ 2
1
This manual contains IMPORTANT
WARNINGS and INSTRUCTIONS.
Equipment in this manual is exclusively for
painting purposes.
Do not use for other purposes.
The operator shall be fully conversant with
the requirements stated in this instruction
manual including important warnings,
cautions and operation and correct handling.
Read and understand the instruction
manual, before use and retain for reference.
IIB T6 Gb
Explosion Temperature Explosion
Group Class Protection
(Ethylene) ( 85°C) level
(EPL)
Nozzl e needle assy combination
Fluid nozzle
Orifice mm (i n ) Mark
1.3 (0.051) / K1 / 13B4
1.4 (0.055) / K1 / 14B2
1.6 (0.062) / K1 / 16B2
1.3 (0.051) / K1 / 13KP6
1.4 (0.055) / K1 / 14KP6
1.3 (0.051) / K1 / 13B8
1.4 (0.055) / K1 / 14B8
1.3 (0.051) / K1 / 13B10
1.6 (0.062) / K1 / 16B12
Spray
distance Viscosity
Pattern width
mm (in) s/Ford#4
mm (in)
250 (9.8)
275 (10.8)
200 (7.9)
240 (9.4) 200 (7.9)
245 (9.6)
260 (10.2)
275 (10.8)
240 (9.45) 150 (5.9)
275 (10.8) 200 (7.9)
T
Amb
X
+5°C +40°C
Additional Ambient
conditions: Any Temperature
static El e ctricity
shoul d be
discharged and
needs to be
diverted to the
ground vi a a
conductive air hose
not incl u ded.
Fluid needl e
Mark
13 WIDER1
13H WIDER1
13 WIDER1
Paint Air & fluid
connection
Mass
g (lbs.)
16
Air
22
G1/4
(NPS1/4)
290
(0.64)
Fluid
16
G1/4
(NPS1/4)
18
