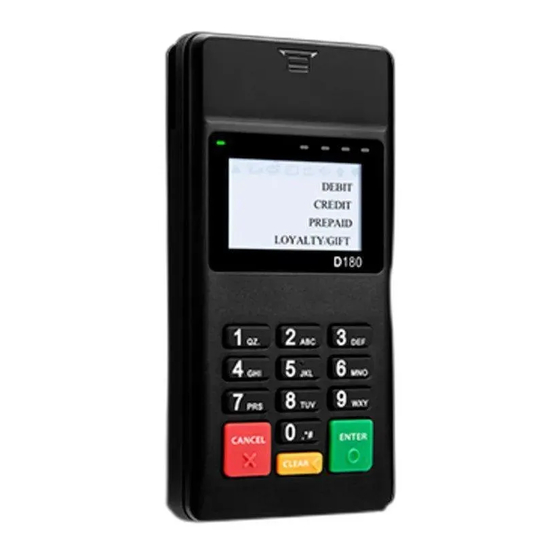

- Page 1 D180 mPOS PAX TECHNOLOGY LIMITED...

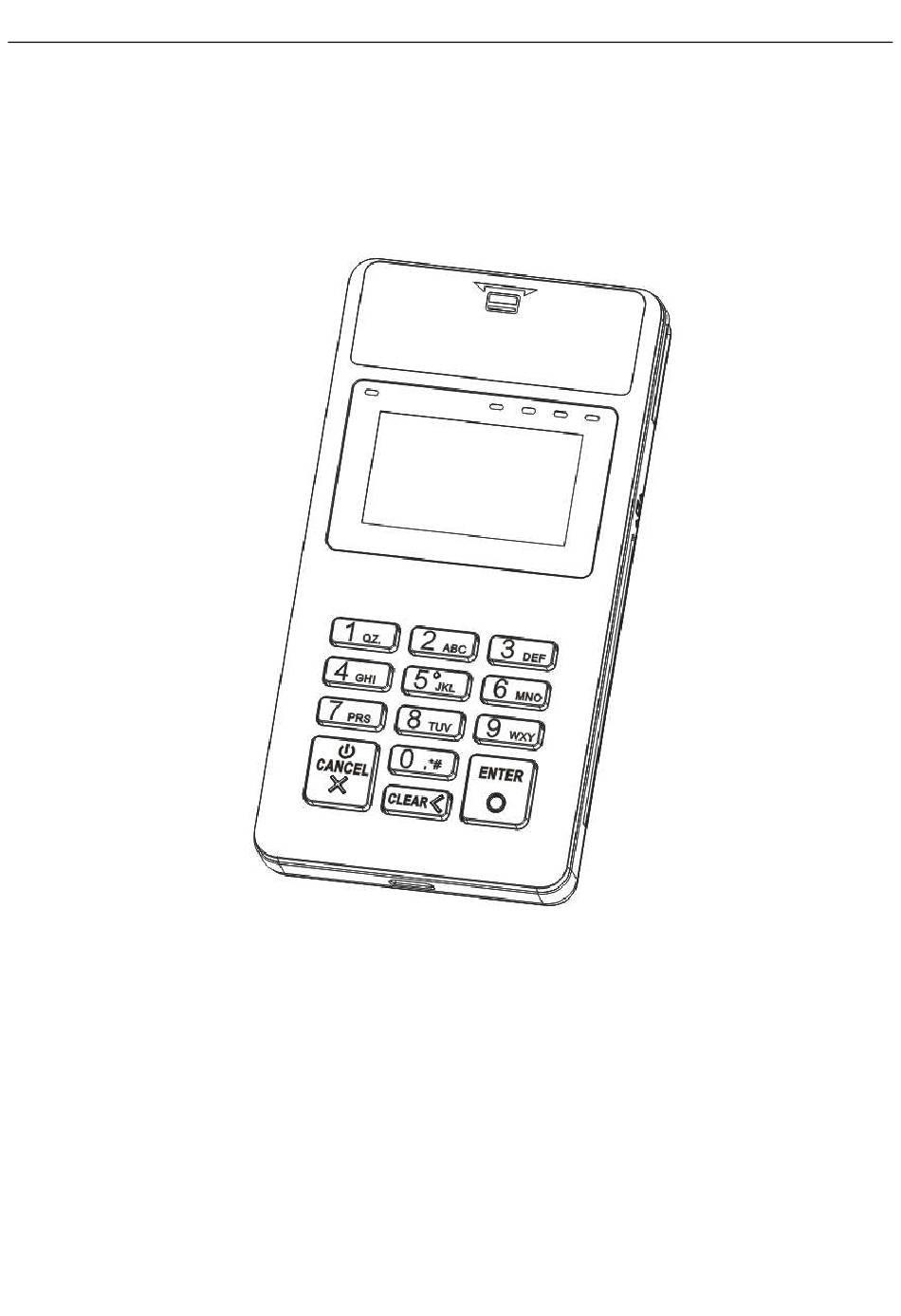

- Page 2 Please check the components after unpacking. If any one of them is missing, or if there is a page missing from the product manual,ect., please contact the dealer. Name Qty. D180 mPOS USB Cable Product Manual 2.Product Description Figure 1. Front view 1.
- Page 3 Connect mobile equipment through Bluetooth 1) Turn on Bluetooth of the mobile equipment and scan for D180. By default, the device name of D180 is PAX D180_XXXX, and XXXX are the last 4 letters of the Bluetooth MAC address of D180, please notice that the device name may be modified according to user requirement.
- Page 4 3) Shopping on mobile equipment and place an order, submit order and click PAY button. 4) Confirm amount displayed on D180 screen. 5) Prompt for reading card on D180. 6) Input PIN through pinpad of D180. 7) Finish the transaction.
- Page 5 Reading smart card Figure 4. Insert smart card When inserting smart card into its slot, the chip of smart card must be faced up. In order to avoid any physical damage to the card or the smart card slot of the terminal, it is recommended to insert the card gently.
- Page 6 Charging LED indicator The charging LED indicator shows, Solid red when the battery is being charged. Solid green when the USB cable is connected and the battery is fully charged. 5.Installation and Usage Tips 1) Do not damage the USB cable. If the USB cable is damaged, please do not use it any more. 2) Before connecting the USB cable to a power supply such as a power adapter, please make sure that its supply voltage is appropriate for the terminal.
- Page 7 FCC RF Exposure Information (SAR) This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the United States. During SAR testing, this device is set to transmit at its highest certified power level in all tested frequency bands, and placed in positions that simulate RF exposure in usage near the body.
- Page 8 IEEE 1528 et IEC 62209. Cet appareil et sa ou ses antennes ne doivent pas être co-localisés ou fonctionner en conjonction avec tout autre antenne ou transmetteur. PAX TECHNOLOGY LIMITED reserves the right to change product technology specifications without notifying.
