Leviton intellect ZL057-D0Z Quick Start Manual

intellect
TM
WARNINGS
• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT
BREAKER OR FUSE AND TEST THAT POWER IS OFF BEFORE WIRING!
• To be installed and/or used in accordance with appropriate electrical codes and
regulations.
• If you are unsure about any part of these instructions, consult an electrician.
Before Installation
• Range up to 75 feet between Lumina RF devices.
• Installs into any single gang device back-box.
• Supports multi-gang installations.
• Multiple devices may be used within the same room for control from
multiple locations or to control multiple loads.
• Each room requires at least one room controller.
• Requires Decora faceplate, sold separately.
®
• ZL057 uses 0-10Vdc low voltage control wires which may be installed
using Class 1 or Class 2.
INSTALLATION NOTE (ZL057): 0-10V Control Wiring - Connect the
Violet wire to the + 0-10V line and the Gray wire to the 0-10V common
using Class 1 or Class 2 wiring methods as indicated in these instructions,
ballast/fixture/driver instructions or ballast/fixture/driver label markings.
Observe all requirements of any authority having jurisdiction with respect
to wire type, sleeving, isolation methods, and the like.
Installation
WARNING: TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER
at circuit breaker or fuse and test that power is off before wiring!
When room controller is also powering load:
1.

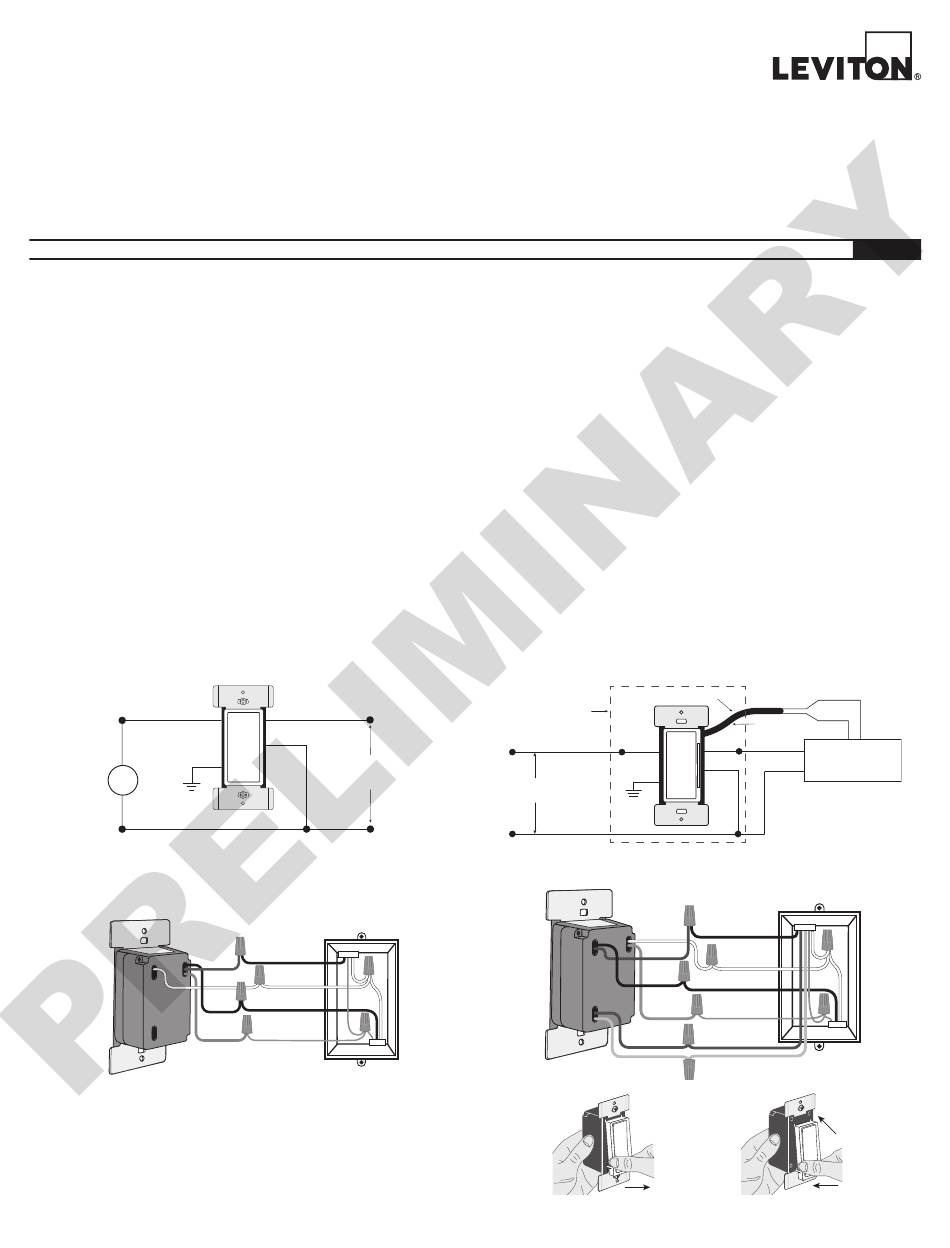

Strip 3/4 in. and connect as per wiring diagram.
Ensure wires are firmly attached and there is no exposed copper.
Switch ZL05S
Blue
Black
Load
Green
Ground
White
2.
Gently place the wires and your device into the wall box and attach
with screws provided.
Switch ZL05S
Blue
White
Black
Green
3.
Restore power and test ON/OFF operation. Locator light should be
ON when switch power is turned OFF.
4.
If desired, change faceplate color.
5.
Install Decora wallplate.
© 2019 Leviton Mfg. Co., Inc.
Wall Station Room Controller:
0-10V Dimmer & Switch
Cat. ZL057-D0Z, ZL057-30Z, ZL05S-D0Zv
Ratings: 120-277VAC, 50/60Hz.
INSTALLATION AND QUICK START SHEET
Hot (Black)
White
Line
120/277VAC,
50/60Hz.
Neutral (White)
Load
Neutral
Line (Hot)
Ground
CAUTIONS
• Use this device with copper or copper clad wire only.
• For indoor applications only.
• Save these instructions.
Product Description

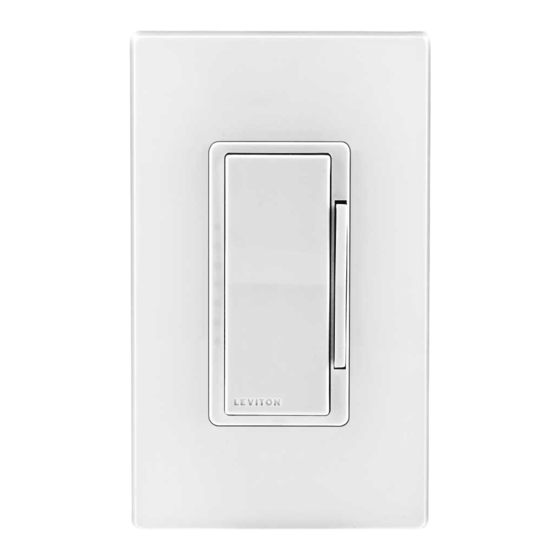

The Intellect ZL057 Wallstation Dimming Room Controller and ZL05S
TM
Wallstation Switching Room Controller are designed to be used to
coordinate and control compatible ZigBee-enabled lamps, fixtures, load
controllers and wireless sensors within a room. The Wallstation Room
Controllers can directly control lighting loads and/or be expanded with
other Intellect devices. It provides all energy management functionality
as required by code and as desired by the user. All aspects of the system
can be configured to meet the specific needs of the end user and their
application. All configuration is made using the Leviton Intellect app from
your smartphone or other Bluetooth
Dimmer ZL057
Electrical Box
Hot (Black) Black
Line
Green
Ground
Neutral (White)
Dimmer ZL057
White
Blue
Black
Green
Violet
Gray
To release, push sides.
PK-A3301-10-00-2A-X2
enabled Android or iOS
TM TM
Violet
Connectors
Gray
Sleeve
Blue
Black
0-10 VDC
White White Ballast/LED Driver
Load
Neutral
Line (Hot)
Ground
Line up and press in to attach.
PK-A3301-10-00-2A-X2
ENGLISH
device.
