Leviton Intellect ZL07S-N00 Quick Start Manual

Intellect™

WARNINGS

READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
•
• TO AVOID FIRE, SHOCK, OR DEATH: TURN OFF POWER AT CIRCUIT BREAKER OR
FUSE AND TEST THAT POWER IS OFF BEFORE WIRING!
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• Controller is intended to be installed by the fixture manufacturer, but in some cases may be
installed in the field. Field installation must use approved electrical enclosures.
NOTE: Suitable for use in air handling spaces (plenums).
• The use of accessory equipment not recommended by the manufacturer may cause an
unsafe condition.
Product Description

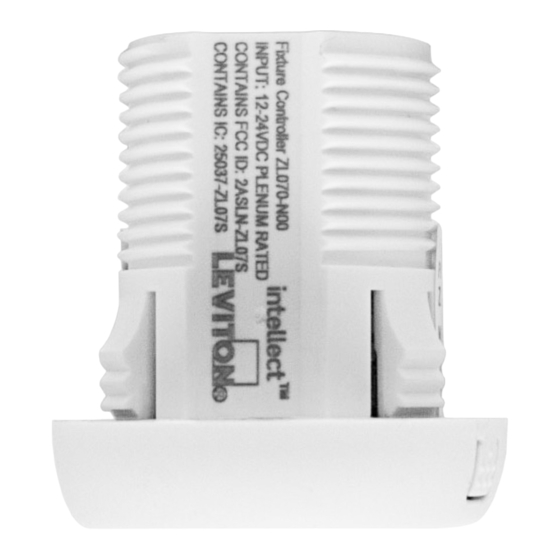

The Intellect™ Wireless Intelligent Fixture Sensor and Controller are
wireless devices that integrate wireless control technology directly into
lighting fixtures. The wireless devices are designed to be installed into a
1/2 in. knock-out and interface to the driver via 0-10V or DALI, depending
on the model. The wireless devices interface with Leviton's wireless
systems using its built-in radio. The wireless devices are designed to be
powered from the driver and in the case of 0-10V, requires a dim-to-off
driver to be used. The wireless devices may be installed into your fixture
by the fixture manufacturer or may be added in the field if all requirements
are met. When the wireless devices are pre-installed on a fixture, refer to
fixture documentation for installation methods, means, and requirements.

Installation Requirements

• Installation and servicing should always be performed by
qualified personnel.
• 1/2 in. diameter knock-out free of excess material.
• Dim-to-OFF LED driver with 12-24V AUX power supply and 0-10V or
DALI control.
Installation
WARNING: TO AVOID FIRE, SHOCK, OR DEATH: TURN OFF POWER
at circuit breaker or fuse and test that power is off before wiring!
1.
Remove threaded lock nut.
2.
Secure wireless devices in knock-out by inserting until tabs are
holding head firmly against fixture.
3.
Use lock nut to further secure sensor, if needed.
4.
Remove 4 to 5 mm of insulation from each circuit conductor.
5.
Make sure ends of conductor are straight.
6.
Push conductor firmly into appropriate wire connector.
7.
If installing with Emergency Sense Module (ZL027-0ES): Connect
the Emergency Sense Module to the Sensor using the cable included
with the ZL027-0ES.
8.
Connect the Emergency Sense Module to normal power.
9.
Restore power at circuit breaker or fuse.
10.
Proceed to device enrollment per the included sheet and
configuration per your system requirements. Installation is complete.

Emergency Wiring

When used for emergency lighting, the ZL027-0ES Emergency Sense
Module is required and shall be connected using the supplied cable.
The control input wires for the emergency light fixture are connected
to emergency power, and the Emergency Sense Module is connected
to normal power. Upon loss of normal power, the relay closes, and the
controller or sensor 0-10V lines go to high impedance allowing the load to
go to full output powered from the EM Source. Commands to change the
device output from full are ignored when the Emergency Sense Module is
in this mode. Upon restoration of normal power, the controller or sensor
will automatically resume normal operation.
Emergency Self-Test: NFPA 101 Life Safety Code and NEC (Article
700.3(B)) requires regular testing of all emergency equipment. To
perform a test of these products, a Test Switch that is a normally open,
momentary-break type, that returns the equipment to normal status when
released can be installed locally to interrupt normal power and perform
emergency system test.
* The diagram below depicts a "Momentary-Break Type Test Switch" ($)
on the normal power line to trigger the emergency systems test. Clarify
requirements with all local authorities.
EMERGENCY FIXTURE
SENSOR
12 in. Cable
Controller or
MODULE
provided
Sensor
ZL027-0ES
with
Emergency
Sensor Module

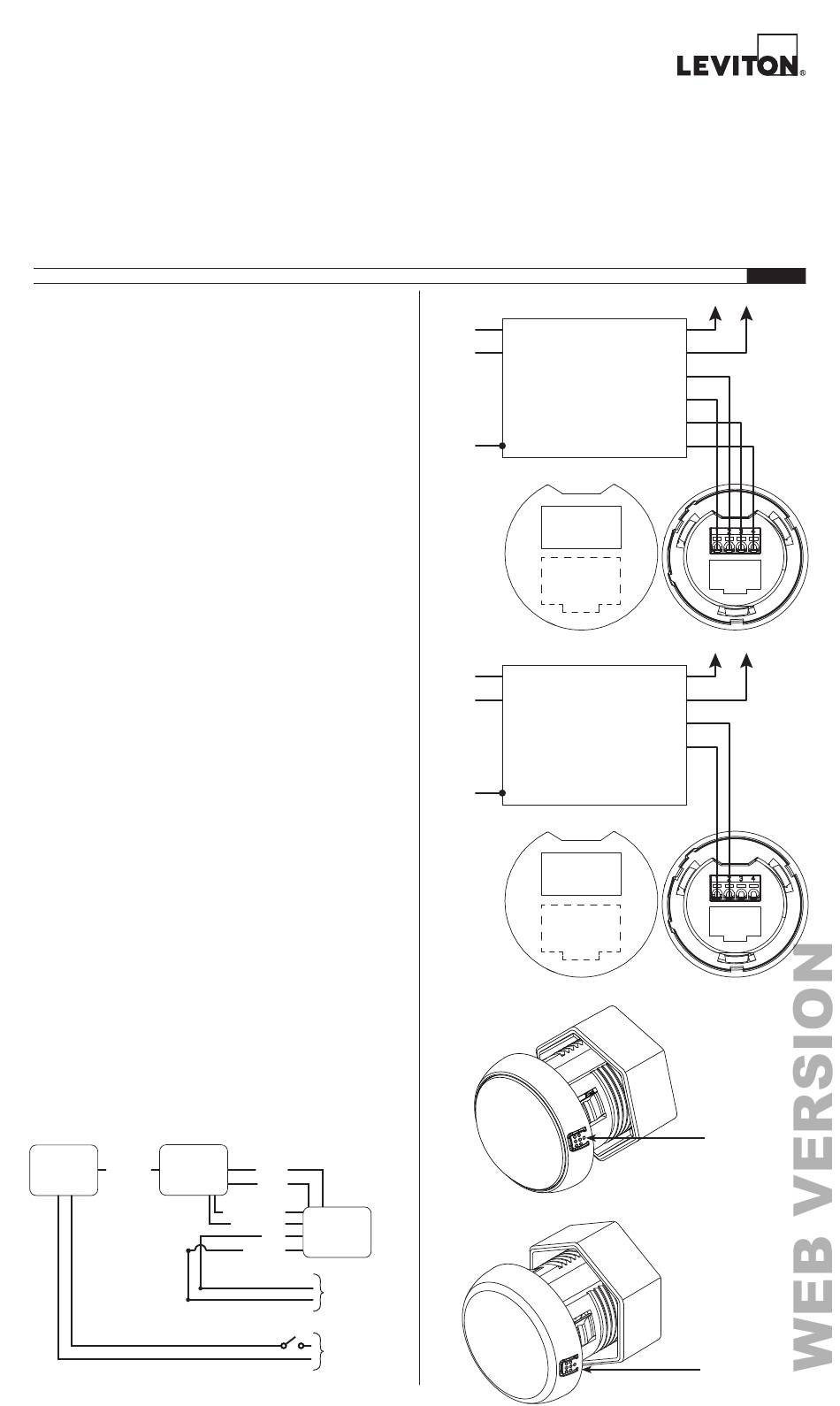

Wireless Intelligent Fixture Sensor and Controller
1/2 in. KO, 0-10V and DALI
Cat. Nos. ZL07S, ZL0DS, ZL070, ZL0D0-N00

INSTALLATION INSTRUCTIONS

AUX +
AUX -
VIOLET (DIM +)
GRAY (DIM -)
LIGHT FIXTURE
LINE
NEUTRAL
LINE
EMERGENCY
NEUTRAL
POWER
$*
LIGHTING CIRCUIT
LINE FEED
(NORMAL POWER)
• For indoor applications only. DO NOT use outdoors.
• DO NOT use this equipment for other than intended use.
• DO NOT mount near gas or electric heaters.
• Equipment should be mounted in locations and at heights where it will not
be subjected to tampering by unauthorized personnel.
• Use this device with COPPER OR COPPER CLAD WIRE ONLY.
SAVE THESE INSTRUCTIONS.
•
ZL070/ZL07S-N00
Neutral
LN
Line
LN
1-Channel
LED Driver
With Auxiliary
Power Output
Earth
GND
A A
U U
X X
+ -
ZL0D0/ZL0DS-N00
Neutral
LN
Line
LN
DALI
LED Driver
Earth
GND
D D
A A
L L
I I
+ -
ZL07S/ZL0DS
ZL070/ZL0D0
PK-A3379-10-00-2A
ENGLISH
(-) LED
(+) LED
(-) AUX
(+) AUX
(-) DIM
(+) DIM
D D
I I
M M
- +
(-) LED
(+) LED
(-) DALI
(+) DALI
N N
C C
Reset
Button
Reset
Button
