Quick Guide

Unboxing and Assembly

1
3
5
7
AFTER SALES SUPPORT
12
86-571-23290996

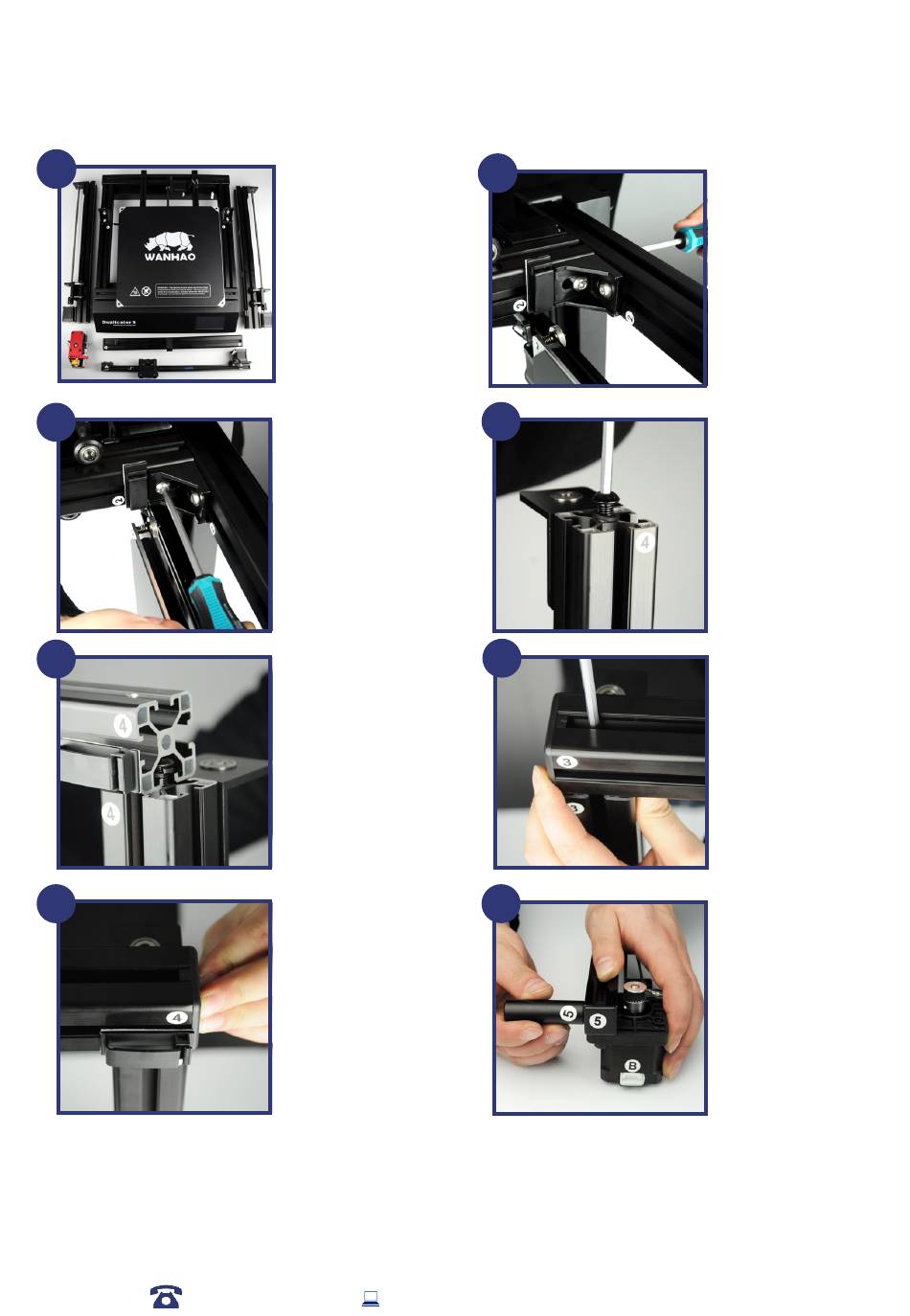

Take out all components
from the box and
place them on the flat
ground.
1-Base
2-Z axis Tower Pillar*2
3-X axis rail
4-X axis gantry
5-MK12 Extruder
Tighten the locking
bolt clockwise. Then
install the other Z
axis pillar onto the
Base.
Slide the X axis pillar into
the No.3 and No.4 bolts. If
there's not enough space,
you may need to re-loose
the locking bolt.
Insert the plastic cover
onto the two ends of X
axis pillar.
Note: Please double
check the Z axis and X
axis pillars. If any bolt
not secured. You need
to secure the screws to
ensure the gantry are
steady and tight.
support@wanhao3dprinter.com
2
4
6
8
Model : Duplicator 9
Place the Base on
it's side. Find the Z
axis pillar with sticker
No.2. Slide the No.2
pillar into the base
vertical locker. Then
tighten the bolt at
bottom of base.
Loose the two locking
bolt on No.3 and No.4
Z axis pillar by around
5mm. So there will be
sufficient space for X axis
pillar to slide in.
To tighten the locking
bolt through the hole on
top of the X axis pillar.
Lock both No.3 and No.4
pillar.
Rotate the cylinder holder
for a bit but not too close.
Tight enough that can not
slide into pillar freely.
This is also same to the
other side with stickers
No.6.
