Quick Guide

Construct and Connect

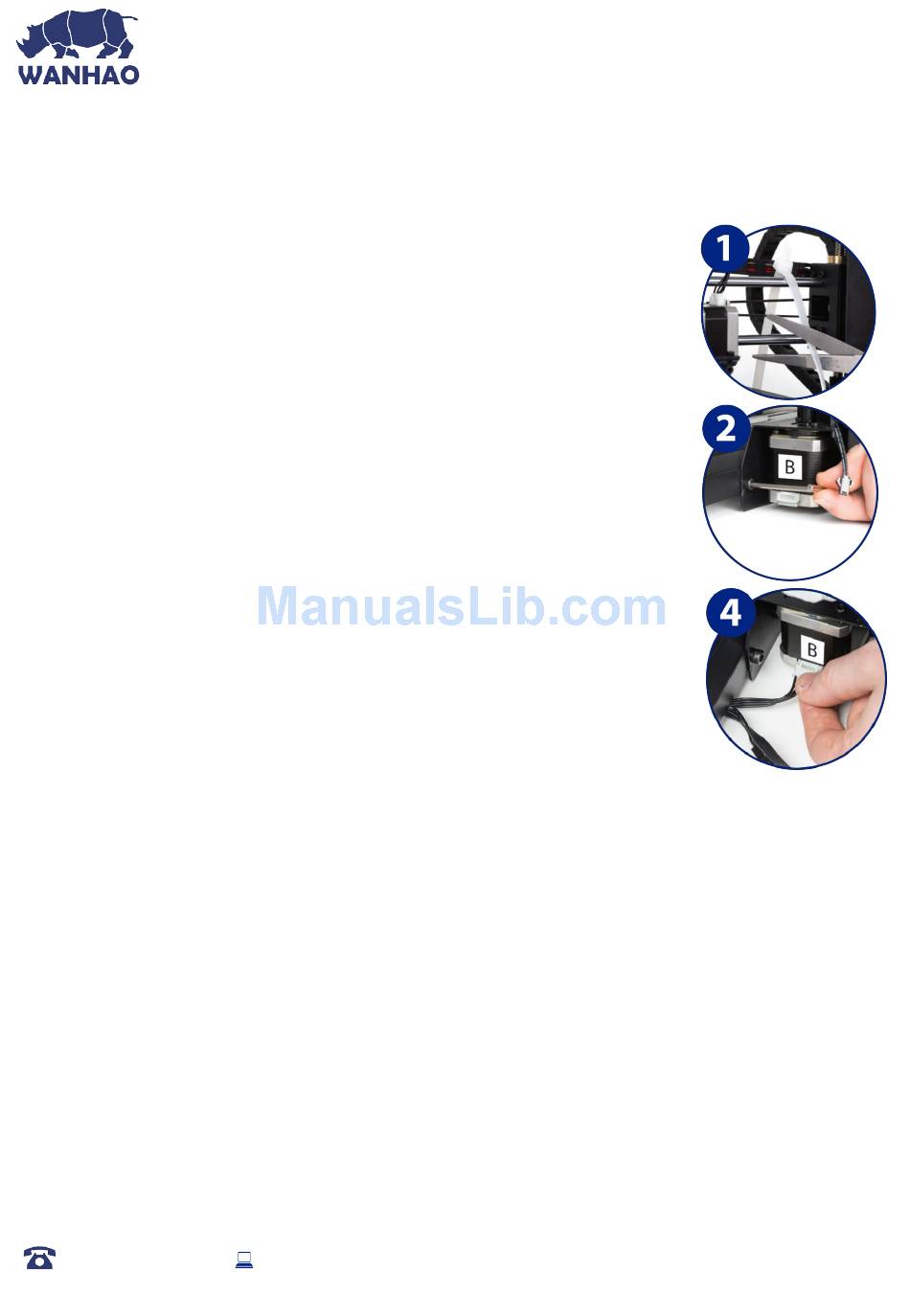

Place the Control Box, Extruder Tower and Heated Print Bed on a
1.
clean, level work space. Carefully remove the cable tie that holds the
Extruder in place
Insert the Heated Print Bed lengthways between the legs of the
2.
Extruder Tower and align the bolt holes on each side. Using the Hex
Wrench, insert and tighten the two external bolts. Place printer on
its side, then insert and tighten the two internal bolts
Carefully cut the cable tie on the left side of the Heated Print Bed
3.
Base. Then, on the left side, insert the long cable connector marked
'A' into the motor connector of the Extruder Tower marked 'A'
On the left side, insert the short cable connector marked 'B' into the
4.
motor connector of the Extruder Tower marked 'B'
On the right side, insert the white connector marked 'C' into the
5.
motor connector of the Extruder Tower marked 'C'
On the left side, insert the black connector marked 'D' into the black
6.
connector of the Extruder Tower marked 'D'Tower marked 'D'
Remove the outer plastic nut from the Filament Spool Holder, then insert the threaded
7.
into the large hole of the Filament Spool Holder Stand. Tighten the plastic nuts on each
side to secure
Position the Filament Spool Holder Stand on top of the Extruder Tower, then insert
8.
the bolts and tighten with the Hex Wrench
Ensure the power switch is in the OFF position, then insert the Power Supply Cable into the
9.
back of the Control Box. Insert the other end into a nearby mains power outlet. Turn on the
power outlet, then turn on the 3D Printer, using the switch on the back of the Control Box
Wait for the printer to initialise, with Printer Ready shown at the bottom of the LCD. Press the
10.
Navigation Dial to enter the menu system. Rotate the Dial until Position is highlighted, then
press the Dial to select. Rotate the Dial until Z. Pos. Fast is highlighted, then press to select.
Rotate the Dial clockwise, raising the Extruder so that you can easily access the Heated Print
Bed. Turn off your 3D Printer
