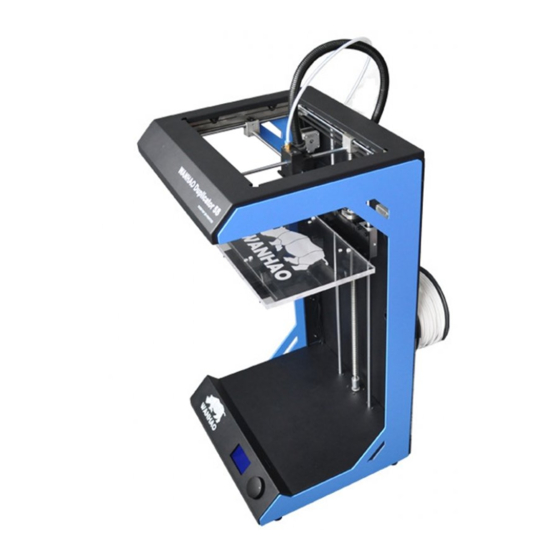

WANHAO Duplicator 5S User Manual

Desktop 3d printer
Hide thumbs Also See for Duplicator 5S:

Advertisement

Quick Links

Download this manual
Desktop 3D Printer
Duplicator 5S
User Manual
www.wanhao3dprinter.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Duplicator 5S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WANHAO Duplicator 5S

Summary of Contents for WANHAO Duplicator 5S

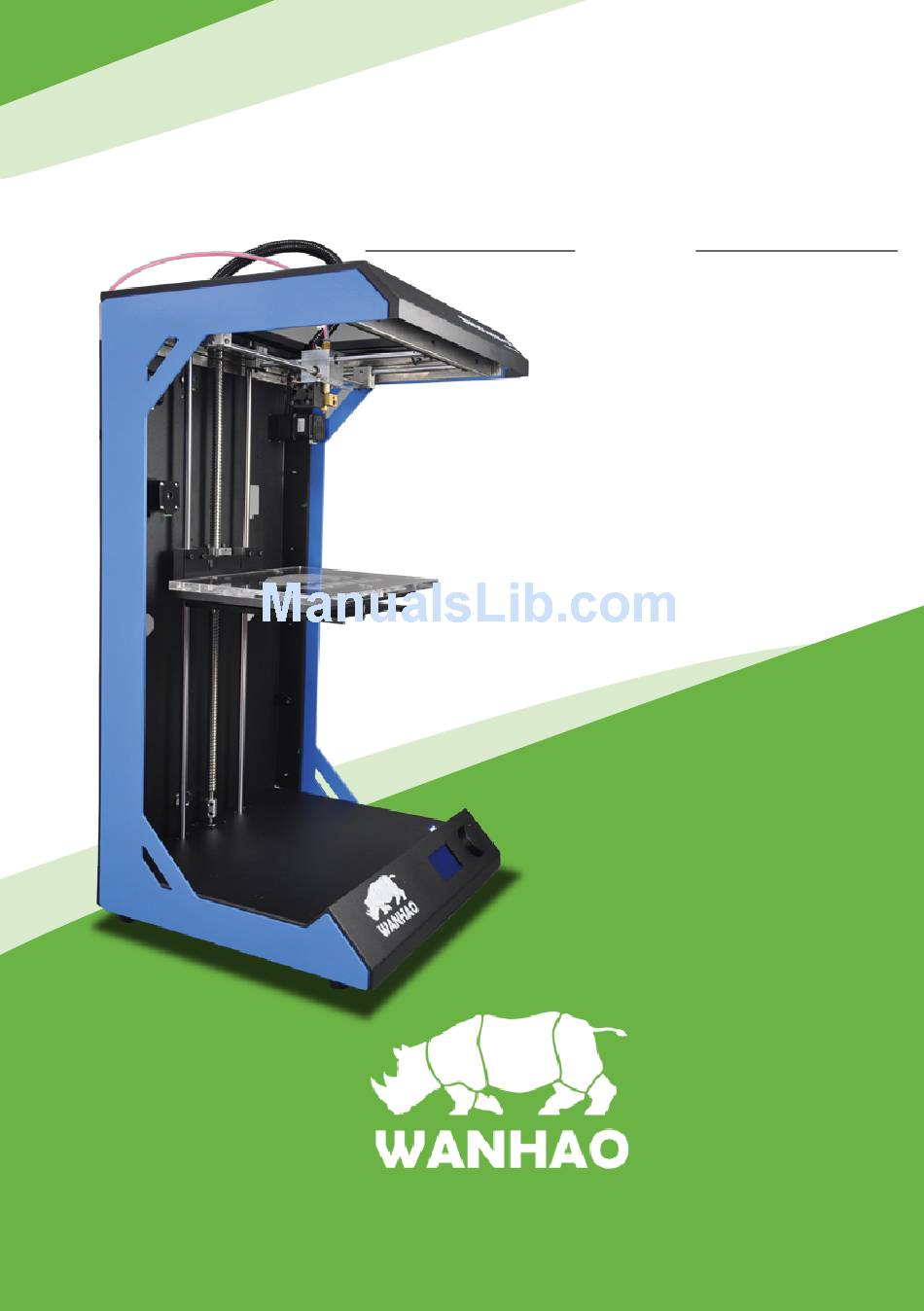

  • Page 1 Desktop 3D Printer Duplicator 5S User Manual www.wanhao3dprinter.com...
  • Page 2 Duplicator 5S. WANHAO is excited to welcome you to the world of the WANHAO Duplicator 5S .Following this guide will help ensure that you are getting the most out of your machine, and that you continue to make amazing things.
  • Page 3 Duplicator5S User Manual MAX 295*195*575MM Resolution:0.02mm Speed:300mm/s Software:Wanhao Maker...
  • Page 4 The Duplicator 5S generates high temperatures and has hot moving parts that can cause injury.Never reach inside of the Duplicator 5S while it is in operation. Always control the Duplicator 5S from the push wheel on the front or with the power-switch on the back.
  • Page 5 2 Unboxing 1.Place The Duplicator 5S box on the 2.Cut of the rope and Discard ground next to a clean, flat workspace the top cardboard insert. 4.Now you can clear away the 3.Now remove the inner cardboard packging films and get the box, and take the Duplicator 5S Duplicator 5S.

  • Page 6: What's In The Box

    3 What's in the box 1 pc bulid plate 1 pc spool holder 1 pc clamp 1 pc printer 1 pc USB cable 1 pc Print wrench 1pc Power supply 1 pc Print raiser unit 1 pc SD card reader 1 pc 3mm filament 1 pc SD card...
  • Page 7 4 D5S glance 1.LED display 2. Push and Rotate button 3. Extruder Cable 4. Filament tube 5. MK10 Extruder 6. Building Plate 7. Building Plate Screw 8. Spool Holder 9. USB Socket 10. Power Switch 11. Material Feeder 12. Power Socket...

  • Page 8: Install Power Supply

    5 Install Power Supply Now the next step is to give the Duplicator 5 power.This is done by attaching the external power supply. 1. If the power supply has to be detached,the first step is to make sure the Duplicator5S turned off. 2.The corresponding power cable (for your country) has to be inserted in the power brick of the power supply.
  • Page 9 4.Now plug the external power supply into the wall socket. 5.Next take the power plug out of the wall socket. CAUTION：Please make sure not to pull the cable. 6.The main cable in the power brick can be detached by pulling it out gently.
  • Page 10 How to level the buling plate 1. Navigate the Rotate button and push 2. Navigate the Rotate button to utility the button and Push the button 3. Navigate to Calibrate plate and push 4.Prepare a name card, Wait untilauto- the button homing f inshed 5.Push the button and adjust nut below 6.Insert one name card between the...
  • Page 11 7Loading filament material 1.Now that we have completed the initial leveling tasks we [Continue] and go to the step where we are going to insert filament material in the material feeder.Navigate the control button to ---Utility---Load 2. Wait the extruder to heat up to 220℃.
  • Page 12 8How to Install Wanhao Maker software prepares your 3D model into Machine language which required to make 3D object. Wanhao Maker is developed by Wanhao International Team aimed to make 3D printing式。Wanhao Maker as affordable and easy as possible.It contains most function you need to prepare a 3D file for printing.
  • Page 13 9Wanhao Maker界面 1.Load file:Click this button to load an object to your print area. You can add as many objects as you can fit on the plate. 2.Start Making:Press this button to start Slicing. There will be more options after pressing the button.
