EPIC SBC supports AMD® Embedded G-Series SoC with
VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini,
SATA 6Gb/s, mSATA, COM, HD Audioand RoHS
NANO-SE-i1/KBN-i1/GLX
Quick Installation Guide
Package List
NANO-SE-i1/KBN-i1/GLX package includes the following items:

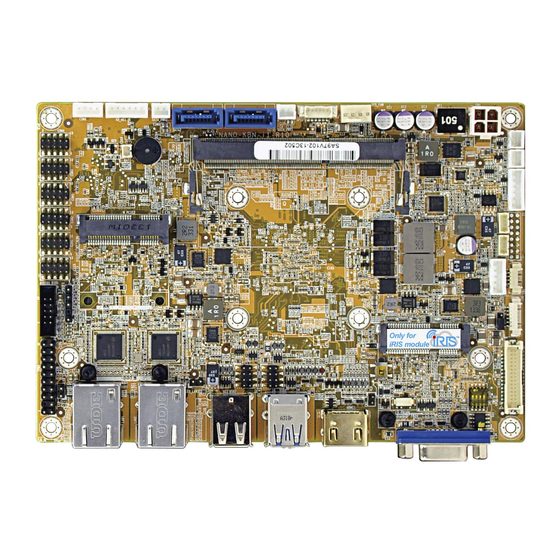

1 x NANO-SE-i1/KBN-i1/GLX single board computer
1 x Power cable (P/N: 32100-087100-RS)
2 x RS-232 cable (P/N: 32205-002700-100-RS )
2 x SATA with power cable kit (P/N: 32801-000201-100-RS )
1 x Audio cable (P/N: 32000-072100-RS)
1 x QIG (Quick Installation Guide)
©2018 Copyright by IEI Integration corp.
All manuals and user guides at all-guides.com
Version 1.0
Jul 20, 2018.
All rights reserved.
1
Advertisement
Related Manuals for IEI Technology NANO-KBN-i1
Summary of Contents for IEI Technology NANO-KBN-i1
- Page 1 All manuals and user guides at all-guides.com EPIC SBC supports AMD® Embedded G-Series SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 6Gb/s, mSATA, COM, HD Audioand RoHS NANO-SE-i1/KBN-i1/GLX Quick Installation Guide Version 1.0 Jul 20, 2018. Package List NANO-SE-i1/KBN-i1/GLX package includes the following items: ...
-
Page 2: Specifications
All manuals and user guides at all-guides.com Specifications SoC: » AMD® Embedded G-Series "Steppe Eagle" SoC GX-424CC on-board Soc (2.4GHz, quad-core, 2MB cache, TDP=25W) » AMD® Embedded G-Series "eKabini" SoC GX-415GA on-board Soc (1.5GHz, quad-core, 2MB cache, TDP=15W) » AMD® Embedded G-Series "LX" SoC GX-210KL on-board Soc (1.0GHz, dual-core, 1MB cache, TDP=4.5W) ... - Page 3 (RAID 0,1,5,10) 2 x USB 3.0 (on rear I/O) 6 x USB 2.0 (2 on rear IO, 4 by pin header) * For NANO-SE-i1-4241-R10, NANO-KBN-i1-4151-R10, NANO-GLX-2101-R10 4 x USB 2.0 (2 on rear IO, 2 by pin header) * For NANO-GLX-2101-ECO-R10...
-
Page 4: Ordering Information
3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA , COM and Audio, iRIS-1010 and RoHS NANO-KBN-i1-4151-R10: EPIC SBC supports AMD® 28nm quad-core GX-415GA 1.5GHz (15W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 6Gb/s, mSATA, COM, iRIS-1010, HD Audio and RoHS ... - Page 5 All manuals and user guides at all-guides.com iRIS-1010-R10: IPMI 2.0 adapter card with AST1010 BMC chip (w/o KVM over IP function) for PCIe Mini socket interface * NANO-GLX-2101-ECO-R10 Sku does not support iRIS. 32000-023800-RS: PS/2 KB/MS cable, 135mm/110mm, P=2.0 ...
-
Page 6: Jumpers Setting And Connectors
All manuals and user guides at all-guides.com Jumpers setting and connectors LABEL FUNCTION J_ATX_AT1 AT/ATX mode select switch J_CMOS1 Clear CMOS button LCD voltage selection LVDS Panel Resolution Selection AUDIO1 Audio connector BAT1 Battery connector Brightness button connector CHASSIS1 Chassis intrusion connector DIMM1 DDR3 SO-DIMM slot DIO1... - Page 7 All manuals and user guides at all-guides.com SPI1 SPI Flash connector SYS_FAN System fan connector TPM1 TPM connector Internal USB 2.0 connectors USB3, USB4 * NANO-GLX-2101-ECO-R10 Sku only with USB3, Please refer to page 2 (I/O Interface) for more details. HDMI1 HDMI connector LAN1, LAN2...
- Page 8 All manuals and user guides at all-guides.com SW1: LVDS panel resolution selection * ON=0, OFF=1; Single=S, Dual=D 4-3-2-1 DESCRIPTION 0000 800x600 18bit S (default) 0001 1024x768 18bit S 0010 1024x768 24bit S 0011 1280x768 18bit S 0100 1280x800 18bit S 0101 1280x960 18bit S 0110...
- Page 9 All manuals and user guides at all-guides.com BAT1: Battery connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION VBATT CN6: Brightness button connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION PWRON BLUP BLDN CHASSIS1: Chassis intrusion connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +V3.3A_EC CHASSIE_EC DIO1: Digital I/O connector...
- Page 10 All manuals and user guides at all-guides.com LVDS1: LVDS LCD connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION A0P_L A0M_L A1P_L A1M_L A2P_L A2M_L CLK1P_L CLK1M_L A3P_L A3M_L A4P_L A4M_L A5P_L A5M_L A6P_L A6M_L CLK2P_L CLK2M_L A7P_L A7M_L KB_MS1: Keyboard and mouse connector PIN NO.
- Page 11 All manuals and user guides at all-guides.com PWR_BTN1: Power button connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION PWRBTSW# CN1: Power connector (12V) PIN NO. DESCRIPTION PIN NO. DESCRIPTION 12V-IN 12V-IN RST_BTN1: Reset button connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION PM_SYSRST# COM1: RS-232 serial port connector PIN NO.
- Page 12 All manuals and user guides at all-guides.com COM3: RS-232 serial port connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION NDCD3 NDSR3 NRX3 NRTS3 NTX3 NCTS3 NDTR3 NRI3 COM4: RS-232 serial port connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION NDCD4 NDSR4 NRX4 NRTS4 NTX4 NCTS4...
- Page 13 All manuals and user guides at all-guides.com SATA1, SATA2: Serial ATA 3.0 connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION SATA_TX+ SATA_TX- SATA_RX- SATA RX+ SATA_PWR1, SATA_PWR2: SATA power connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION CN3, CN4: SMBus connectors PIN NO. DESCRIPTION PIN NO.
- Page 14 All manuals and user guides at all-guides.com TPM1: TPM connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION LPC_CLK1 LFRAME# LPC_RST# LAD3 LAD2 +3.3V LAD1 LAD0 SCLK0 SDATA0 +3.3V_DUAL SERIRQ LPC_CLKRUN# LPCPD# LDRQ#0 USB3, USB4: Internal USB 2.0 connectors PIN NO. DESCRIPTION PIN NO.
- Page 15 All manuals and user guides at all-guides.com LAN1: LAN connector DESCRIPTION DESCRIPTION LAN1_MDI0+ LAN1_MDI0- LAN1_MDI1+ LAN1_MDI1- LAN1_MDI2+ LAN1_MDI2- LAN1_MDI3+ LAN1_MDI3- LAN1_LINK100 LAN1_LINK1000 LAN1_ACT-1 POWER LAN2: LAN connector DESCRIPTION DESCRIPTION LAN2_MDI0+ LAN2_MDI0- LAN2_MDI1+ LAN2_MDI1- LAN12_MDI2+ LAN2_MDI2- LAN2_MDI3+ LAN2_MDI3- LAN12_LINK100 LAN2_LINK1000 LAN2_ACT-1 POWER...
- Page 16 All manuals and user guides at all-guides.com USB1: USB 3.0 connectors DESCRIPTION DESCRIPTION USB_3P0_VCC1 USB2P8_DM0_L USB2P8_DP0_L USB3P0_RXDN0_C USB3P0_RXDP0_C USB3P0_TXDN0_C USB3P0_TXDP0_C USB_3P0_VCC2 USB2P9_DM1_L USB2P9_DP1_L USB3P0_RXDN1_C USB3P0_RXDP1_C USB3P0_TXDN1_C USB3P0_TXDP1_C USB2: USB 2.0 connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION POWER DATA0_N DATA0_P POWER DATA1_N DATA1_P...
- Page 17 All manuals and user guides at all-guides.com Board Layout: Jumper and Connector Locations (Unit: mm)
