4.4.2 The Setup Mode Parameter Menu

Folder Name: Select a file name on the SD CARD; the range is WTA01 to WTA10

File Name: Set a file name on the SD CARD (50 filenames are permitted)

REC Date: Show a file's date-time stamp (Year / Month / Date / Hour / Min / Sec)

Sampling Time: Set the datalogger sampling rate from 2 to 7200 seconds

Delete File: Delete an existing data file from the SD CARD

SD Format: Format the SD CARD

PT: Set the Potential Transformer ratio from 1 to 1000

CT: Set the Current Transformer ratio from 1 to 600

Audible Tone: Set the keypad beeper ON or OFF

Trans. Ref.: Set the Transient voltage reference

SDVP: Set the threshold for the Swells/Dips transient Voltage Potential in percent (0-100%)

Clamp Type: Select from the clamp type menu

A (Amps): Set the Current range

V (Volts): Set the Voltage range

RS232 Out Select: RS232 output function (up to nine items can be output); refer to the
RS232 section of the user guide for detailed information

Year: Set the current year

Month: Set the current month

Date: Set the current date

Hour: Set the current hour

Minute: Set the current minute

Second: Set the current second
800.561.8187

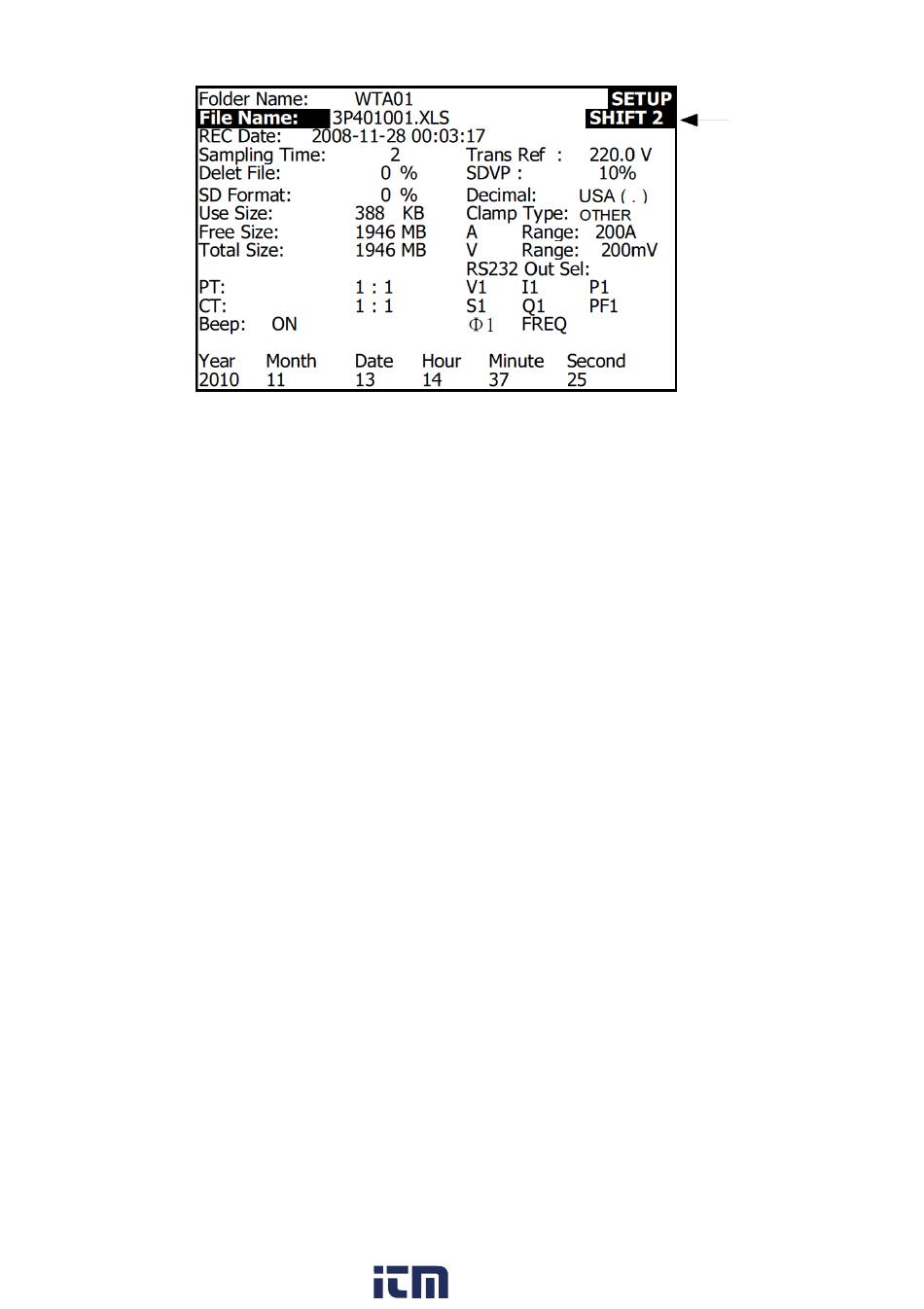

Setup Mode Screen with SHIFT 2 icon
