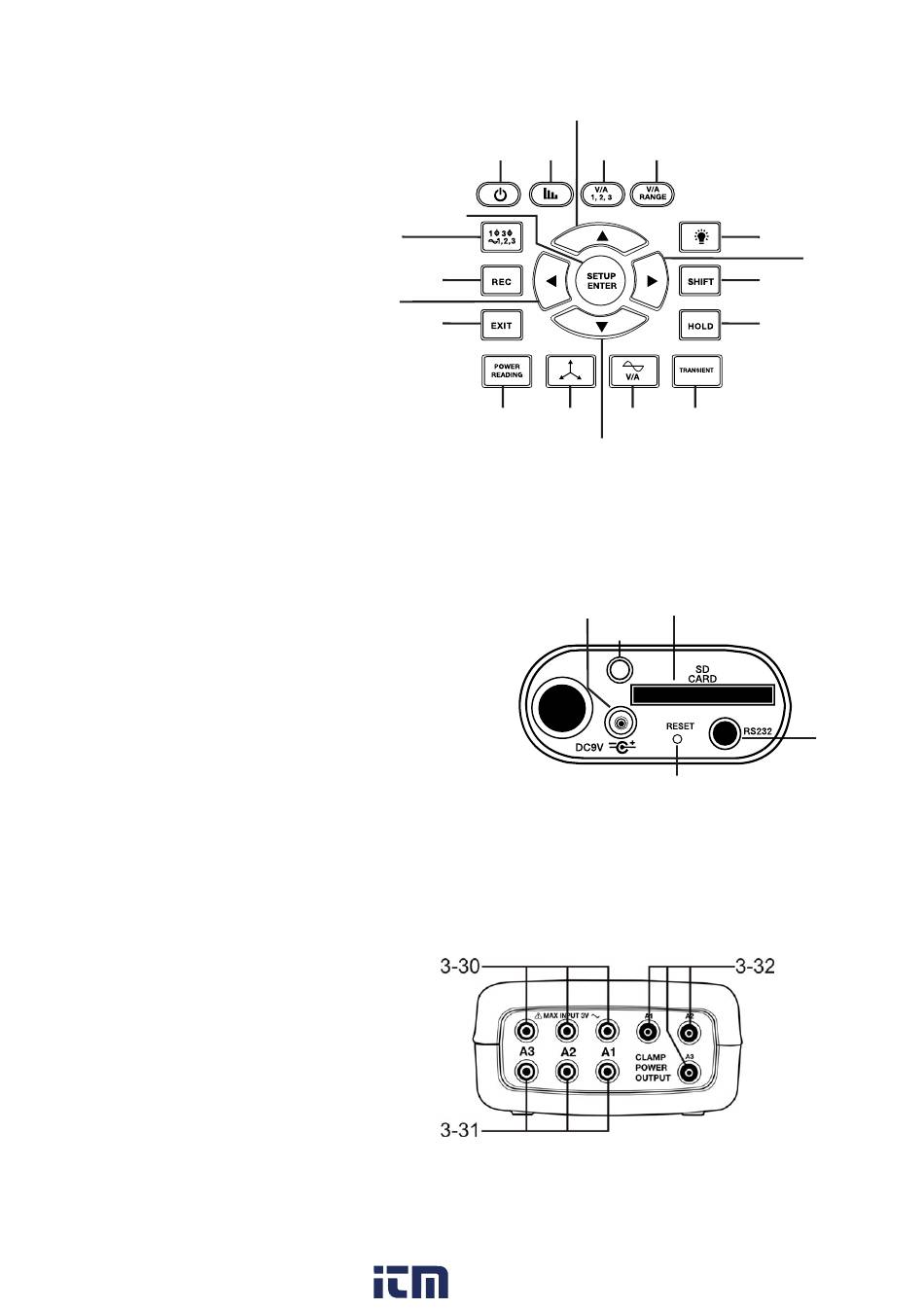

Keypad Description
3-6 Display Backlight ON-OFF
3-7 Power ON-OFF
3-8 Exit (programming)
3-9 REC datalogger memory
3-10 Volt/Amp range
3-11 Shift (programming)
3-12 Setup / Enter
3-13 HOLD (freeze display)
3-14 Transient display
3-15 V/A Waveform display
3-16 Phasor display
3-17 Power Measurement
3-18 ▲ up arrow navigation
3-19 ▼down arrow navigation
3-20 ◄ left arrow navigation
3-21 ► right arrow navigation
3-22 Phase / Wire setup
3-23 Harmonics display
3-24 Harmonics Analysis display
Meter Right Side
3-25 9V power adaptor jack
3-26 SD memory card socket
3-27 RS232 PC interface socket
3-28 Reset button
3-29 Screw fastener for protective cap
Meter Top
3-30 Clamp positive input jacks
3-31 Clamp negative input jacks
3-32 Clamp power lead connections
Note: The Battery compartment and Tilt Stand are located on the rear of the instrument
