User's Guide
Heavy Duty Datalogger Module
Model 380340

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 380340 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extech Instruments 380340

Summary of Contents for Extech Instruments 380340

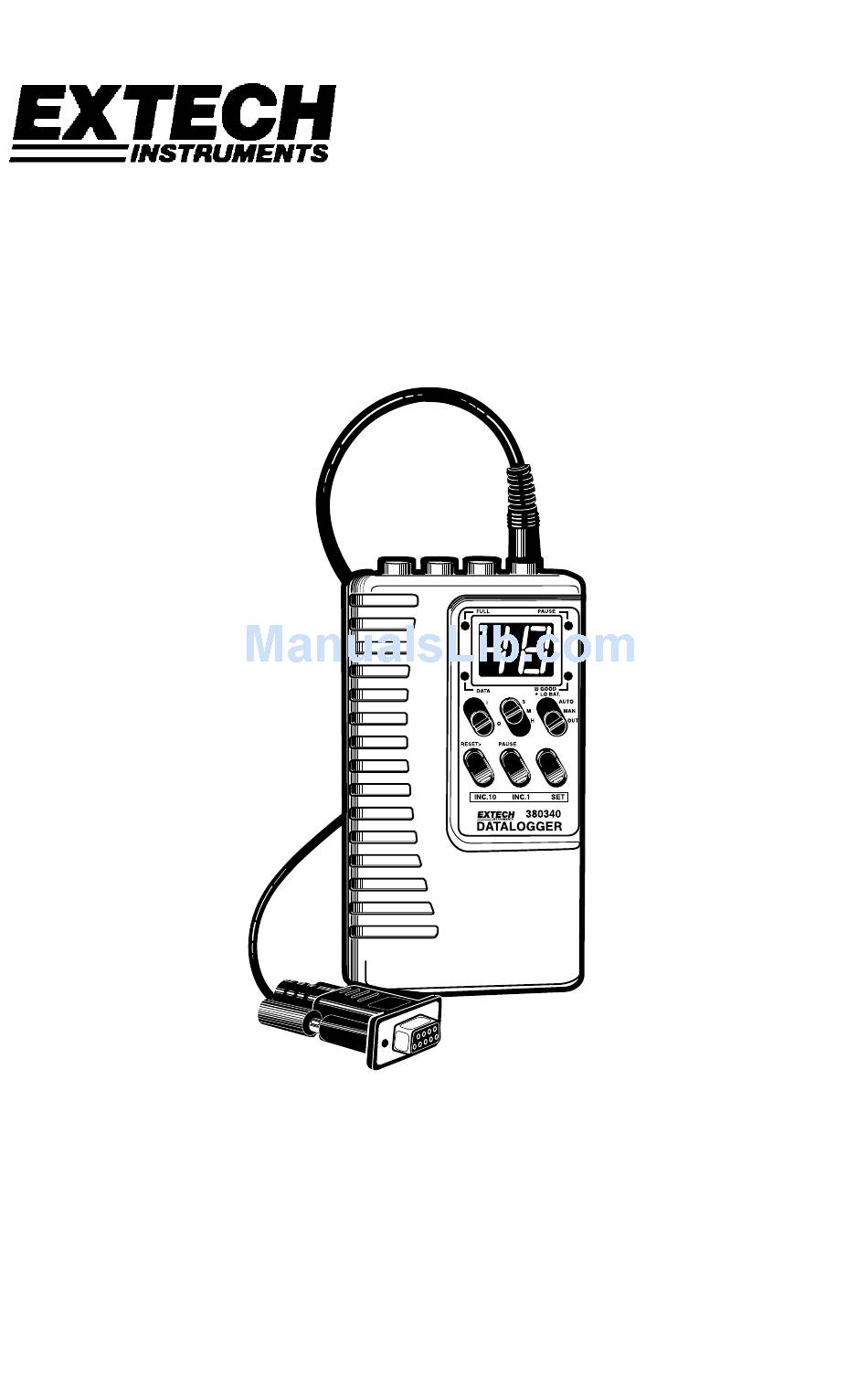

  • Page 1 User's Guide Heavy Duty Datalogger Module Model 380340...

  • Page 2: Specifications

    Introduction Congratulations on your purchase of Extech’s 380340 Datalogger Module. The Datalogger connects to and records data from Extech Heavy Duty Series Meters. The sample rate at which data is recorded is user selectable. Readings stored in the Datalogger can later be transferred to a PC using the supplied software and communication cables.
  • Page 3 Meter Description FRONT PANEL VIEW Input / Output terminals PAUSE LED indicator LCD Display Battery LED status indicator Slide switches and buttons Battery compartment (on rear) Memory FULL LED indicator DATA recording LED indicator AC adaptor input FRONT PANEL VIEW TOP VIEW TOP VIEW Optically isolated INPUT jack...
  • Page 4 Datalogger Operation Note: The Heavy Duty Meters have an Auto-Shutoff feature that automatically turns off the meter (after 10 to 30 minutes depending on the model). This feature should be disabled during a datalogging session. Press the ‘RECORD’ button on the meter to disable the Auto- Shutoff feature.
  • Page 5 FULL Indicator The FULL indicator lights when 7999 data points have been recorded. NOTE: Data will remain in memory until the Datalogger is RESET (see previous section) or until the batteries are removed. Manual Datalogging Manual datalogging allows the user to record one reading at a time. Turn the Datalogger OFF (‘0’...

  • Page 6: Battery Replacement

    Support Hotline (781) 890-7440 Tech support: Ext. 200; Email: support@extech.com Repair/Returns: Ext. 210; Email: repair@extech.com Website: www.extech.com Copyright © 2004 Extech Instruments Corporation All rights reserved including the right of reproduction in whole or in part in any form. V2.0 3/04...
