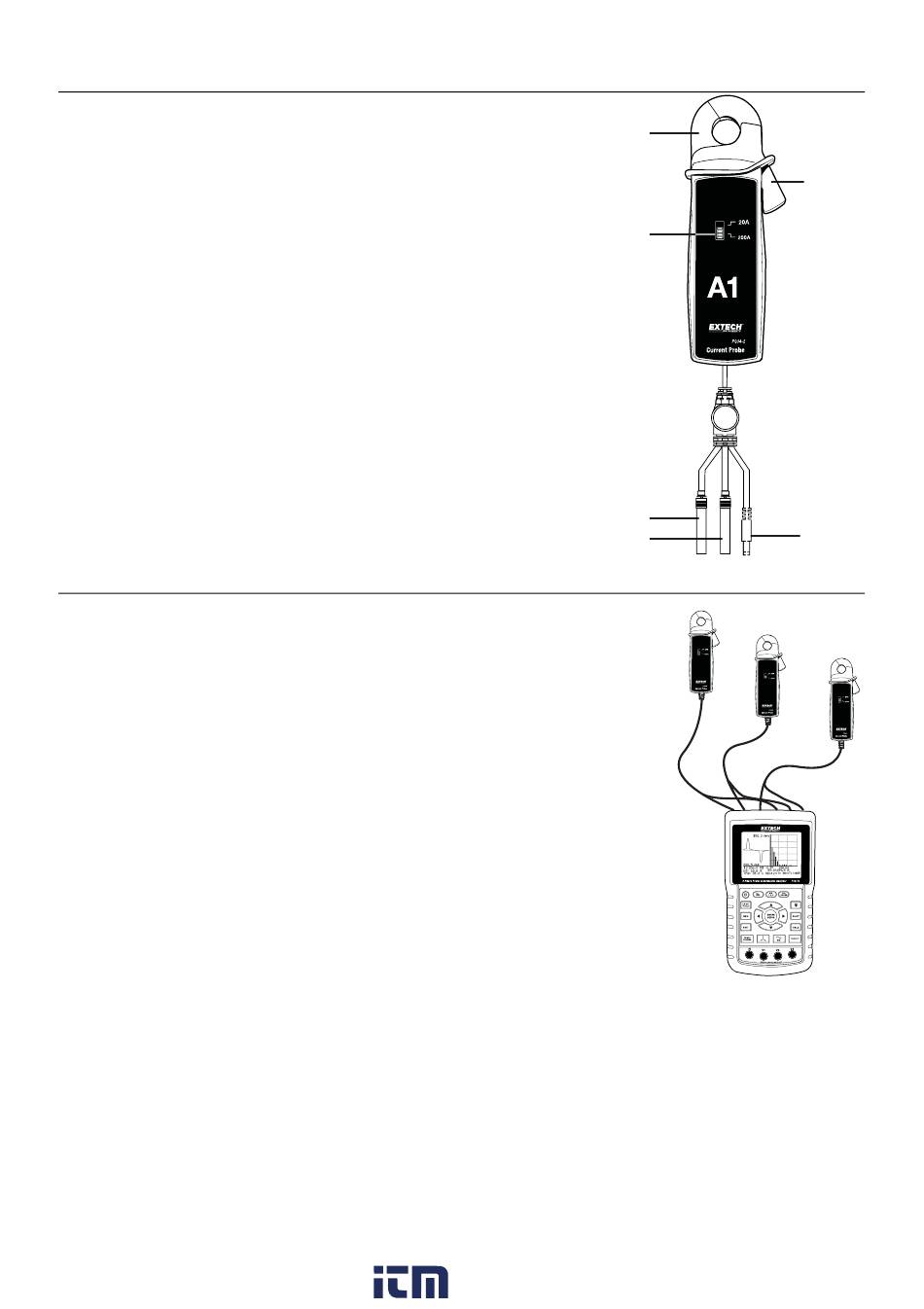

Probe Description
1.
2.
3.
4.
5.
6.
Operation
1.
Connect the "A1" signal output cables to the matching input
sockets on the top of the analyzer.
2.
Connect the "A1" power cable to the matching power socket on
the top of the analyzer.
3.
Set the "200A-20A" range switch to the range appropriate for
the application.
Note: Make sure the range set on the clamp matches the
4.
Connect the "A2" and "A3" clamps as above, if needed.
5.
Press the "Trigger" to open the jaws and clamp around a single
conductor.
6.
Power on the power analyzer
800.561.8187
Current Sensing Jaws
Jaw Trigger
1200A-200A-20A range switch
Signal output plug ( +, red )
Signal output plug ( -, black )
DCV power plug
range set in the analyzer.
www.
3
information@itm.com
.com
1
2
3
4
6
5
PQ34-2-EU-EN V1.0 01/12
