User's Guide

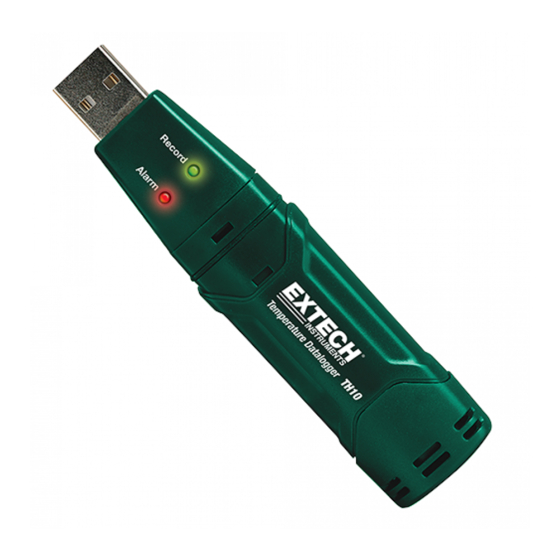

Temperature Datalogger
Model TH10
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
Visit us at www.TestEquipmentDepot.com
Back to the Extech TH10 Product Info Page
FAX 781.665.0780 - TestEquipmentDepot.com
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Extech Instruments TH10
Summary of Contents for Extech Instruments TH10
- Page 1 Model TH10 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Back to the Extech TH10 Product Info Page Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 FAX 781.665.0780 - TestEquipmentDepot.com...
- Page 2 User-Programmable Alarm Thresholds for Temperature Analysis software used to view graph Long battery life Description 1. Protective cover 2. USB connector to PC port 3. Start button 4. Temperature sensor 5. Alarm LED (red/yellow) 6. Record LED (green) 7. Mounting clip TH10 V1.0 9/07...
-
Page 3: Operation
INSTALLING THE USB DRIVER Plug the TH10 into an available USB port on the PC. If this is the first time that the TH10 has been connected to the particular port on the PC, the following screen will appear: Make sure the program disk is still in the PC CD-ROM drive. -
Page 4: Menu Bar Description
The MANUAL and INSTANT select buttons allow the user to start data logging immediately when the Setup window is exited (INSTANT), or at a later time (MANUAL). The LOGGER NAME field allows the user to select a unique name for the TH10. The SAMPLE POINTS field instructs the TH10 to take a fixed number of readings. -
Page 5: Data Download
If INSTANT was selected in the SETUP window, the TH10 begins logging at the instant the SETUP button is pressed. If MANUAL was selected, the TH10 must be manually started by pressing and holding the device’s yellow button for approx. - Page 6 In the screen below press VIEW to see the data graphically. If there are no readings currently stored in the TH10, the program will let the user know via a warning screen. TH10 V1.0 9/07...
- Page 7 BACKGROUND: Select background color scheme. GRID LINES: Add or remove grid lines from x and y axes. MASK POINTS: Places dots on the traces for the actual data points, breaking up the continuous nature of a trace. TH10 V1.0 9/07...
-
Page 8: File Print
Note that color graph windows can be accurately printed on color printers. Note : The TH10 retains data in its internal memory until the user begins a new logging session. Starting a new logging session clears all of the TH10’s stored readings; be sure to save previous data before starting a new logging session. - Page 9 Download data - TH10 memory full To save power, the TH10’s LED flashing cycle can be changed to 20s or 30s via the supplied software. To save power, alarm LEDs for temperature can be disabled via the supplied software. †...
-
Page 10: Specifications
F (-35 to 80 Battery type 3.6V Lithium (1/2 AA) (SAFT LS14250, Tadiran TL-5101 or equivalent) Battery life 1 year (typ.) depending on logging rate, ambient temperature, & use of Alarm LEDs Dimensions/Weight 4x1x.9” (101x25x23mm) / 6oz (172g) TH10 V1.0 9/07... -
Page 11: Battery Replacement
It is highly recommended that the battery be replaced every 12 months, or prior to logging critical data. The TH10 does not lose its stored readings when the battery weakens or when the battery is replaced; the data logging process will however be stopped and cannot be re-started until the battery has been replaced and the logged data has been downloaded to PC.
