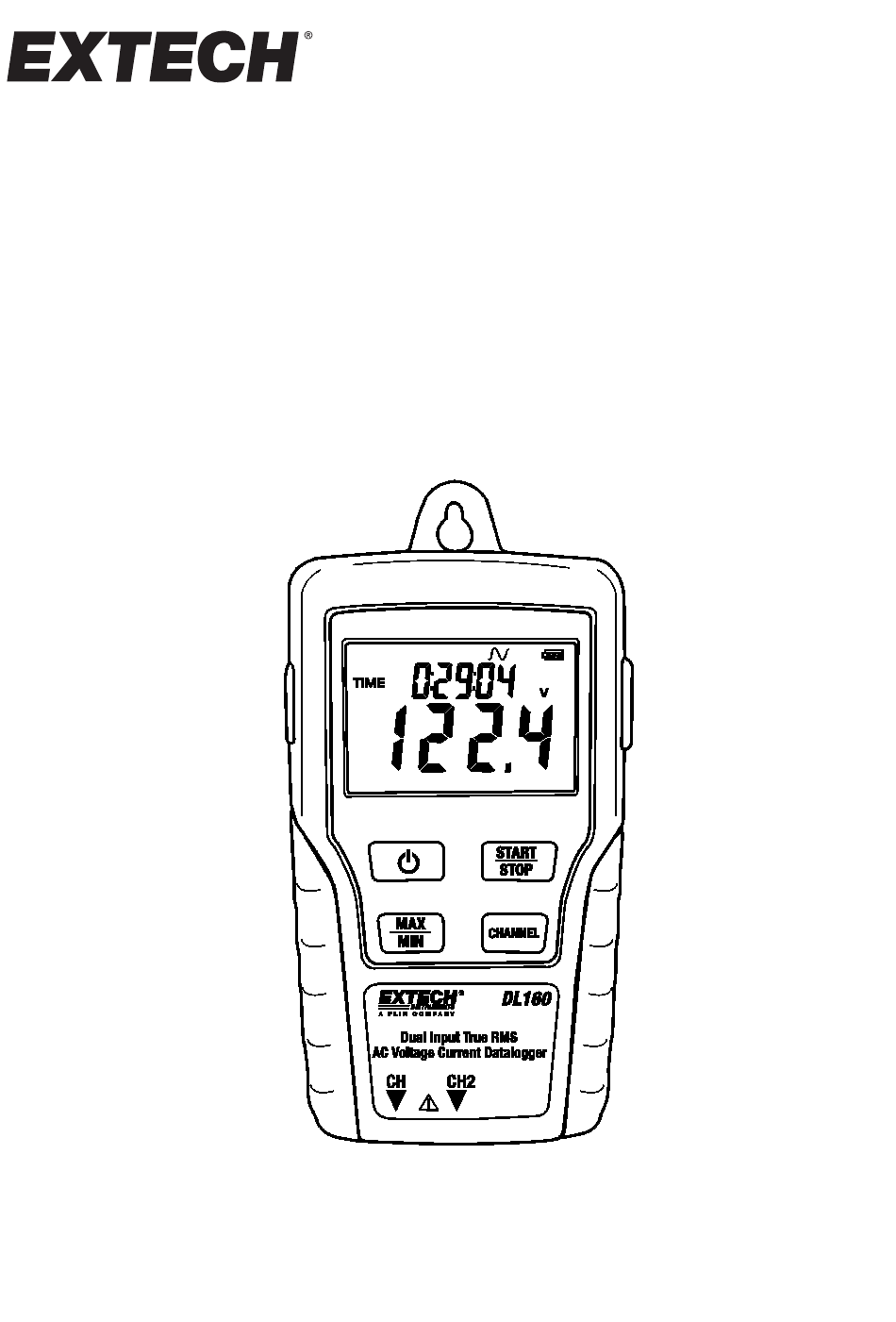

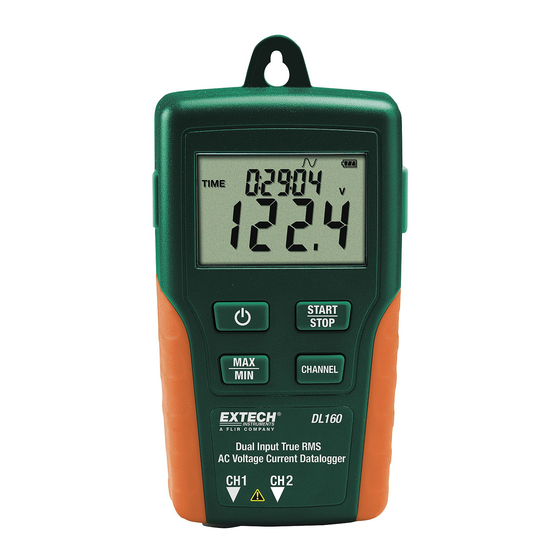

- Page 1 USER GUIDE Dual Input True RMS AC Voltage/Current Datalogger Model DL160 Additional User Manual translations available at www.extech.com...
- Page 2 Switch off the meter after use. Remove the AAA batteries when the meter will be stored for • a period of time.. • When cleaning, do not use abrasives or solvents on the meter, use a damp cloth and mild detergent only. DL160-en-US_V1.6 7/22...
- Page 3 9. AC Current Clamp Jaw: Clamp the jaws around a single conductor for AC current measurements to 200A 10. Jaw Opening Trigger 11. CH Plug 12. AC Voltage Probes or Alligator clips 13. Voltage module 14. CH Plug DL160-en-US_V1.6 7/22...
-
Page 4: Operation
Check the software download page of the website www.extech.com/software for the latest version of the PC software and its operating system compatibility. Download and unzip the software. Run ExtechInstaller.exe and then refer to the instructions provided in the HELP Utility within the software program. DL160-en-US_V1.6 7/22... -
Page 5: Specifications
-4°F to 140°F (-20°C to 60°C) Storage Humidity < 80% relative humidity. Dimensions 4.5 x 2.5 x 1.3” (114 x 63 x 34mm) Weight 8.7oz. (248g) Function Range Accuracy Voltage (40Hz to 1kHz) 10VAC to 600.0VAC ±2.0%±1V Current (50/60Hz) 10A to 200.0A ±2.0%±1A DL160-en-US_V1.6 7/22... -
Page 6: Two Year Warranty
Calibration, Repair, and Returns: repair@extech.com Technical Support: https://support.flir.com Copyright © 2022 Teledyne FLIR Commercial Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form www.extech.com This document does not contain any export-controlled information DL160-en-US_V1.6 7/22...
