EX-1144HMVS
3. Layout, Connections & Jumper Settings

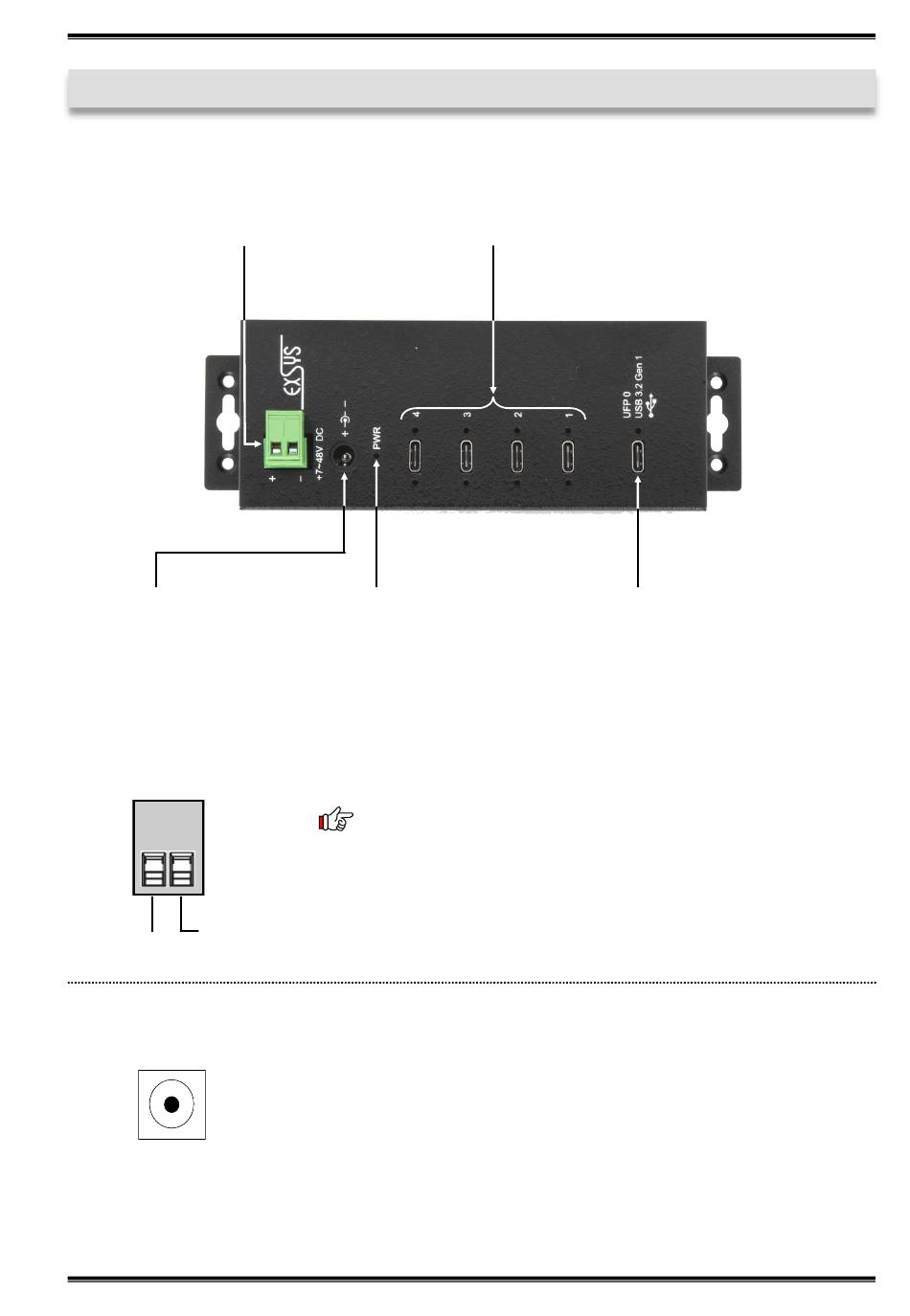

3.1 Layout

7-48V T-Block for optional
external Power Supply
7-48V DC-Connector
for optional external
Power Supply

3.2 Connections

+7V - 48V T-Block:
GND (Ground)
+7V - 48V
7-48V DC-Connector:
© Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved
4x USB 3.2 (Gen1)
Downstream C-Port
Power LED
ATTENTION!!!
Never connect power to GND, it will destroy
your Hardware!!!
ATTENTION!!!
Never plug in with force.
9
1x USB 3.2 (Gen1)
Upstream C-Port
English
