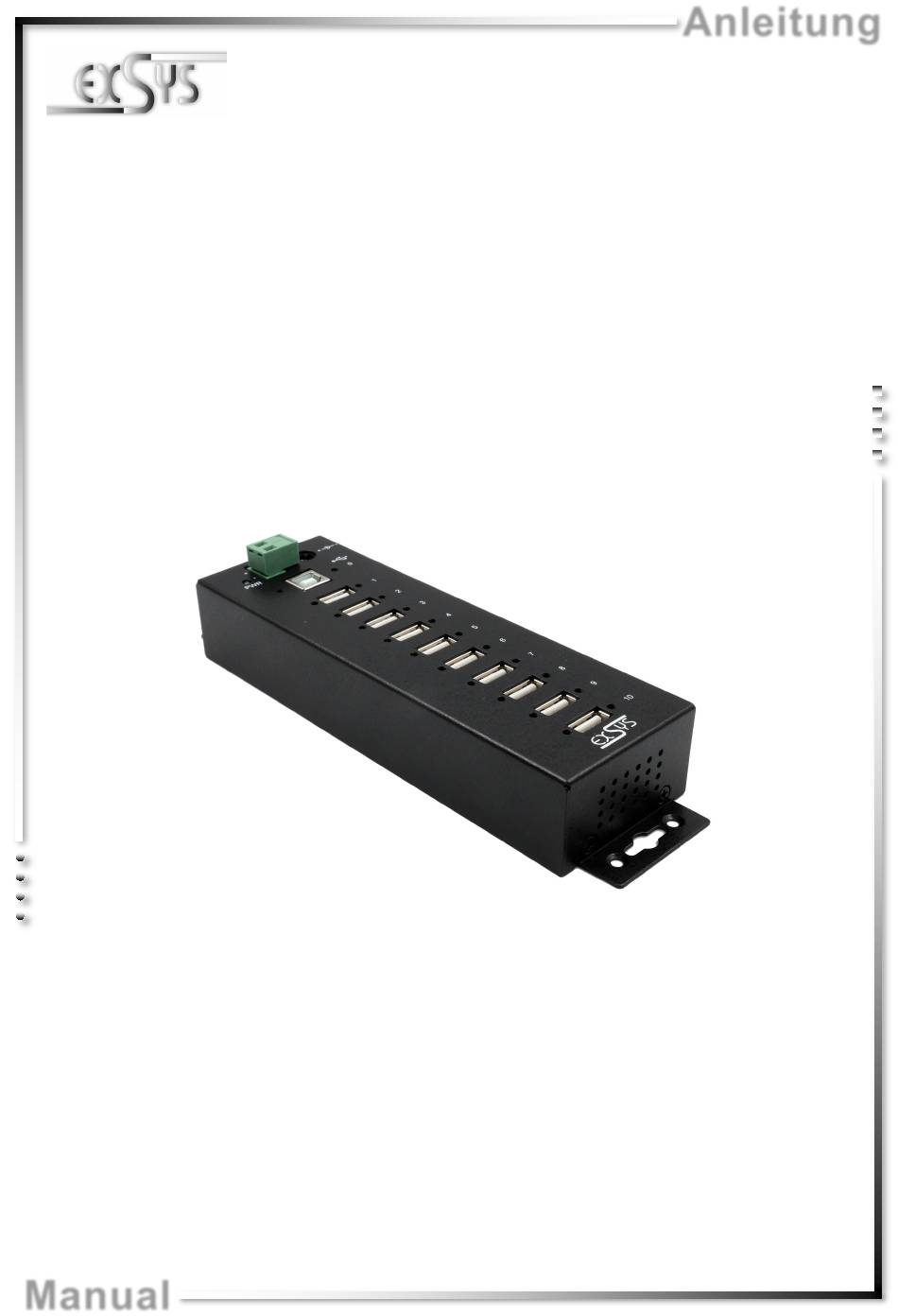

15KV ESD Überspannungsschutz für Tragschiene
Manual

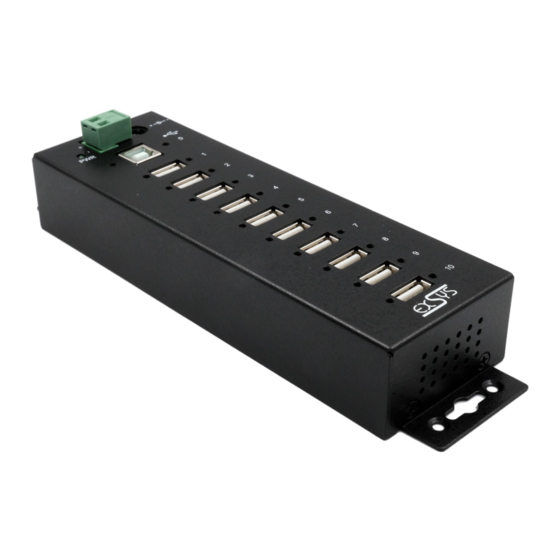

EX-1170HMVS
10-Port USB 2.0 Metall HUB mit
10-Port USB 2.0 Metal HUB with
15KV ESD Surge Protection for DIN-Rail
Anleitung
Germany:
Switzerland:
EXSYS Vertriebs GmbH
EXSYS Vertriebs GmbH
Industriestrasse 8
Dübendorfstrasse 17
61449 Steinbach
8602 Wangen
www.exsys.de
www.exsys.ch
Vers. 1.0 / 04.07.23
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Exsys EX-1170HMVS
Summary of Contents for Exsys EX-1170HMVS
- Page 1 10-Port USB 2.0 Metall HUB mit 15KV ESD Überspannungsschutz für Tragschiene 10-Port USB 2.0 Metal HUB with 15KV ESD Surge Protection for DIN-Rail Germany: Switzerland: EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH Industriestrasse 8 Dübendorfstrasse 17 61449 Steinbach 8602 Wangen www.exsys.de www.exsys.ch...
-
Page 2: Table Of Contents
Layout, Connections & Jumper Settings ··························································· 10-11 Layout ·······················································································································10 Connections ·········································································································· 10-11 Jumper Settings ··········································································································11 Hardware Installation ························································································· 12 Driver Installation ······························································································ 13 Cleaning ········································································································· 13 Technical Information ························································································ 14 Technical Drawing ···························································································· 14 © Copyright 2023 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
• Alle Anschlüsse sind verschraubbar • 15KV ESD Überspannungsschutz • Zertifiziert für 2. Lieferumfang Bevor Sie den EX-1170HMVS an Ihren PC anschließen, überprüfen Sie bitte zuerst den Inhalt der Lieferung: • EX-1170HMVS • USB 2.0 Kabel (verschraubbar) (EX-K1542V) • DIN-Rail Kit (EX-6095) •... -
Page 4: Aufbau, Anschlüsse & Jumper Einstellungen
Ihre Hardware zerstört werden!!! GND (Ground) +5V - 24V +5V bis +24V DC-Buchse: ACHTUNG!!! Nur zur Verwendung mit optional erhältlichem Netzteil! USB 2.0 A-Buchse: USB 2.0 A-Buchse Signal Signal DATA+ DATA- © Copyright 2023 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Jumper Einstellungen
Der EX-1170HMVS wird mit der Einstellung USB-Bus-Power ausgeliefert. Sie haben aber die Möglichkeit den EX-1170HMVS auf der Datenleitung zum PC sprich die USB B-Buchse stromlos zu machen. Dafür müssen Sie zu erst das Gehäuse mit den vier Schrauben auf den Seiten öff- nen. -
Page 6: Hardware Installation
Ihnen nur eine generelle Anleitung zum Einbau des EX-1170HMVS geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsanleitung Ihres Computersystems. 1. Installieren Sie den EX-1170HMVS an die Wand oder mit dem mitgelieferten DIN-Rail Kit auf einer Tragschiene. -
Page 7: Treiber Installation
EX-1170HMVS Deutsch 5. Treiber Installation Alle Betriebssysteme Nach Abschluss der Hardwareinstallation erkennt das Betriebssystem den EX-1170HMVS auto- matisch und installiert diesen. ÜBERPRÜFEN DES INSTALLIERTEN TREIBER Öffnen Sie den >Geräte-Manager<. Jetzt müssten Sie unter „USB-Controller“ folgenden Eintrag sehen: Ist dieser oder ein ähnlicher Eintrag vorhanden, ist der USB Hub richtig installiert. -
Page 8: Technische Daten
0° bis 55° Celsius Lagertemperatur: -20° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +5 bis +24 Volt Abmessung: 198,00 x 55,00 x 39,98 mm Gewicht: 607g 8. Technische Zeichnung © Copyright 2023 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 9: Description
All ports are Screw Lock • 15KV ESD Surge Protection • Certificate for 2. Extent of Delivery Before you connect the EX-1170HMVS to your PC, you should first check the contents of the deliv- ery: • EX-1170HMVS • USB 2.0 Cable (screw lock) (EX-K1542V) •... -
Page 10: Layout, Connections & Jumper Settings
Hardware!!! GND (Ground) +5V - 24V +5V to +24V DC-Connector: ATTENTION!!! Only for use with optionally available power supply! USB 2.0 A-Port: USB 2.0 A-Port Signal Signal DATA+ DATA- © Copyright 2023 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 11: Jumper Settings
DATA+ DATA- 3.3 Jumper Einstellungen The EX-1170HMVS will be delivered with the setting USB-Bus-Power. But you have the possibil- ity to cut the power at the data line. For this you open the case with the four screws on both sides. -
Page 12: Hardware Installation
Holes for Wall Installation 2. Connect the USB 2.0 cable with the USB 2.0 Upstream B-Port at the EX-1170HMVS. 3. Connect the optional power supply to the DC-Connector or to the Terminal Block at the Hub. 4. Now connect the other end from the USB 2.0 cable (A-Plug) to the USB A-Port at your PC. -
Page 13: Driver Installation
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In the area of the connectors please make sure that no fibres from the cloth remain in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2023 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 14: Technical Information
32° to 131°Fahrenheit Storage Temperature: -40° to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +5 to +24 Volt Size: 198,00 x 55,00 x 39,98 mm Weight: 607g 8. Technical Drawing © Copyright 2023 by EXSYS Vertriebs GmbH. All Rights Reserved...
