Summary of Contents for Omega DP301AN

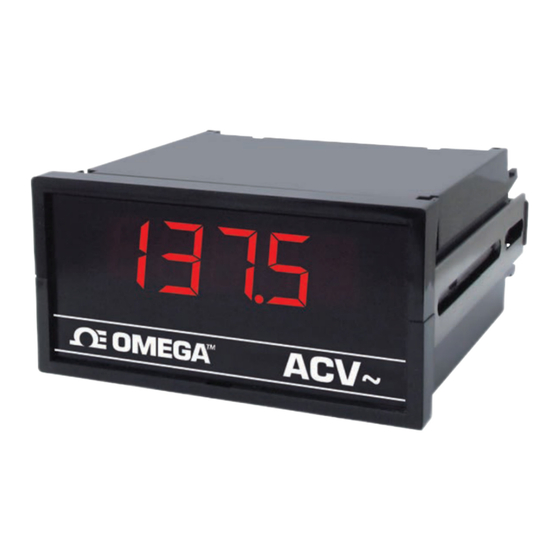

- Page 1 User’s Guide Shop online at omega.com e-mail: info@omega.com For latest product manuals: www.omegamanual.info DP301AN DC VOLTMETER DP301AN-AC VOLTMETER...
- Page 2 Fax: (203) 359-7700 For Other Locations Visit omega.com/worldwide The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY INSTRUCTIONS ..................iii 1.0 GENERAL INFORMATION ................1 2.0 SPECIFICATIONS ..................... 1 2.1 Analog Input ....................1 2.2 Accuracy at 25°C ..................2 2.3 Noise Rejection ..................2 2.4 Analog-To-Digital Conversion..............2 2.5 3-Wire Ratio Reference ................2 2.6 Display ...................... - Page 4 ILLUSTRATIONS Figure 3-1 DIN Case Dimensions ................4 Figure 3-2 Exploded View ..................5 Figure 4-1 Main Board ..................... 6 Figure 4-2 Rear Terminal ..................6 Figure 5-1 Display Board Jumper Locations ............10 Figure 5-2 Main Board Jumper Locations ............. 11 Figure 5-3 Solder-Switch Locations ...............
- Page 5 SAFETY CONSIDERATIONS This device is marked with the international Caution symbol. It is important to read this manual before installing or commissioning this device as it contains important information relating to Safety and EMC (Electromagnetic Compatibility). Unpacking & Inspection Unpack the instrument and inspect for obvious shipping damage. Do not attempt to operate the unit if damage is found.
-
Page 6: General Information
Model DP301AN is pin compatible with newer voltmeters DP302, DP3001 and DP3002 series. Models DP301AN has a resolution of 1 part in ±1999 counts, or 0.05% of full scale. By using an external dc voltage reference, any of these ranges can be configured for 3 wire ratio measurement with readout from 0 to 1.999. -
Page 7: Accuracy At 25°C
ACCURACY AT 25°C Warmup to rated accuracy 10 minutes Model "AN" Maximum error ±0.05% or reading °1 count Span to tempco ±0.01% of reading/°C Step response 1 second Model "AN-AC" (10% to 100% of full-scale range) Maximum error (actual reading) 20.0 to 199.9 V range ±0.003%FS (R-110 V) / V ±1 counts 20.0 to 650. -
Page 8: Digital Signals
DIGITAL SIGNALS (Referenced to SIG GND) Logical 0 0 to +1.4 V Logical 1 +3.7 V to +5.0 V Display HOLD 1 = latched reading LAMP TEST 1 = display of -1888 Output voltage +4.7 V dc ±5% at 10 mA max -4.6 V dc ±5% at 10 mA max POWER AC input voltage... -
Page 9: Mechanical Assembly And Installation
MECHANICAL ASSEMBLY AND INSTALLATION PANEL MOUNTING Figure 3-1 DIN Case Dimensions 1. Remove the main board edge connector (J1) if installed. 2. Use a #8 Phillips-head screwdriver to loosen the two screws on the rear of the case until you can rotate the two clamp rings. Loosen the screws enough to allow for the panel thickness. -
Page 10: Figure 3-2 Exploded View
PANEL MOUNTING (continued) WARNING: High voltage is present when using model "AN-AC" with the 650 V AC option. Figure 3-2 Exploded View... -
Page 11: Power And Signal
POWER AND SIGNAL CHANGING OPERATING VOLTAGE Remove power lines from the meter, then remove the meter from the case. OPERATING VOLTAGE JUMPER INSTALLATION Remove W8 and W9 on the transformer 230 V ac ±15% (Option C1) Install W4 on the printed circuit board Install W8 and W9 on the transformer 115 V ac ±15% (Standard) Remove W4 on the printed circuit board... - Page 12 Refer to Figure 4-2. MODEL "AN" Connector Power Signal L (High) High N (Low) (Ground) L (High) High N (Low) (Ground) Signal GRND + DC High - DC (return) No connection High + DC - DC (return) Signal GRND Model "AN-AC" Connector Power Signal...
-
Page 13: Connector Pin Assignments
CONNECTOR PIN ASSIGNMENTS Model "AN-AC" J1 Connector (D1 Option) Spare Spare Spare 199.9 DP 199.9 DP 19.99 DP 19.99 DP 1.999 DP 1.999 DP LAMP TEST LAMP TEST +4.7 V +4.7 V -4.6 V -EXC +REF +EXC HOLD HOLD ANA GND Spare SIG LO Spare... -
Page 14: Digital Test Signals
Connector TB1 (D4 Option) AC Power Versions DC Power Versions AC HI L AC LO N +DC PWR AC GND -DC PWR RETURN ANA GND* ANA GND* SIG LO SIG LO SIG HI SIG HI * No connection with "AN-AC" DIGITAL TEST SIGNALS Display HOLD instructs the meter to maintain a display of the last reading. -
Page 15: Configuration
CONFIGURATION Select the desired configurations from the following charts. Install jumpers and open/close solder switches as indicated. Remove all push-on jumpers not used. DECIMAL POINT SELECTION Figure 5-1 Display Board Jumper Locations Alternate Decimal Point Configuration Using Decimal Point Main Board Connector J1 1.999 Connect K/9 to 6 19.99... -
Page 16: Voltage Range Selection
VOLTAGE RANGE SELECTION Figure 5-2 Main Board Jumper Locations Solder Switches* Push-on Jumpers Remove Jumper Input Configuration Open Close Wire 200 mV dc 2 V dc 20 V dc B, C 200 V dc B, D 200 V ac G, K, J E-17 to TB1B-4 650 V ac H, K, J... -
Page 17: Blanking Least-Significant Digit
BLANKING THE LEAST-SIGNIFICANT DIGIT To blank the least-significant digit, open solder switch 'A' on the circuit side of the display board. Figure 5-3 Solder Switch Locations... -
Page 18: Calibration
CALIBRATION DC VOLTAGE RANGES 1. Remove the front lens. Insert a blade screwdriver under the notch at the bottom of the lens and gently pry it off. 2. Short the input signal connections and verify that the display reads zero. 3. -
Page 19: Drawings
DRAWINGS Figure 7-1 Assembly Diagram... - Page 20 NOTES...
