For complete product manual:
www.omega.com/manuals/manualpdf/M5460.pdf
omega.com
Omega Engineering, Inc:
800 Connecticut Ave. Suite 5N01, Norwalk, CT 06854, USA
Toll-Free: 1-800-826-6342 (USA & Canada only)
C ustomer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: (203) 359-1660
e-mail: info@omega.com
Omega Engineering,
Limited:
1 Omega Drive, Northbank,
Irlam Manchester M44 5BD
United Kingdom

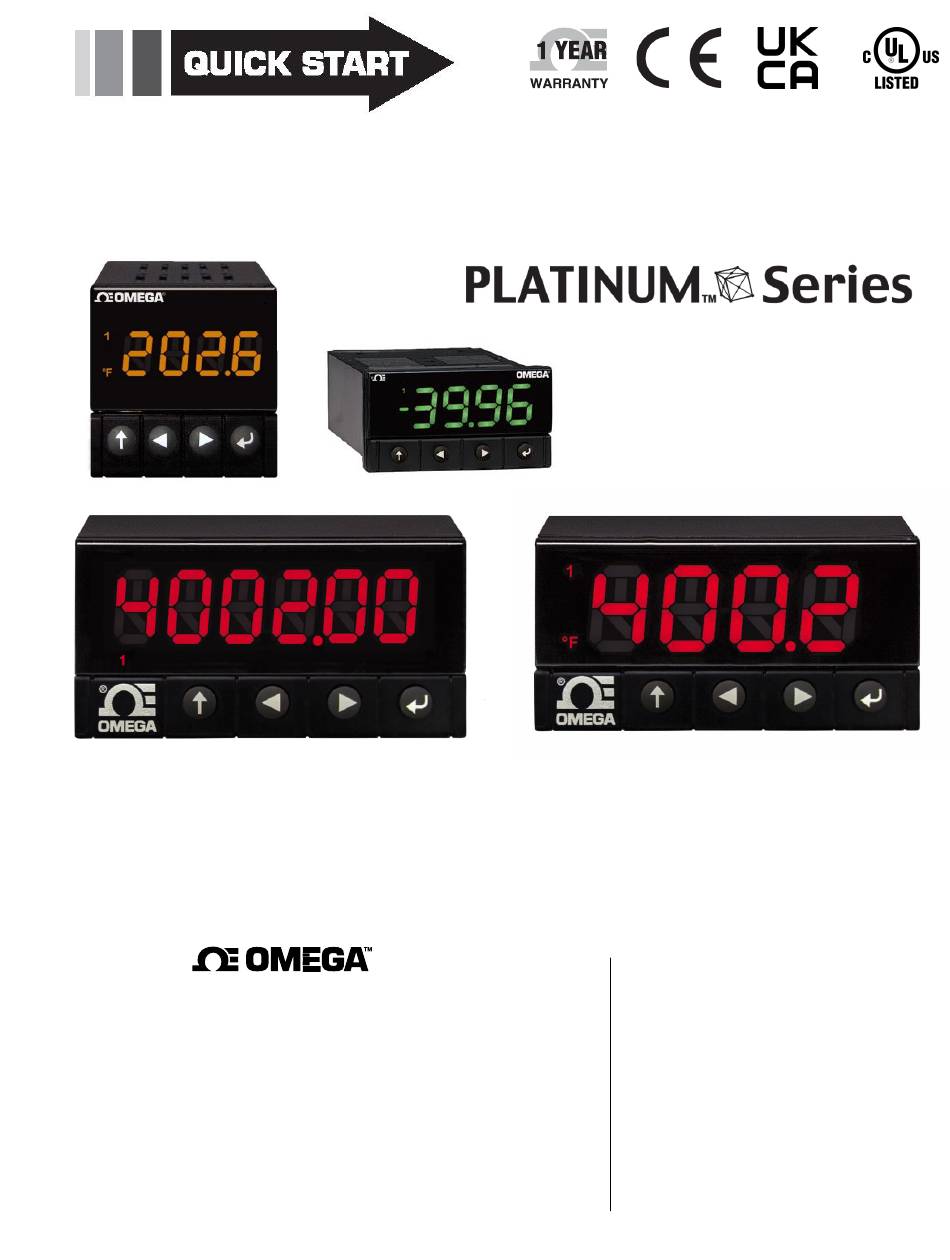

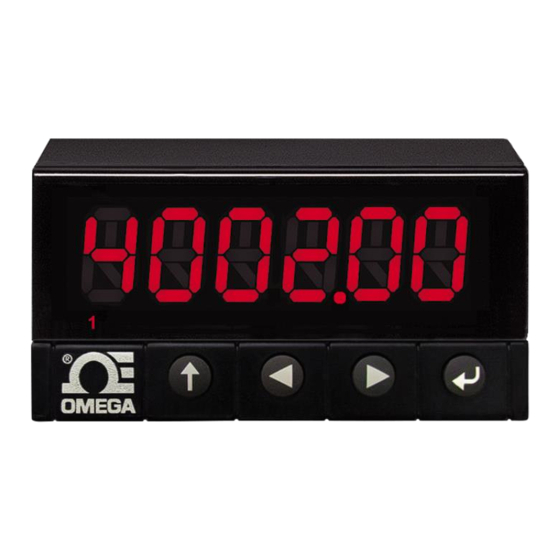

DP32Pt, DP16Pt, DP8Pt, DP8EPt
Temperature, Process and Strain Meters
info@omega.com
Fax: (203) 359-7700
Omega Engineering,
GmbH:
Daimlerstrasse 26 75392
Deckenpfronn Germany
TM
The information contained in this document is believed to
be correct, but OMEGA accepts no liability for any errors it
contains, and reserves the right to alter specifications
without notice.
OMEGA's policy is to make running changes, not model
changes, whenever an improvement is possible. This
affords our customers the latest in technology and
engineering. OMEGA is a registered trademark of OMEGA
ENGINEERING, INC. © Copyright 2016 OMEGA
ENGINEERING, INC. All rights reserved. This document
may not be copied, photocopied, reproduced, translated, or
reduced to any electronic medium or machine-readable
form, in whole or in part, without the prior written consent of
OMEGA ENGINEERING, INC.
MQS5460/0716
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Omega Platinum DP32Pt
Summary of Contents for Omega Platinum DP32Pt
- Page 1 DP32Pt, DP16Pt, DP8Pt, DP8EPt Temperature, Process and Strain Meters The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it omega.com info@omega.com contains, and reserves the right to alter specifications Omega Engineering, Inc: without notice.
- Page 2 Series Meters Quick Start Guide provides only a brief overview of each controller’s functions and quick configurations to get started. Please refer to the PLATINUM Series Meters User’s Guide PDF at Omega.com/manuals for complete information and specifications for each end device. Description The PLATINUM Series meter offers unparalleled flexibility in process measurement.
-
Page 3: Safety Considerations
Failure to follow all instructions and warnings is at your own risk and may result in property damage, bodily injury and/or death. Omega Engineering is not responsible for any damages or loss arising or resulting from any failure to follow any and all instructions or observe any... -
Page 4: Wiring Instructions
PLATINUM Series Meters Quick Start Guide Wiring Instructions 3. Wiring Instructions Back Panel Connections Ethernet Connector if EIP Option Installed Ethernet Communications Status LEDs if EIP Option Installed USB Connector 8-Pin Power / Outputs Connector 10-Pin Input Connector Figure 1 – DP8Pt and DP8EPt Models: Back Panel Connections (No Isolated Output Expansion Board Installed) 8-Pin Power / Outputs Connector 10-Pin Input Connector... -
Page 5: Connecting Power
PLATINUM Series Meters Quick Start Guide Wiring Instructions Connecting Power Connect the main power connections to pins 7 and 8 of the 8-pin power / output connector as shown in Figure 3. 110 - 300 Vdc 110 ~ 300 Vdc Use Copper Conductors only (rated for 75 C min.) for Power Connections... -
Page 6: Connecting Inputs
PLATINUM Series Meters Quick Start Guide Wiring Instructions Connecting Inputs The 10-pin input connector assignments are summarized in Table 1. Table 2 summarizes the universal input pin assignments for different sensor inputs. All sensor selections are firmware-controlled and no jumper settings are required when switching from one type of sensor to another. Figure 4 provides more detail for connecting RTD sensors. - Page 7 PLATINUM Series Meters Quick Start Guide Wiring Instructions RTD (100 Ω) 4-WIRE RTD (100 Ω) 3-WIRE RTD (100 Ω) 2-WIRE (requires pin 1 to be jumped to pin 4) Figure 4 – RTD Wiring Diagram 0–24 mA Internal Excitation External Excitation Internal Figure 5 –...
-
Page 8: Connecting Outputs On Units With Alarm Relays
PLATINUM Series Meters Quick Start Guide Wiring Instructions Connecting Outputs on Units with Alarm Relays The PLATINUM Series Meters can be configured with two alarm only Single Pole Double Throw Mechanical Relays. This is the “-330” option and these SPDT relays have snubbers built in but only on the normally open contact side. -
Page 9: Menu Structure
PLATINUM Series Meters Quick Start Guide PLATINUMTM Series Navigation 4. PLATINUM Series Navigation Alarm Annunciators Process Value Negative Sign Temperature Units Program Buttons Setpoint Value Process Value Temperature Units Alarm Annunciators Program Buttons Figure 7 – PLATINUMTM Series Displays (DP8Pt and DP8EPt Shown) Description of Button Actions The UP button moves up a level in the menu structure. -
Page 10: Level 1 Menu
PLATINUM Series Meters Quick Start Guide PLATINUMTM Series Navigation Level 1 Menu Initialization Mode: These settings are rarely changed after initial setup. They include INIt transducer types, calibration, etc. These settings can be password-protected. Programming Mode: These settings are frequently changed. They include Setpoints, PRoG Control Modes, Alarms, etc. -
Page 11: Complete Menu Structure
PLATINUM Series Meters Quick Start Guide Complete Menu Structure 5. Complete Menu Structure Initialization Mode Menu (INIt) The following table maps the Initialization Mode (INIt) navigation: Level Level Level Level Level Level Level Notes INPt t.C. Type K thermocouple Type J thermocouple Type T thermocouple Type E thermocouple Type N thermocouple... - Page 12 PLATINUM Series Meters Quick Start Guide Complete Menu Structure Level Level Level Level Level Level Level Notes RtLO Ratiometric between AIN+ and AIN- +-0.1 Process input range: -0.1 to +0.1 V The +- 0.05 input supports dIFF and RtIO tYPE Note: +-.05 tYPE...
- Page 13 Retransmits received commands SEPR _CR_ Carriage Return separator in CoNt SPCE Space separator in CoNt Mode M.bUS Standard Modbus protocol ASCI Omega ASCII protocol AddR ____ USB requires Address EtHN PRot Ethernet port configuration AddR ____ Ethernet “Telnet” requires Address...
- Page 14 PLATINUM Series Meters Quick Start Guide Complete Menu Structure Level Level Level Level Level Level Level Notes 1200 1,200 Bd 57.6 57,600 Bd 115.2 115,200 Bd PRty Odd parity check used EVEN Even parity check used NoNE No parity bit is used Parity bit is fixed as a zero dAtA 8bIt...
- Page 15 PLATINUM Series Meters Quick Start Guide Complete Menu Structure Programming Mode Menu (PRoG) The following table maps the Programming Mode (PRoG) navigation: Level Level Level Level Level Notes ____ Process goal for PID, default goal for oN.oF ASbo Setpoint 2 value can track SP1, SP2 is an absolute value dEVI SP2 is a deviation value ALM.1...
- Page 16 PLATINUM Series Meters Quick Start Guide Complete Menu Structure Level Level Level Level Level Notes GAIN ____ Manual Proportional Band setting ____ Manual Integral Factor setting ____ Manual Derivative Factor setting ____ Low clamping limit for Pulse, Analog Outputs ____ High clamping limit for Pulse, Analog Outputs AdPt ENbL...
-
Page 17: Operating Mode Menu (Oper)
PLATINUM Series Meters Quick Start Guide Complete Menu Structure Operating Mode Menu (oPER) The following table maps the Operating Mode (oPER) navigation: Level Level Level Notes Normal Run Mode, process value displayed, SP1 in optional secondary display ____ Shortcut to change Setpoint 1, current Setpoint 1 value in main display ____ Shortcut to change Setpoint 2, current Setpoint 2 value in main display MANL... -
Page 18: Approvals Information
PLATINUM Series Meters Quick Start Guide Approvals Information 6. Approvals Information Electrical Safety: 2014/35/EU (Low Voltage Directive) and Electrical Equipment (Safety) Regulations 2016 Safety requirements for electrical equipment for measurement, control, and laboratory Double Insulation; Pollution Degree 2 Dielectric withstand Test per 1 min ... - Page 19 Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
- Page 20 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA…Of Course! Shop online at omega.com TEMPERATURE M U Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies M U Wire: Thermocouple, RTD & Thermistor M U Calibrators & Ice Point References M U Recorders, Controllers &...
