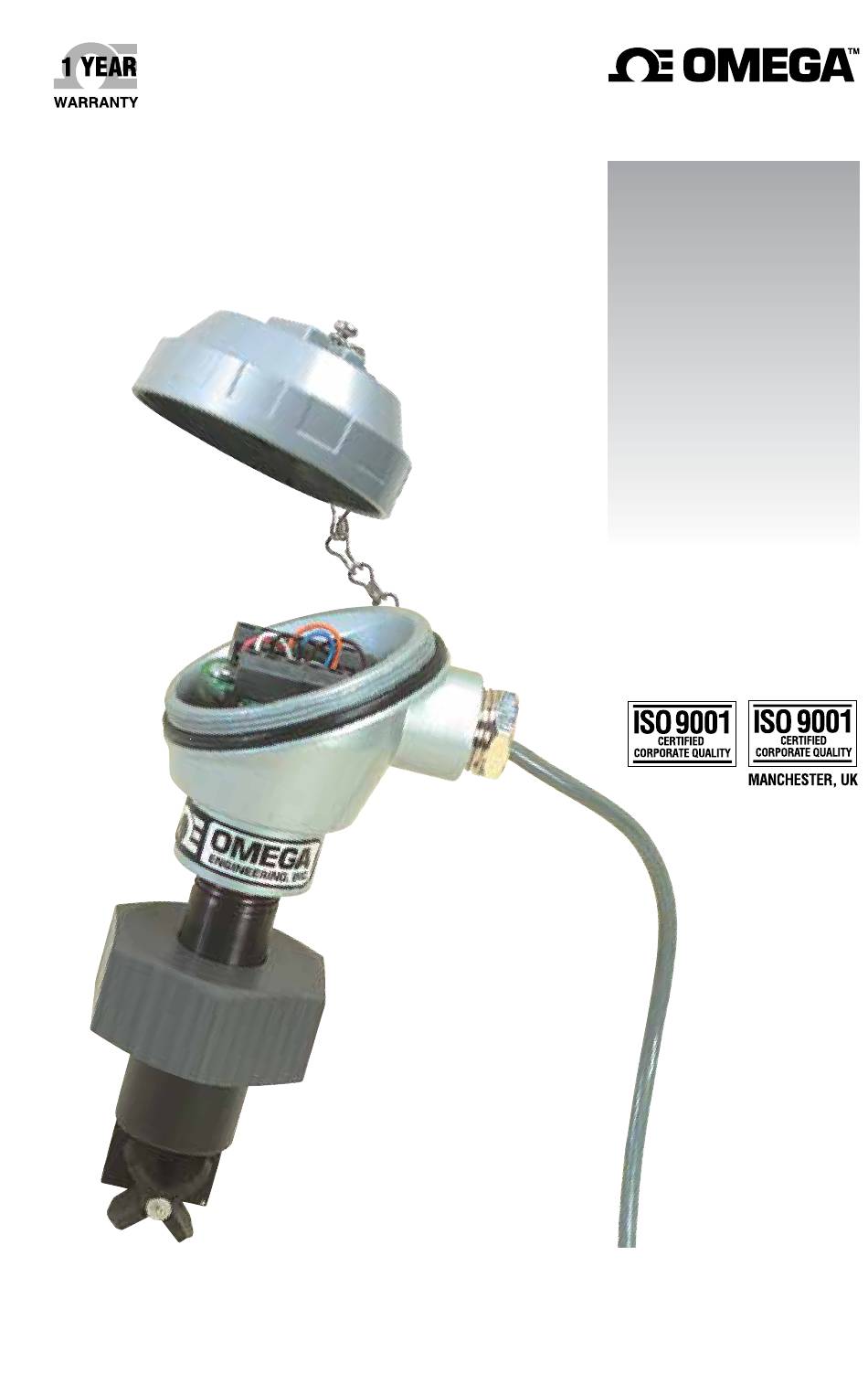

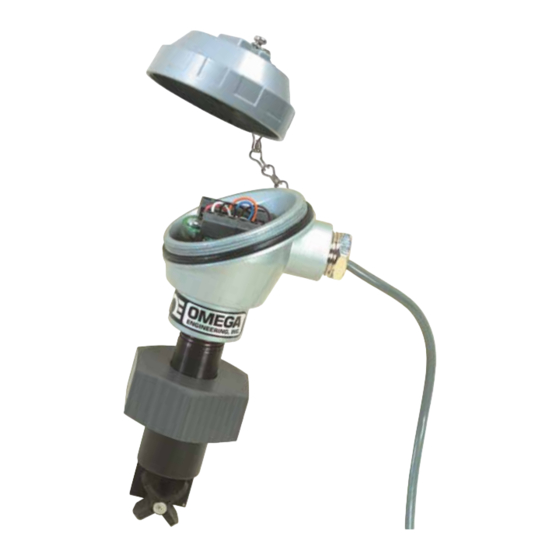

- Page 1 User’s Guide Shop online at omega.com e-mail: info@omega.com For latest product manuals: www.omegamanual.info NORWALK, CT FP7002/FP7002A Flow/Temperature Transmitter...
- Page 2 Fax: (203) 359-7700 e-mail: info@omega.com For Other Locations Visit omega.com/worldwide The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
-
Page 3: Table Of Contents
FP7002/FP7002A Flow/Temperature Transmitter Table of Contents FP7002/FP7002A FLOW/TEMPERATURE TRANSMITTER SECTION PAGE Section 1 - General Description ......1 Section 2 - Installation . - Page 4 FP7002/FP7002A Flow/Temperature Transmitter Introduction/Safety Your FP7002/FP7002A has been designed for ease of use and flexibility. It is important that you read this user’s manual completely and follow all safety precautions before operating your unit. Precautions 1. FOLLOW ALL SAFETY PRECAUTIONS AND OPERATING INSTRUCTIONS OUTLINED IN THIS MANUAL.
-
Page 5: Fp7002/Fp7002A Flow/Temperature Transmitter
IS NOT TO BE USED FOR FLAMMABLE OR HAZARDOUS LIQUIDS, NOR CAN IT BE USED IN HAZARDOUS AREAS. The FP7002 is intended for use with water and other low viscosity liquids ONLY; it can NOT be used with oils and other viscous... -
Page 6: Flowmeter Installation
If the flowsensor is repeatedly exposed to process water and then the line is allowed to dry, these dissolved minerals will deposit onto the FP7002 and will inhibit the low flowrate operation of the sensor. If this occurs, cleaning of the sensor is recommended. - Page 7 FP7002/FP7002A Flow/Temperature Transmitter FLOW Figure 2-1. Horizontal Mounting Position FLOW Figure 2-2. Vertical Mounting Position...
- Page 8 FP7002/FP7002A Flow/Temperature Transmitter The FP7002 should not be mounted at the bottom of the pipe (the 6 o’clock position) because this is where sediment in the liquid will tend to accumulate. The best mounting location is at or near the 12 o’clock position, so long as bubbles are not present in the liquid.
-
Page 9: Electrical Connections
(galvanized pipe has been treated to resist rust). In situations where rust can not be avoided, it is recommended to install a fine magnetic filter at least 50 pipe diameters upstream from the FP7002 and to periodically shut down the line and remove the sensor from the installation fitting for cleaning. -
Page 10: Section 3 - Maintenance
FP7002/FP7002A Flow/Temperature Transmitter Section 3 - Maintenance Except for intermittent removal of the sensor from the flow line for cleaning, there is no routine maintenance for the FP7002. Section 4 - Calibration 4.1 Flow Calibration Equipment Required: 12-18 Vdc Regulated Power Supply... -
Page 11: Temperature Calibration
Section 4 - Calibration Cont. 4.2 Temperature Calibration Equipment Required: 12-18 Vdc Regulated Power Supply Type-K Thermocouple Probe (such as OMEGA Model: KTSS-HH) Multimeter (such as OMEGA Model: HHM290) Small potentiometer adjustment tool Calibration Procedure: 1. Unscrew and remove the protection head cover. -
Page 12: Calibration Setup
FP7002/FP7002A Flow/Temperature Transmitter Section - Calibration Cont. 4.3 Calibration Setup 4.3.1 Flow Calibration Setup 4.00 mA 18 Vdc MULTIMETER – 0.00 Hz FREQUENCY GENERATOR – REMOVE RESISTOR AND WHITE WIRE FOR CALIBRATION Figure 4-1. Flow Calibration Setup 4.3.2 Temperature Calibration Setup –... - Page 13 FP7020 FP7020-GI 2” 11-205 FP7025 FP7025-GI ⁄ ” 15-285 FP7030 FP7030-GI 3” 25-460 Other fitting materials may be available. Consult the Flow Department at OMEGA. CALIBRATION K-FACTORS PART NUMBER K-FACTOR ART NUMBER K-FACTOR FP7007 108.78 FP7007-GI 159.85 FP7010 70.53 FP7010-GI 82.94...
-
Page 14: Section 5 - Specifications
Transmitter Housing: WETTED MATERIALS Polypropylene body (PVDF optional), Sensor Body: PVDF paddle, Viton O-ring, 316SS shaft. Model FP7002A includes brass locking nut. Model FP7002 includes PVC locking nut. MAX, RECOMMENDED 5 centipoise FLUID VISCOSITY: Do not exceed the maximum ratings of FLUID TEMPERATURE/ your piping. - Page 15 OMEGA be liable for consequential, incidental or special damages. CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity;...
- Page 16 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA…Of Course! Shop online at omega.com TEMPERATURE M U Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies M U Wire: Thermocouple, RTD & Thermistor M U Calibrators & Ice Point References M U Recorders, Controllers &...
