Omega OS102E Quick Start

WARRANTY/DISCLAIMER
OMEGA ENGINEERING, INC. warrants this unit to be free of defects
in materials and workmanship for a period of 13 months from
date of purchase. OMEGA's WARRANTY adds an additional one (1)
month grace period to the normal one (1) year product warranty
to cover handling and shipping time. This ensures that OMEGA's
customers receive maximum coverage on each product.
If the unit malfunctions, it must be returned to the factory for evalua-
tion. OMEGA's Customer Service Department will issue an Authorized
Return (AR) number immediately upon phone or written request.
Upon examination by OMEGA, if the unit is found to be defective, it
will be repaired or replaced at no charge. OMEGA's WARRANTY does
not apply to defects resulting from any action of the purchaser, includ-
ing but not limited to mishandling, improper interfacing, operation
outside of design limits, improper repair, or unauthorized modifica-
tion. This WARRANTY is VOID if the unit shows evidence of having
been tampered with or shows evidence of having been damaged as a
result of excessive corrosion; or current, heat, moisture or vibration;
improper specification; misapplication; misuse or other operating
conditions outside of OMEGA's control. Components in which wear
is not warranted, include but are not limited to contact points, fuses,
and triacs.
OMEGA is pleased to offer suggestions on the use of its vari-
ous products. However, OMEGA neither assumes responsibil-
ity for any omissions or errors nor assumes liability for any
damages that result from the use if its products in accordance
with information provided by OMEGA, either verbal or writ-
ten. OMEGA warrants only that the parts manufactured by
the company will be as specified and free of defects. OMEGA
MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF
ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT
THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING
ANY WARRANTY OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED.
LIMITATION OF LIABILITY: The remedies of purchaser set
forth herein are exclusive, and the total liability of OMEGA
with respect to this order, whether based on contract, warran-
ty, negligence, indemnification, strict liability or otherwise,
shall not exceed the purchase price of the component upon
which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.
CONDITIONS: Equipment sold by OMEGA is not intended to be used,
nor shall it be used: (1) as a "Basic Component" under 10 CFR 21 (NRC),
used in or with any nuclear installation or activity; or (2) in medical appli-
cations or used on humans. Should any Product(s) be used in or with
any nuclear installation or activity, medical application, used on humans,
or misused in any way, OMEGA assumes no responsibility as set forth
in our basic WARRANTY/DISCLAIMER language, and, additionally,
purchaser will indemnify OMEGA and hold OMEGA harmless from any
liability or damage whatsoever arising out of the use of the Product(s)
in such a manner.
RETURN REQUESTS/INQUIRIES
Direct all warranty and repair requests/inquiries to the OMEGA
Customer Service Department. BEFORE RETURNING ANY
PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN
AUTHORIZED RETURN (AR) NUMBER FROM OMEGA'S CUSTOMER
SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING
DELAYS). The assigned AR number should then be marked on the
outside of the return package and on any correspondence.
FOR WARRANTY RETURNS,
FOR NON-WARRANTY REPAIRS,
please have the following consult OMEGA for current repair
information available BEFORE
charges. Have the following
contacting OMEGA: information available BEFORE
1. Purchase Order number contacting OMEGA:
under which the product 1. Purchase Order number to cover
was PURCHASED, the COST of the repair or
2. Model and serial number of the
calibration,
product under warranty, and 2. Model and serial number of the
3. Repair instructions and/or
product, and
specific problems relative 3. Repair instructions and/or specific
to the product. problems relative to the product.
OMEGA's policy is to make running changes, not model changes,
whenever an improvement is possible. This affords our customers
the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2014 OMEGA ENGINEERING, INC. All rights reserved.
This document may not be copied, photocopied, reproduced,
translated, or reduced to any electronic medium or machine-readable
form, in whole or in part, without the prior written consent of OMEGA
ENGINEERING, INC.
MQS357/0314
5
Software Installation
Insert the OS100-Soft CD into your computer's CD-Rom
drive. The installation program should start up
automatically. If it does not start automatically locate
and run the Setup.exe file on the CD.
NOTE:
Microsoft .NET framework 2.0 is a pre-requisite for
this application and will be automatically installed
from the CD if missing. This will require you to accept
the license agreement prior to proceeding.
Navigate through the step-by-step screens until you
have successfully installed the OS100 software.
NOTE:
The default directory for the executable is: \Programs\
OS100-Soft\OS100-Soft.exe
Please review the software online guide.
RS232 Communication
GND
Tx
Rx
1 5
Rx
PC SERIAL PORT
Tx

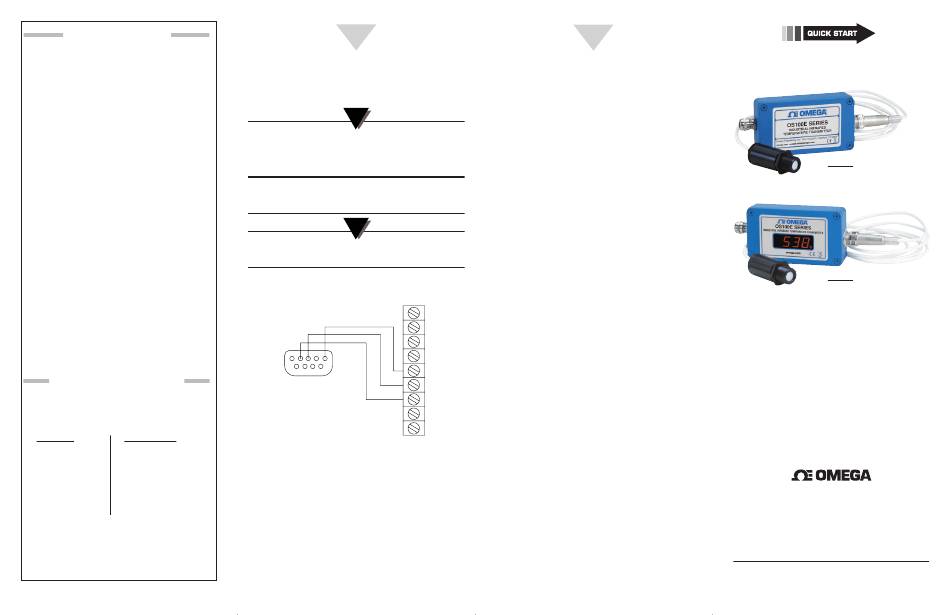

PC Interface Connection
All commands sent to the OS100E series must be
terminated by a carriage return or carriage return and
linefeed, and is shown in this document as "CR" and
"LF". Any parameters shown in square brackets "[ ]" are
optional. Parameters are separated from commands and
from each other by a space " ". Spaces within commands
are shown in this document as "SP".
ARTWORK/PRODUCT ART/
DWGS/START HERE ARROW
6
RS232 Commands
C Command:
Description: Transmit target temperature in Celsius
Syntax: C CR [LF]
F Command:
Description: Transmit target temperature in Fahrenheit
Syntax: F CR [LF]
ALARM Command:
Description: Transmit alarm setpoint
Syntax: ALARM CR [LF]
VERSION Command:
Description: Transmit model number, firmware version,
and output model.
Syntax: VERSION CR [LF]
AMODE Command:
Description: Set/Transmit alarm activation mode
rising/falling.
Syntax: AMODE [SP MODE] CR [LF]
(Optional) MODE: Specifies whether the alarm will
activate at the setpoint with rising temperature, or
falling temperature. The valid range for this parameter
is 0 to 1. A value of 1 will cause the alarm to activate on
rising temperature, and 0 will cause activation on falling
1 temperature.
Examples:
2
Typing "AMODE" and pressing "Enter" does not
3
change the activation mode but it is reported.
Typing "AMODE 0" and pressing "Enter" changes the
4
activation mode to falling and is reported as such.
5
EMS Command:
6
Description: Transmit emissivity setting
7
Syntax: EMS CR [LF]
8
CABLE Command:
Description:
9
Syntax: CABLE [SP LENGTH] CR [LF]
(Optional) LENGTH: Specifies the total length (in feet)
of cable attached between the sensor head and the
transmitter box. The valid range for this parameter is
6 to 56. If this parameter is not specified, the length
currently set will be transmitted.
Examples:
Typing "CABLE" and then pressing "Enter" does not
change the current cable length compensation value but
is reported.
Typing "CABLE 200" and then pressing "Enter" changes
the current cable length compensation value to 56
because 200 is above the max length.
For complete product manual:
www.omega.com/manuals/manualpdf/M3572.pdf

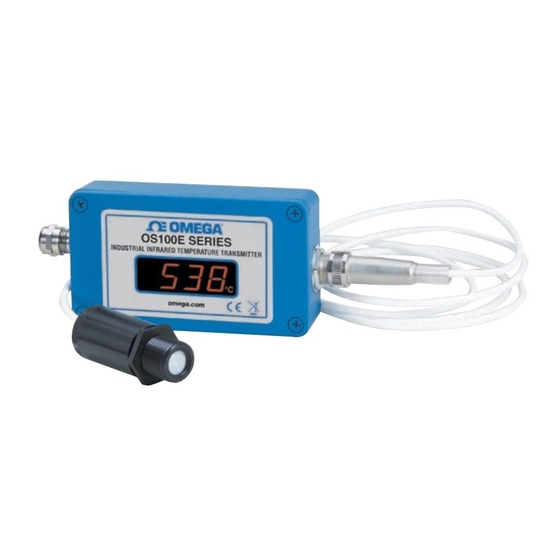

OS101E
OS102E
OS100 SERIES
Mini-Infrared Transmitters
®
