Fma1000 series air velocity/temperature transmitter and indicator

Advertisement

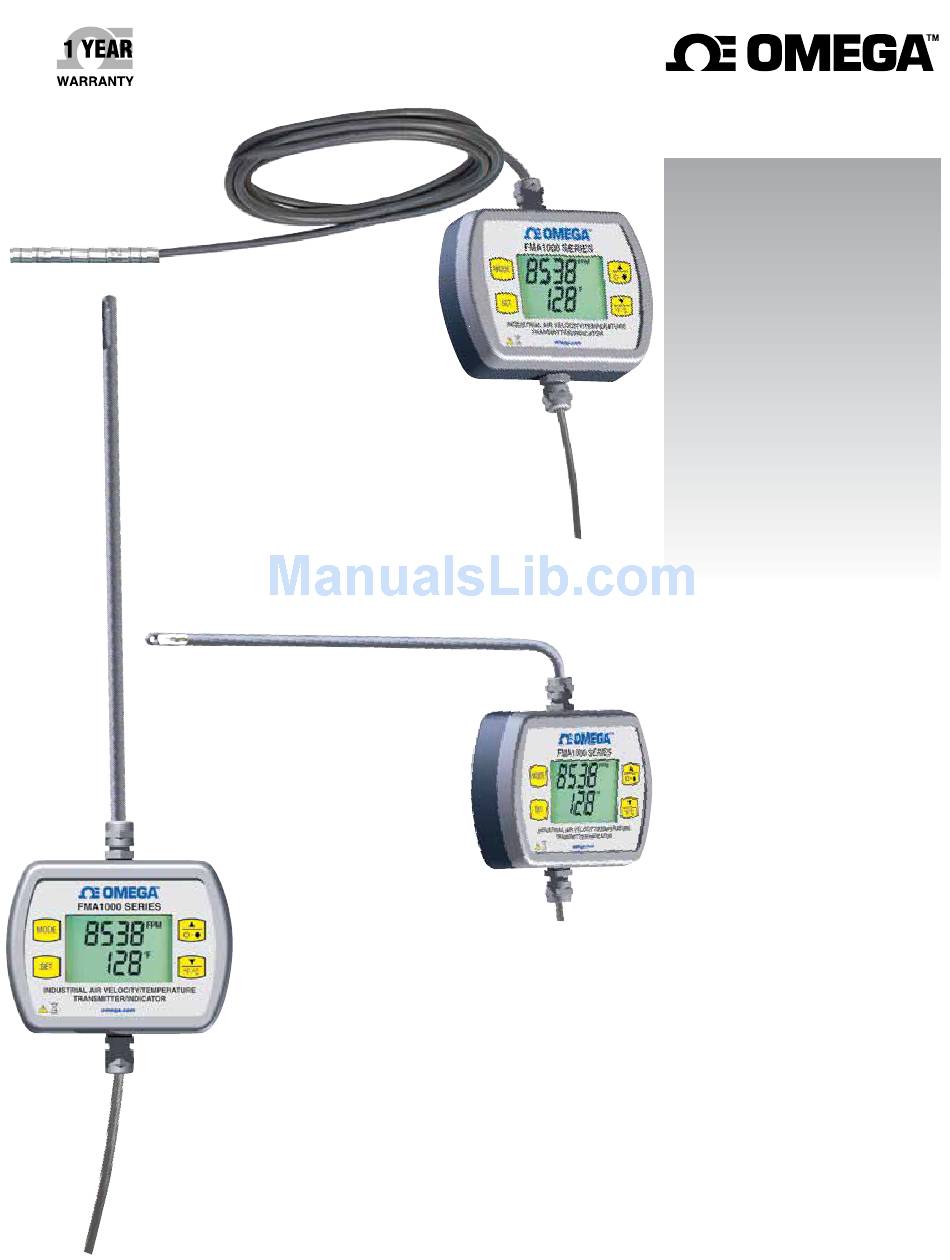

User's Guide
TM
WITH REMOTE
SENSOR PROBE
FMA100XR
Shop online at
omega.com
e-mail: info@omega.com
For latest product manuals:
www.omegamanual.info
BACK MOUNT
TOP MOUNT
FMA100XB
FMA100XA
FMA1000 SERIES
Air Velocity/Temperature
Transmitter and Indicator

Advertisement

Table of Contents
loading

Summary of Contents for Omega FMA1001A series

  • Page 1 User’s Guide WITH REMOTE SENSOR PROBE FMA100XR Shop online at omega.com e-mail: info@omega.com For latest product manuals: www.omegamanual.info BACK MOUNT TOP MOUNT FMA100XB FMA100XA FMA1000 SERIES Air Velocity/Temperature Transmitter and Indicator...
  • Page 2 Fax: (203) 359-7700 e-mail: info@omega.com For Other Locations Visit omega.com/worldwide The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
  • Page 3: Table Of Contents

    FMA1000 SERIES Air Velocity/Temperature Transmitter and Indicator Table of Contents Section Page Section 1 - Package Insection ................1-1 Included Items ....................1-1 Section 2 - Introduction ..................2-1 Introduction ....................2-1 Important Considerations Before Installation ..........2-2 Section 3 - Installation ..................3-1 Section 4 - Main Operations ................
  • Page 4 FMA1000 SERIES Air Velocity/Temperature Transmitter and Indicator List of Figures Figure Description Page FMA1000 Transmitter with Fixed Probe Mount and Right Angle Mount ..............3-3 FMA1000 Transmitter with a Remote Sensor Probe ....3-4 FMA1000 Transmitter General Dimensions ........ 3-5 FMA1000 Transmitter Wall Mounting Holes ......
  • Page 5: Section 1 - Package Insection

    Customer Service Department at 1-800-622-2378 or 203-359-1660. We can also be reached on the Internet at omega.com, e-mail: cservice@omega.com. When you receive the shipment, inspect the container and equipment for any signs of damage. Note any evidence of rough handling in transit.
  • Page 6 CAUTION & SAFETY INFORMATION If the equipment is used in a manner not specified in this manual, the protection provided by the equipment may be impaired. The installation category is one (I). The output terminals of this product are for use with equipments (Digital meters, chart recorders, etc.) which have no accessible live parts.
  • Page 7: Section 2 - Introduction

    Introduction Section 2 - Introduction The FMA1000 series industrial air velocity/temperature transmitter/indicator measures and displays air velocity mass flow and air temperature of clean air flows in ducts & pipes, while producing very little pressure drop in the flow stream. The FMA1000 series can be used in research & development labs, HVAC applications, and other manufacturing processes.
  • Page 8 Introduction The following table shows all the air velocity/temperature transmitter model numbers: Model No. Velocity Range FPM (m/s) Probe Type Temperature Measurment Range FMA1001A-* Fixed Probe -40 to 121°C (-40 to 250°F) FMA1001A-*-HT -40 to 171°C (-40 to 340°F) FMA1001B-* 0-1000 (0-5.1) Right Angle Probe -40 to 121°C (-40 to 250°F)
  • Page 9: Important Considerations Before Installation

    Introduction Important Considerations Before Installation NOTE: The FMA1000 air velocity transmitter is not explosion proof, nor is it Intrinsically safe. Do not use for flammable or hazardous gases, or in Hazardous areas. The FMA1000 series air velocity transmitter is intended for use with clean air or Nitrogen ONLY.
  • Page 10 4. One way of installing the sensor probe into a flow stream is to utilize a compression fitting such as Omega’s SSLK-14-14 stainless steel compression fitting with Teflon ferrule, which allows adjustment of the insertion depth of the probe.
  • Page 11: Section 3 - Installation

    Installation NOTES: 3-2...
  • Page 12: And Right Angle Mount

    Installation Recommended Straight Pipe T ypical Piping Remarks Length "A " Withou t With V anes Va ne s 15 D C losed Branch Elbow . Te e, 15 D Branch Pipe Elbow , 2 planes Long-radius 15 D bend s Elbow Long-radius bend s...
  • Page 13 Installation SCORE LINE FOR AIR VELOCITY/ FLOW ALIGNMENT TEMPERATURE SENSOR FIXED PROBE MOUNT AIR FLOW AIR FLOW TO BE FMA1000A SERIES PERPENDICULAR TO THE SENSOR WINDOW .250 DIA. 1/4" OD 304 STAINLESS STEEL TUBING WITH INCH MARKING 1.50 SENSOR WINDOW RIGHT ANGLE FIXED PROBE MOUNT FMA1000B SERIES...
  • Page 14: Fma1000 Transmitter With A Remote Sensor Probe

    Installation 15 FEET OF SHIELDED FLEXIBLE CABLE FMA1000 SERIES MODE °F-°C INDUSTRIAL AIR VELOCITY/TEMPERATURE TRANSMITTER/INDICATOR Figure 2. FMA1000 Transmitter with a Remote Sensor Probe 3-5...
  • Page 15: Fma1000 Transmitter General Dimensions

    Installation SENSOR PROBE COMPRESSION FITTING (SSLK-14-14) FMA1000 SERIES MODE BASE 3.50 COVER °F-°C INDUSTRIAL AIR VELOCITY/TEMPERATURE TRANSMITTER/INDICATOR 1.10 10 PIN MALE CONNECTOR (POWER/OUTPUT CONNECTION) 1.30 4.50 Figure 3. FMA1000 Transmitter General Dimensions 0.160 DIA. THRU 0.340 DIA. CNT'SINK 4 PLCS 2.400 3.440 Figure 4.
  • Page 16: Section 4 - Main Operations

    Main Operations Section 4 - Main Operations The FMA1000 transmitter has a built-in LCD backlit display and keypad. Using the display and the keypad, you can view the following parameters: • The air velocity & air temperature in real time (Main Display) •...
  • Page 17 Main Operations Table 2 shows the Keypad Functional flow chart. Figure 5 shows the display MODE MODE functional flow chart. MODE MODE °F-°C °F-°C Operation Press Press Press Press Real Time Go to Max °F °C or Turn on/off Mode vice versa LCD Light °F-°C...
  • Page 18: Functional Display Flow Chart

    Main Operations PRESS Km/h PRESS °F °F PRESS REAL TIME MODE (MPH) REAL TIME MODE (Km/h) PRESS PRESS °F-°C °F °F °C REAL TIME MODE (m/s) PRESS REAL TIME MODE REAL TIME MODE (°C) PRESS MODE MODE PRESS TO CHANGE ATMOSPHERIC °F PRESSURE...
  • Page 19: Section 5 - Pc Interface And Application

    PC Interface and Application The FMA1000 series comes with a Windows based user application. This application can run on Windows XP, Vista, and 7. It allows you to perform the following functions: • Monitor and display the air velocity and temperature in real time, including line graph of the two channels.
  • Page 20: Main Window

    PC Interface and Application • Display high & low alarm lines and values for velocity • Display response time in msec, volume air flow in CFM, cross sectional area in square inches, and the atmospheric pressure in mmHg. • High & low alarm LED indicators for the velocity channel. The LED indicator will turn red when in alarm condition.
  • Page 21: Typical Data File

    PC Interface and Application Figure 7. Typical Data File Figure 8 shows the Settings menu. You can set the following parameters: • COM port number on your PC. • Turn the audible indicator on/off. • Engineering units for air velocity and temperature •...
  • Page 22: Maintenance

    PC Interface and Application Figure 8. Settings Menu Maintenance Except for intermittent removal of the sensor from the line for cleaning, there is no routine maintenance for the FMA1000. If the sensor probe becomes coated with dust, blow the dust away with clean air. If the sensor probe is coated with sticky material, clean it with water or alcohol (Ethanol) using an artist’s brush.
  • Page 23: Section 6 - Specifications

    Specifications Section 6 - Specifications Range Air Velocity: 0-500, 0-1000, 0-2000, 0-5000, 0-10,000, 0-12000 FPM Air Temperature: -40 to 93ºC (-40 to 199ºF) -40 to 171°C (-40 to 340°F) for high temperature model Accuracy Air Velocity: 1.5% Full scale Air Temperature: 0.5% Full scale Display Resolution 1 FPM, 0.01 m/s, 0.01 MPH, 0.01 Km/h...
  • Page 24 Specifications Operating Ambient Temperature Sensor Probe: -40 to 93ºC (-40 to 199ºF) -40 to 171°C (-40 to 340°F) for high temperature model Transmitter: 0 to 50ºC (32 to 122ºF) Operating Relative Humidity: 0 to 95% RH without condensation Transmitter Case: ABS Plastic - IP65, NEMA 4X rated PC Interface: USB, 115200 baud rate, 8 bit data, No parity,...
  • Page 25 Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
