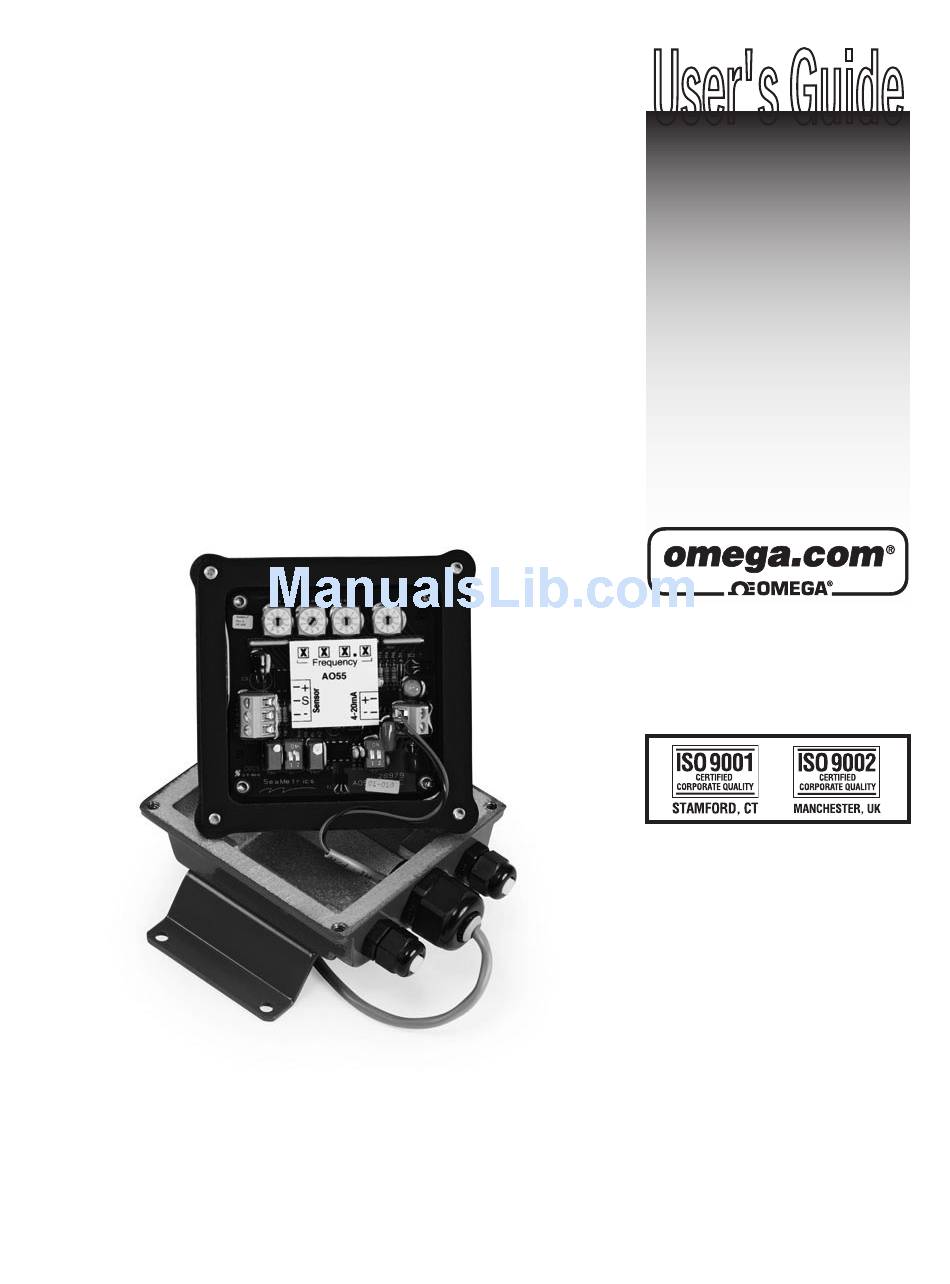

- Page 1 User's Guide Shop online at omega.com email: Info@omega.com For latest product manuals: omegamanual.Info FMG-1000-MAW Blind Analog Transmitter...
-
Page 2: Internet E-Mail
Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification. The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice. -
Page 3: General Information
The clamshell housing is provided with mounting feet for remote mounting. The FMG-1000-MAW will operate on a relatively wide range of current loop voltages, 24 to 36 Vdc. Lower voltages limit the load that can be applied to the loop without distortion of the signal. - Page 4 SETTINGS, CALIBRATION and FREQUENCY SETTINGS Setting Averaging Time. For most applications, this step can Setting Frequency. The FMG-1000-MAW converts a train of be ignored, as the standard setting will work fine. However, when a particularly steady output signal is desired, or in off/on pulses from the flow sensor into a continuous milliAmp large pipe, a larger averaging period may be desirable.
-
Page 5: Troubleshooting
Power Supply supply >20 Vdc may damage the meter due 7-26 Vdc to AC line input voltage fluctuation. at 30 mA max (see WARNING) FMG-1000-MAW TROUBLESHOOTING Problem Probable Cause Try... Break in current loop Check if loop indicator light is on... - Page 6 NOTES...
