HMI5000L Installation Guide
EasyAccess 2.0
The HMI5043DL, HMI5070DL, HMI5097DXL, and HMI5103L come with
EasyAccess 2.0 pre-installed – no activation card necessary.
EasyAccess 2.0 makes remote monitoring of your HMI easy. For more
information on EasyAccess 2.0, please visit the EasyAccess 2.0 section
of the Maple Systems website.

Fusing Requirements

If the display does not come on within two seconds of power up, remove
power. An internal fuse (except 4.3" display models) will prevent damage
if the polarity of the DC power is incorrect. Check wiring to ensure proper
connections and try to power up again
USB Stick Clamp (not on all models)
The USB Stick Clamp prevents a USB stick from disconnecting from the
HMI due to vibration.

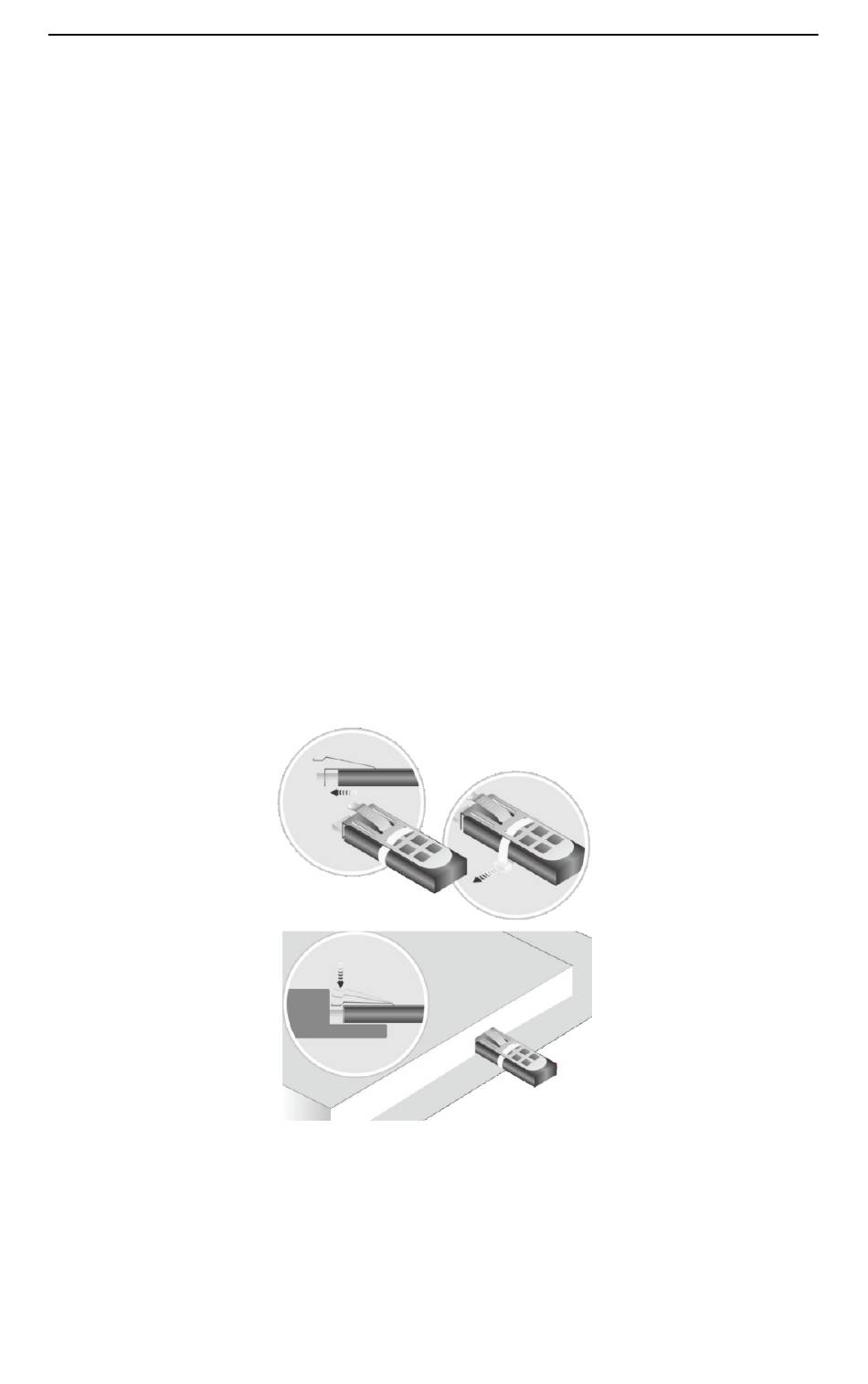

Steps:
1. Insert the USB stick connector into the clamp and secure with the
included zip tie.
2. Press the spring and insert the USB stick into the USB port.
Note: The USB Host port is designed for data storage only. If
connecting a USB hard drive, power the drive with its own power
supply. Do not charge any device from the USB port.
