Maple Systems HMC7057A-M Quick Start Manual

Quick Start Guide
HMC7057A-M
Description:
HMC7057A-M- 320 x240 pixels, 5.7" color TFT, with five
expansion slots
Contents:

1 HMC7057A-M

1 plastic bag containing 4 mounting clamps (each
clamp consisting of cap nut, bolt, and clamp)
 1 three prong green power plug

Cardboard package inserts
 Quick Start Guide
Programming software (MAPware-7000), cables, and power
supply purchased separately.

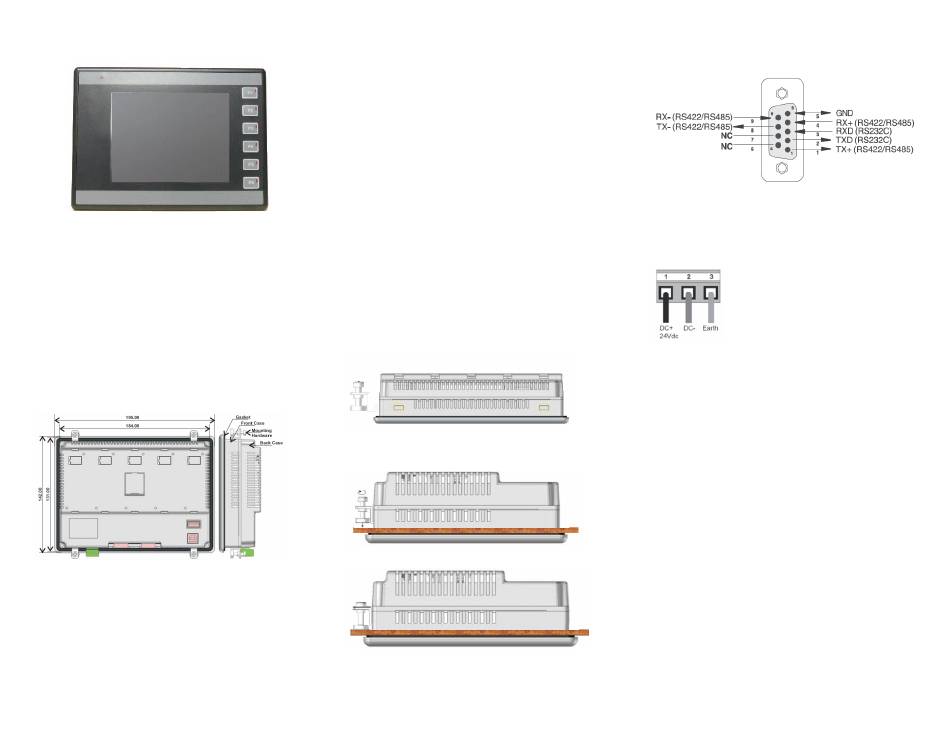

Panel Mounting and Panel Cutout:
Tighten the mounting screws evenly to a torque between 0.6
and 0.7 Nm to maintain water and dust resistance. Make sure
the panel is not dirty and warped and that it is strong enough
to hold the unit.
Note: Maximum panel thickness (on which unit is to be
mounted) should be 6.5mm (tolerance: +0.00mm).
Doc. No. 1011-7057AM
Specifications:
The HMC7057A-M is a combination operator-based HMI
(Human Machine Interface) with built-in PLC (programmable
logic controller) operation. It communicates with external
PLCs over serial communications ports to read/write data. Up
to five I/O expansion modules can be attached.
Power:
Display:
Bezel:
Touchscreen:
Function Keys:
LEDs:
Memory:
Communication:
USB Slave:
USB Host:
Operating Temp:
Humidity:
Dimensions:
Panel cutout:
Mounting Unit to Panel:
Step 1: Place unit into cutout of panel and position mounting
clamps (4) into top/bottom slots of HMC7000 enclosure as
shown above.
Step 2: Tighten clamps evenly to prevent warping. Continue to
tighten until a torque force of 0.6-0.7 nm is obtained.
Step 3: HMC7000 should be aligned evenly with the cutout
with no warping present after clamps are tightened.
Maple Systems Inc., 808 134th Street SW, Suite 120, Everett, WA 98204-7333 • www.maplesystems.com
24VDC + 15%, 5W
5.7" TFT (320x240 pixels)
Color graphics display
NEMA 4 (IP 65) rated keypad
4-wire analog resistive
6 membrane-style
6 on FKeys, 1 Power LED
6 MB Max. Application Memory
Two serial ports (RS232/RS485/RS422)
Upload/download projects
Data storage
0 to 50° C
10% to 90% (non-condensing)
7.68 x 5.59 x 1.97 inches
[195x142x50mm]
7.24 x 5.16 inches
[184x131mm]
Page 1 of 2
Port Details (COM1 and COM2):
DB9S (Female) Connector
Grounding:
The HMC7000 should have a good electrical connection to
earth ground via the power connector for safety and to reduce
electrical noise. The HMC unit should be grounded separately
from other high-power systems.
Note: Do not use a ground connection that has potential
impedance (such as painted screws) or is subject to vibration.
Expansion I/O Modules:
The HMC7057A-M has five expansion slots that you can use to
connect I/O modules. Consult Maple Systems website for a
complete listing of modules currently available.
Rev. 03, 03/03/18
.
