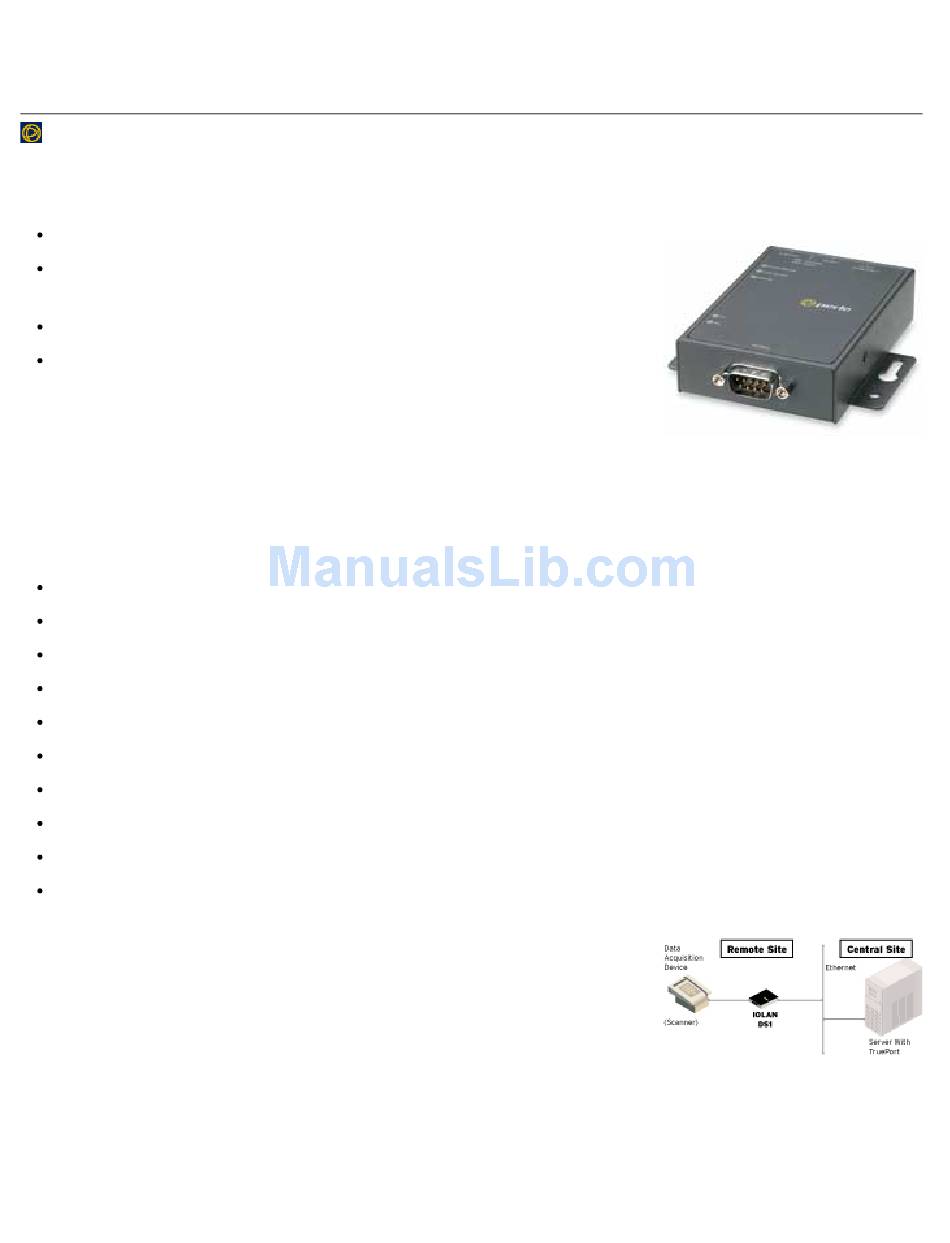

IOLAN DS1 and TS2
perle.com
/products/iolan-ds-terminal-server.shtml
Serial to Ethernet Device Servers
1 or 2 serial Ports
Software selectable RS232/422/485 or fixed RS232 serial port
interface
10/100 or 10/100/1000 Ethernet
Extended temperature model available
The IOLAN DS/TS Device Server is the best choice for simple serial to
Ethernet connectivity applications. Delivering a cost effective solution in a
compact size, the IOLAN DS/TS offers flexibility and advanced
technology making it ideal for applications that require an authentic serial connection across an Ethernet
network. IOLAN DS1 Device Servers are also available with support for
Features and Benefits
TrueSerial®
delivers the most authentic serial connections across Ethernet
Powerful processors for the best throughput and performance on the market
Indicators for network and serial interfaces for easy troubleshooting
Plug & Play installation utility eliminates configuration hassles for all IOLANs on you IP network
TruePort software provides true remote serial ports over an Ethernet LAN
Share a serial port with multiple TCP or UDP servers
Software Development Kit
Power over serial cable models eliminate costs of a separate power installation
Next Generation IP support (IPv6) for investment protection and network compatibility
Compact and protective solid steel enclosure for tabletop, wall mount or DIN rail mounting
Flexible and Reliable Serial to Ethernet Connections
The IOLAN DS/TS is ideal for connecting serial-based COM port, UDP or
TCP socket based applications to remote devices. Perle's
director
provides fixed TTY or COM ports to server based applications
enabling communication with remote devices connected to Perle device
servers. You can also tunnel serial data between devices across an IP
network.
Easy to set up and manage, the IOLAN DS1 has a software selectable RS-232/422/485 interface capability
which simplifies setup and eliminates mechanical tampering associated with DIP switch based products.
Perle's Device Management software, shipped as standard with the IOLAN DS/TS, provides better centralised
control and management of multiple units resulting in maximum uptime for your remote equipment. Protection
available to develop powerful custom applications
TrueSerial®
Extended Temperature
TruePort re-
Ranges.
Advertisement
Table of Contents
Related Manuals for Perle IOLAN DS1
Summary of Contents for Perle IOLAN DS1
- Page 1 You can also tunnel serial data between devices across an IP network. Easy to set up and manage, the IOLAN DS1 has a software selectable RS-232/422/485 interface capability which simplifies setup and eliminates mechanical tampering associated with DIP switch based products.
- Page 2 If the unlikely event occurs that the Perle Device Server does not enable this out of the box, Perle will make it work.
-
Page 3: Console Management
RFC 2217 standard for transport of serial data and RS232 control signals Customizable or fixed serial baud rates Plug-ins allow customer or Perle provided plug-ins for special applications Software Development Kit ( SDK ) available Serial encapsulation of industrial protocols such as ModBus, DNP3 and IEC-870-5-101... - Page 4 OA&M ( Operations, Administration and Management ) SNMP V3* - read and write, Perle MIB Syslog Perle Device Manager - Windows based utility for large scale deployments Configurable default configuration Installation Wizard Set a Personalized Factory Default for your IOLANs...
-
Page 5: Environmental Specifications
Parity Odd, even, Mark, Space, None Flow Control Hardware, Software, Both, None Serial Port 15Kv Electrostatic Discharge Protection ( ESD ) Protection Local Console Port RS232 on Serial Port Network 10-base T / 100-base TX ethernet RJ45 Autosensing 1000-base-T / 100-base TX / 10-base T Auto-MDIX Software selectable Ethernet speed 10/100 Software selectable Ethernet speed... -
Page 6: Regulatory Approvals
MTBF ( Hours ) 124,004 299,680 267,483 254,834 Calculation model based on MIL-HDBK-217-FN2 @ 30 °C Operating 0ºC to 55ºC, Temperature 32ºF to 131ºF Storage -40ºC to 66ºC, Temperature -40ºF to 150ºF Humidity 5 to 95% (non condensing) for both storage and operation. Case SECC Zinc plated sheet metal (1 mm) Ingress Protection... - Page 7 Directive 2011/65/EU restriction of the use of certain hazardous substances in electrical and electronic equipment and meets the following standard:: EN 50581:2012 ECCN - 5A991 HTSUS Number: 8471.80.1000 Perle Lifetime warranty Serial Connector Pinout IOLAN DB9M Socket Direction RS232 RS485 Full Duplex RS485 Half Duplex...
- Page 8 TxD+ DATA+ TxD+ RxD- RxD- TxD- DATA- TxD- IOLAN RJ45 Socket Direction RS232 RS485 Full Duplex RS485 Half Duplex RS422 Power In Power In Power In Power In TxD+ DATA+ TxD+ TxD- DATA- TxD- RxD+ RxD+ RxD- RxD- IOLAN DB25M Socket Direction RS232 RS485 Full Duplex RS485 Half Duplex RS422...
- Page 9 Power In Power In Power In Power In CTS- TxD+ DATA+ TxD+ TxD- DATA- TxD- RTS+ RTS- RxD+ RxD+ RxD- RxD- CTS+ IOLAN DB25F Socket Direction RS232 RS485 Full Duplex RS485 Half Duplex RS422 Sheild Sheild Sheild Sheild...
- Page 10 DATA- TxD- RTS+ Optional Perle adapters for use with straight thru CAT5 cabling Using RAW TCP Sockets A raw TCP socket connection which can be initiated from the serial-Ethernet device or from the remote host/server. This can either be on a point to point or shared basis where a serial device can be shared amongst multiple devices.
-
Page 11: Console Server
Console Management For access to remote console ports on routers, switches, etc, Perle IOLAN’s enable administrators secure access to these RS232 ports via inband Reverse Telnet or out of band with dial-up modems. Perle IOLAN models with integrated modems are available. -
Page 12: Virtual Modem
Tunneling Serial Tunneling between two Serial Devices Serial Tunneling enables you to establish a link across Ethernet to a serial port on another IOLAN. Both IOLAN serial ports must be configured for Serial Tunneling (typically one serial port is configured as a Tunnel Server and the other serial port as a Tunnel Client).
