Connecting the Projector to Other Devices

Connecting to Video Equipment

Connecting to Video
Equipment Using an
S-video, a Composite
Video or an Audio Cable
Using an S-video, video, or audio cable, a VCR,
laser disc player or other audio-visual equip-
ment can be connected to INPUT 3, INPUT 4
and AUDIO (L/R) input terminals.
1
Connect the projector to the
video equipment using an S-
video cable or a composite
video cable (both commercially
available).
2
Connect the projector to the
video equipment using a ø3.5
mm stereo minijack to RCA au-
dio cable (commercially avail-
able).
Note
• The INPUT 4 (S-VIDEO) terminal uses a
video signal system in which the picture
is separated into color and luminance sig-
nals to realize a higher-quality image. To
view a higher-quality image, use a com-
mercially available S-video cable to con-
nect the INPUT 4 terminal on the projec-
tor and the S-video output terminal on the
video equipment.
• A ø3.5 mm stereo minijack to RCA audio
cable (commercially available) is required
for audio input.
-20 -20

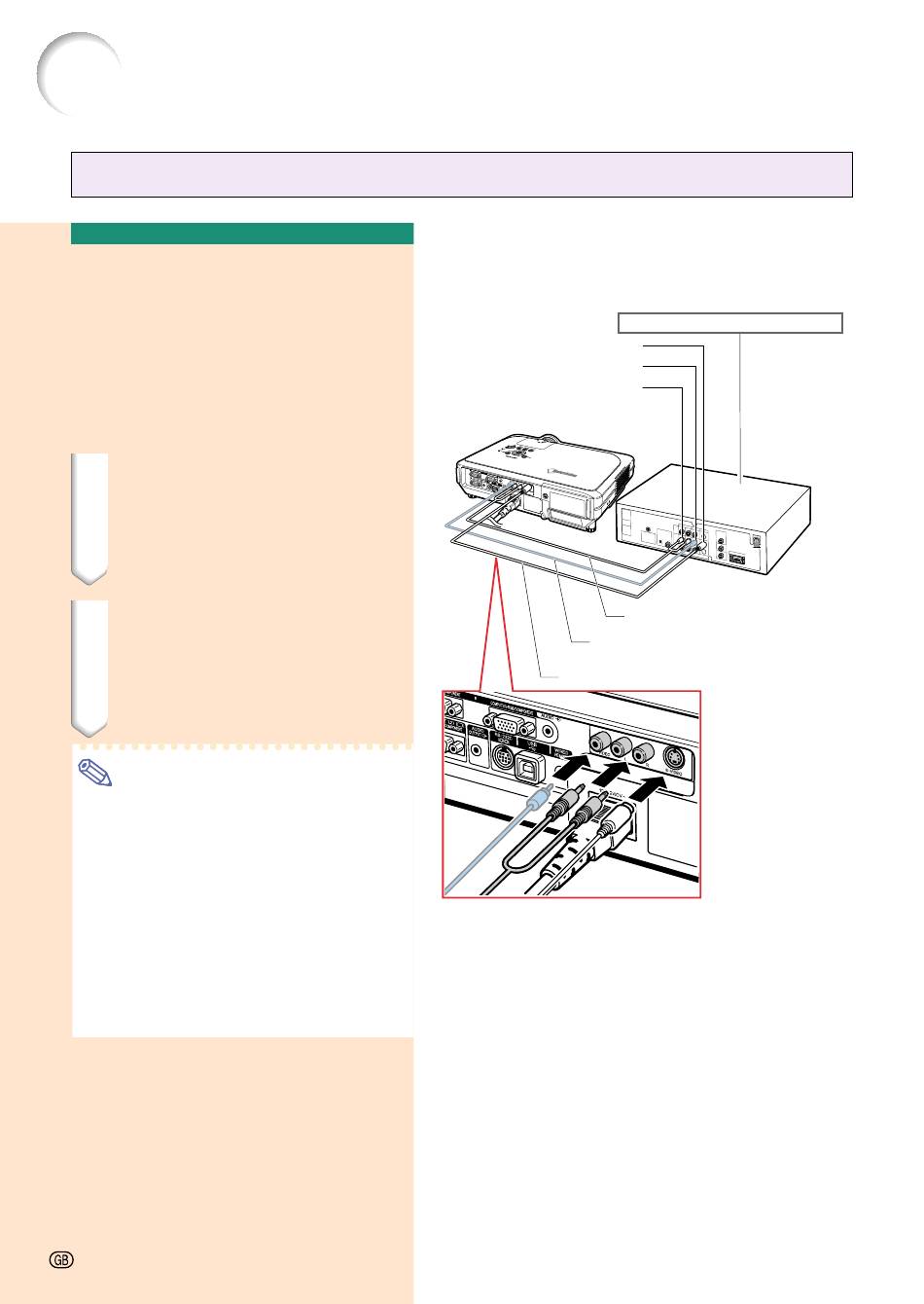

VCR or other audio-visual equipment
To S-video output terminal
To video output terminal
To audio output terminal
2
ø3.5 mm stereo minijack to RCA
audio cable (commercially available)
1
Composite video cable
(commercially available)
1
S-video cable (commercially available)
