Cosmo COS-965AGFC Installation Instructions Manual page 9

Back of Range
a
Power Supply
IMPORTANT: An electrical outlet in the floor, may be either recessed or surface
mounted, but an electrical outlet in the wall must be recessed to make the
connection. For Direct Wiring, the electrical box should be mounted to the wall.
a
24" Model - 232/5" (60 cm)
36" Model - 352/5" (90 cm)
b
111/2" (29.2 cm)
c
6" (15.2 cm)
d
71/4" (18.4 cm)
e
3" (7.6 cm)
* NOTE: 24" (61.0 cm) minimum when bottom of wood or metal cabinet is covered
by not less than ¹/₄" (0.64 cm) flame retardant millboard covered with not less than
No. 28 MSG sheet steel, 0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm) aluminum
or 0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance between the cooking and the bottom of an
uncovered wood or metal cabinet.
8
b
a
b
g
d
e
f
171/2" (44 cm)
g

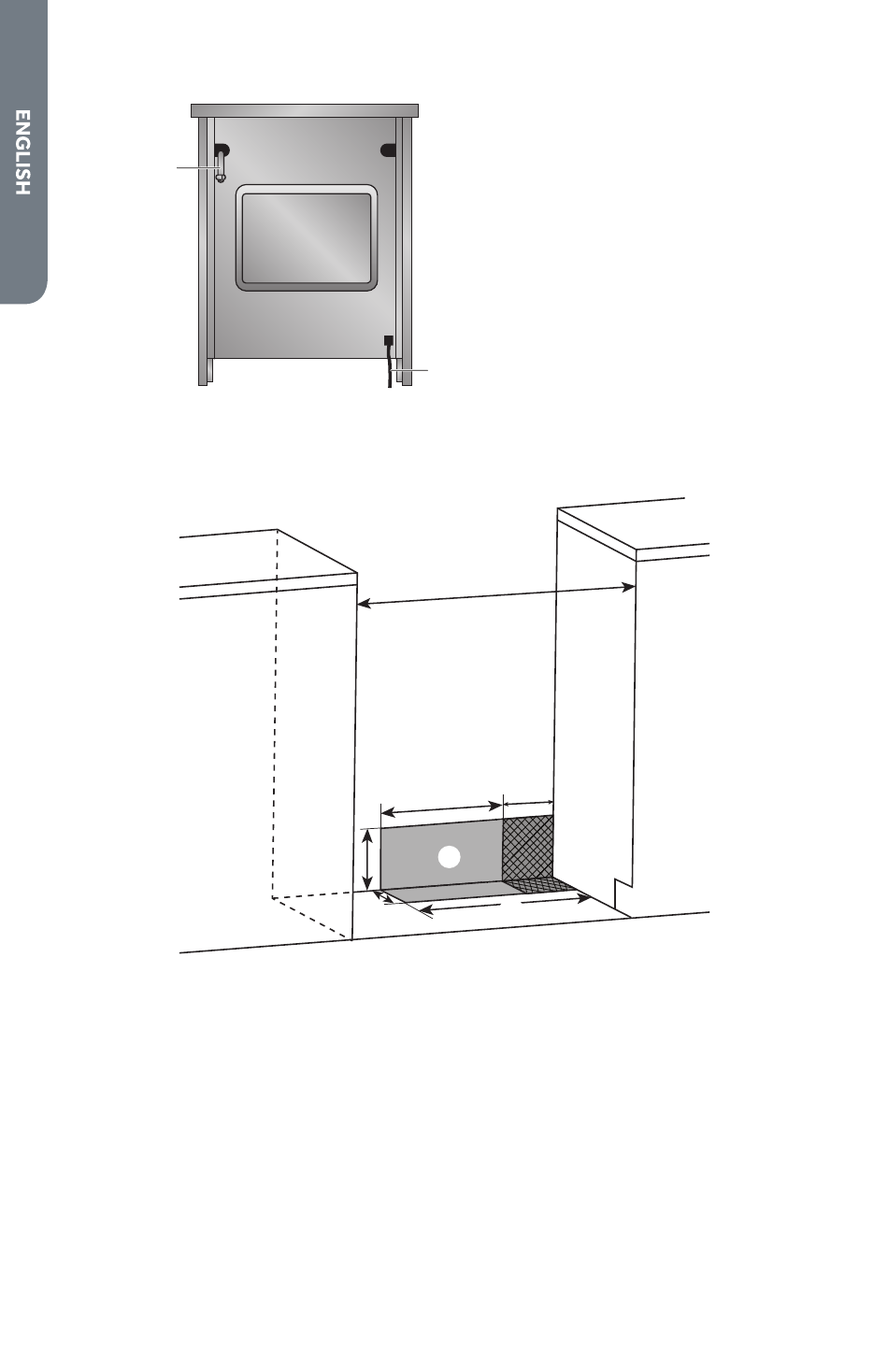

Recommended Location for
Electrical Outlet
h
Recommended Location for
Gas Supply Connection
a
Gas Line from Range
b
Power Cord
c
h
f
